SERVICE and PARTS
MANUAL
SD3 Series
SD3
ML-130232
F45576 (1015)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STERO SD3 Series

Summary of Contents for STERO SD3 Series

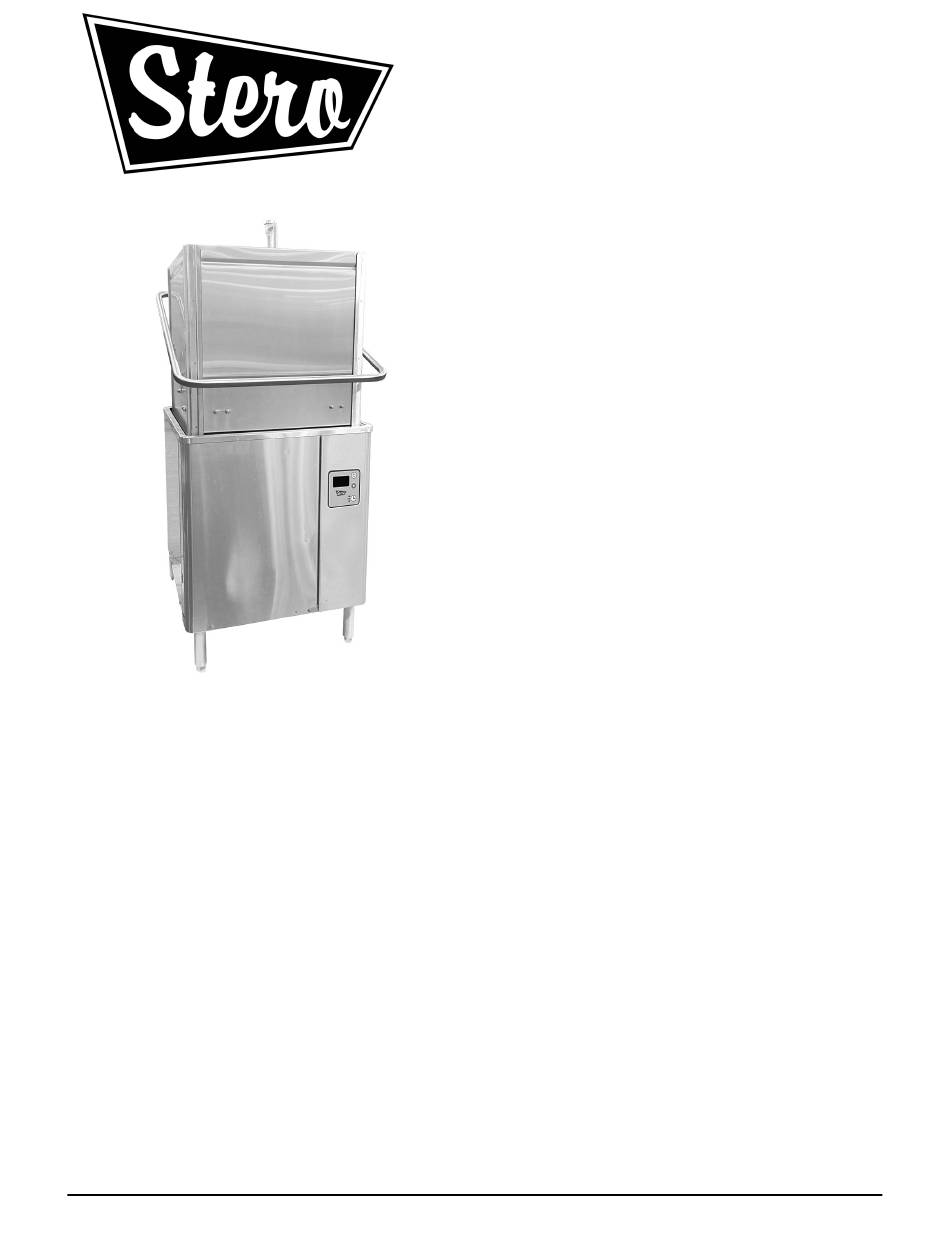

  • Page 1 SERVICE and PARTS MANUAL SD3 Series ML-130232 F45576 (1015)
