- Page 1 BMZ User's Manual remote 14d UM_0006_en_r1...
-
Page 2: Table Of Contents
I.III Explanation of symbols..................................3 I.IV Approved operating conditions / locations............................3 Technical data......................................3 What is the BLOKS. remote 14d?...............................3 Mounting the remote.................................4 Connecting the remote's plug..............................4 Overview of rocker switch and buttons............................5 Using the BLOKS. remote 14d..............................5 Switching on and off, screen explanation..............................5 Display.......................................6... -
Page 3: I.iii Explanation Of Symbols

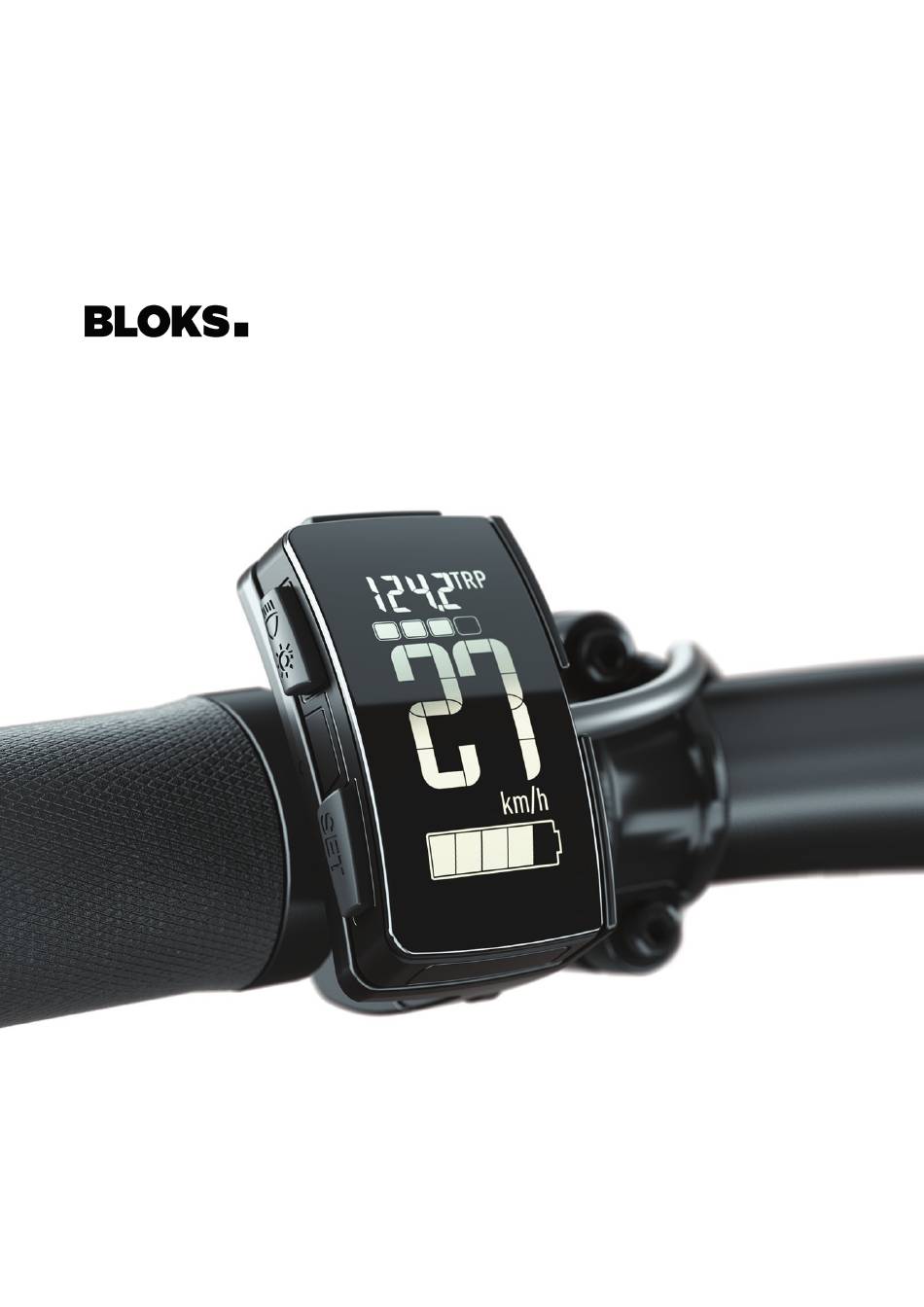

1. What is the BLOKS. remote 14d? The BLOKS. remote 14d is a control unit with an integrated LCD display mounted on the handlebars. Since all important information is shown on the high-contrast, 1.4-inch monochrome LCD, a larger display mounted in the middle of the handlebars is not necessary – the... -
Page 4: Mounting The Remote
2. Mounting the remote The BLOKS. remote is mounted on the left side of your pedelec’s handlebars [Fig. 1]. The entire surface of the LCD display acts as a rocker switch for the settings "+" and "-". The remote also has three buttons;... -
Page 5: Overview Of Rocker Switch And Buttons
4. Overview of rocker switch and buttons The entire display of the BLOKS. remote 14d forms a rocker switch. The display can be pressed at the top for the "+" function and at the bottom for the "-" function. In addition, there are three buttons for "Power", "Light"... -
Page 6: Display
5.2 Display The BLOKS. remote 14d has an LCD (Liquid Crystal Display). The different segments show: 1. Distance or range (see chapter 5.5) 2. Trip (TRP), Range (R) or Odometer (T) (chapter 5.5) 3. Support level (chapter 5.7) 4. Speed (chapter 5.8) 5. -
Page 7: Choice Of Support
5.7 Choice of support You can press "+" and "-" on the rocker switch (chapter 4) of the BLOKS. remote 14d at any time to change the degree of motor support. This will help you and your pedelec make optimal progress in all situations and on all terrains. There are four levels of support and "Off”, which equals level 0, so five levels in all. - Page 8 BMZ User's Manual – BLOKS. remote 14d UM_0006_en_r1 Revision: June 12, 2018 BMZ Batterien-Montage-Zentrum GmbH Am Sportplatz 28 63791 Karlstein Germany Tel.: +49 (0)6188 9956-0 Fax: +49 (0)6188 9956-900 E-Mail: kontakt@bmz-group.com...
