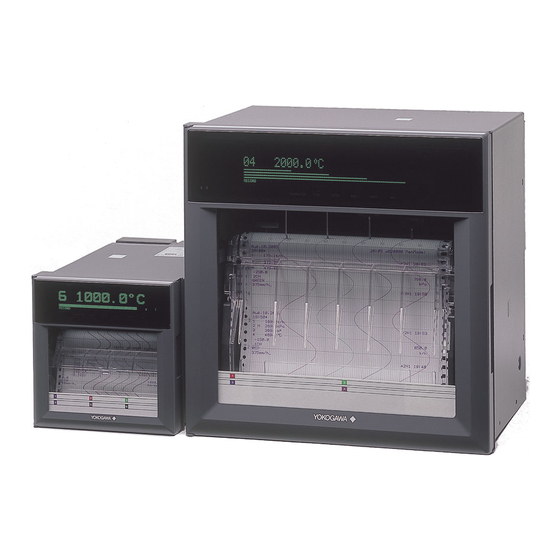

- Page 1 User’s Manual Model 436101/436102/436103/436104/436106/ 437101/437102/437103/437104/437106/ 437112/437118/437124 μR10000/μR20000 SD Memory Card (/EM1 Option) IM 04P01B01-03E 3rd Edition Y okogawa Electric Corporation...
-
Page 3: Introduction
QR Code is a registered trademark of DENSO WAVE INCORPORATED. Trademarks ● All YOKOGAWA product and brand names used in this manual are either trademarks or registered trademarks of Yokogawa Electric Corporation. ● Microsoft and Windows are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries. -
Page 4: Sd Memory Card Handling Precautions
• SD memory cards are delicate and should be handled with caution. • Yokogawa provides no warranty for damage to, or loss of data recorded on the SD memory card, regardless of the cause of such damage or loss. Please always make backup copies of your data. -
Page 5: Recorder Version And Functions Described In This Manual
Recorder Version and Functions Described in This Manual This manual covers version 1.5x of the recorder. Conventions Used in This Manual Unit Denotes 1024. Example: 768K (file size) Denotes 1000. Notes Improper handling or use can lead to injury to the user or damage to the instrument. -
Page 6: Table Of Contents
Contents Introduction ..............................i SD Memory Card Handling Precautions....................ii Recorder Version and Functions Described in This Manual ..............iii Conventions Used in This Manual ......................iii Saving and Replaying Data Using an SD Memory Card ..............1 Saving and Replaying Measured Data ..................... 1 Saving and Loading Setup Data ....................... -
Page 7: Saving And Replaying Data Using An Sd Memory Card
In addition, as with the pen model described below, the measured data saved in an SD memory card can be handled in Universal Viewer. On pen models, you can use YOKOGAWA’s Universal Viewer to show the measured data saved in an SD memory card on the display for verification and printing purposes. -
Page 8: Setting, Removing, And Formatting Sd Memory Cards
Setting, Removing, and Formatting SD Memory Cards Setting an SD Memory Card Procedure Insert an SD memory card in the cart slot. To the slot Slot SD memory card (the side with the contacts on top) The SD memory card becomes available for use. The status display shows the SD memory card status. -
Page 9: Removing The Sd Memory Card
Setting, Removing, and Formatting SD Memory Cards Removing the SD Memory Card Procedure This operation will result in error in the following situations. Moreover, this operation is not possible in Setting mode or Basic Setting mode. • Data is being replayed from the SD memory card on chart paper (dot model). •... -
Page 10: Formatting Sd Memory Cards
Setting, Removing, and Formatting SD Memory Cards Formatting SD Memory Cards Be careful because formatting an SD memory card will delete all the files in it. Procedure Set an SD memory card in the slot. Hold down the key for 3 seconds to enter Setting mode. MENU Hold down the keys simultaneously for 3 seconds to enter Basic... -
Page 11: Configuring To Use Sd Memory Cards
Configuring to Use SD Memory Cards Method of Starting and Stopping Measured Data Saving Set whether to synchronize saving measured data to the SD memory card with the starting and stopping of recording. Procedure Hold down the key for 3 seconds to enter Setting mode. MENU Use the key or SHIFT +... -
Page 12: Setting Parameters For Measured Data Replay (Dot Model)
Configuring to Use SD Memory Cards Setting Parameters for Measured Data Replay (Dot Model) To replay the measured data from the SD memory card on chart paper, use the setting parameters that were used when the data was saved. However, some parameters, such as the chart speed, can be set so that they can be changed during data replay. -
Page 13: Saving Measured Data To An Sd Memory Card
Saving Measured Data to an SD Memory Card Starting and Stopping Data Saving in Sync with the Starting and Stopping of Recording If the condition for starting data saving to the SD memory card is set to Record, the recorder will start and stop saving data to the SD memory card in sync with the starting and stopping of recording on chart paper. -
Page 14: Manually Starting And Stopping Data Saving
Saving Measured Data to an SD Memory Card SD Memory Card Status Display The SD memory card status can be shown on the screen. The screen switches between three displays at every about 3 seconds. For the operating procedure, see section 3.6, “Switching the Display Screen,”... -
Page 15: Starting And Stopping Data Saving With The Remote Control Function
Saving Measured Data to an SD Memory Card Starting and Stopping Data Saving with the Remote Control Function You can start and stop data saving using remote input by assigning the “Data save On/Off” to the remote control input terminal. For the setup procedure, see section 7.18, “Assigning Functions to the Remote Control Input Terminals (/R1 Option),”... -
Page 16: Method Of Starting And Stopping Measured Data Replay
Replaying Measured Data from an SD Memory Card on Chart Paper (Dot Model) Method of Starting and Stopping Measured Data Replay On dot models, measured data in an SD memory card can be replayed and recorded on chart paper. This is not possible when recording or computing is in progress or when data is being saved to the SD memory card. - Page 17 Replaying Measured Data from an SD Memory Card on Chart Paper (Dot Model) Procedure Starting Data Replay The procedure will be explained using an example of replaying data from 19:00 to 21:00 on February 3, 2015, from the file “150203101215_01.RXE.” If you want to change the setting parameters for data replay, change them in advance.
- Page 18 Replaying Measured Data from an SD Memory Card on Chart Paper Stopping Data Replay To stop data replay from the SD memory card on chart paper, follow the procedure below. Press the key. FUNC Press the key to display Data replay, and press the key.
-
Page 19: Saving And Loading Setup Data
Saving and Loading Setup Data You can save the recorder’s setup data to an SD memory card and load setup data from an SD memory card. Saving Setup Data To save the recorder’s setup data to an SD memory card, follow the procedure below. Procedure Hold down the key for 3 seconds to enter Setting mode. -
Page 20: Loading Setup Data
Saving and Loading Setup Data Loading Setup Data To load setup data from an SD memory card into the recorder, follow the procedure below. Procedure Loading Only the Settings of Setting Mode Hold down the key for 3 seconds to enter Setting mode. MENU key or SHIFT + key to show Aux, and then press the... - Page 21 Saving and Loading Setup Data Use the key or SHIFT + key to select the setup data range, and then press the key. Setup+Set: Loads the settings of Basic Setting mode and Setting mode. Setup: Loads the settings of Basic Setting mode. To execute loading, press the key.
-
Page 22: Operation Using Communication Commands
Operation Using Communication Commands Communication commands are available. For details on how to use them, see the μR10000/ μR20000 Communication Interface User’s Manual (IM 04P01B01-17E). Type Command Function Notes Name Setting commands VE Sets data saving start and stop settings. Selects the settings for data replay.
