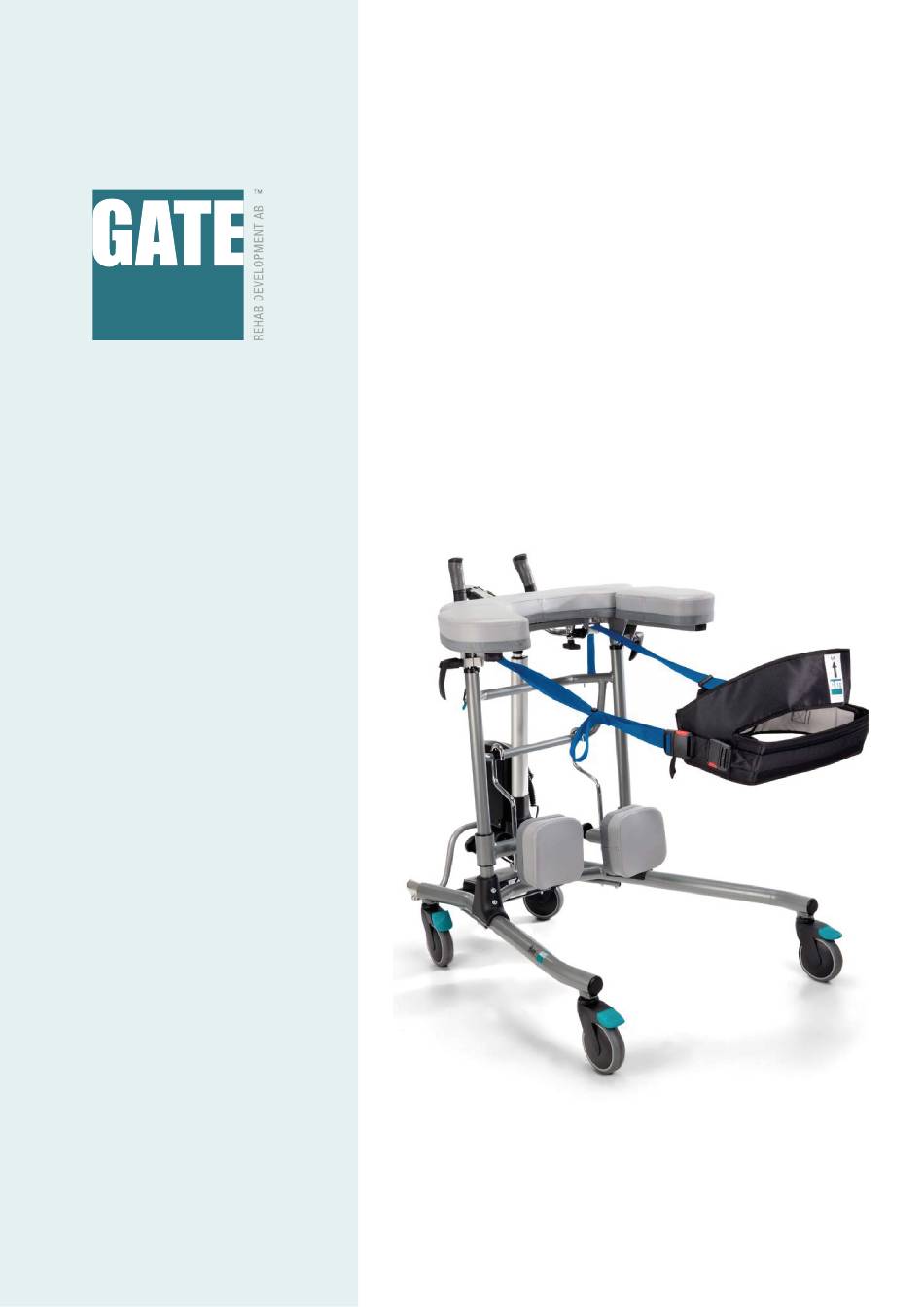

- Page 1 A DIRECT HEALTHCARE GROUP COMPANY Bure Rise & Go Technical Manual G AT E R D . S E...
- Page 2 BU R E RI SE & G O G ATE RD .SE...
-
Page 3: Table Of Contents

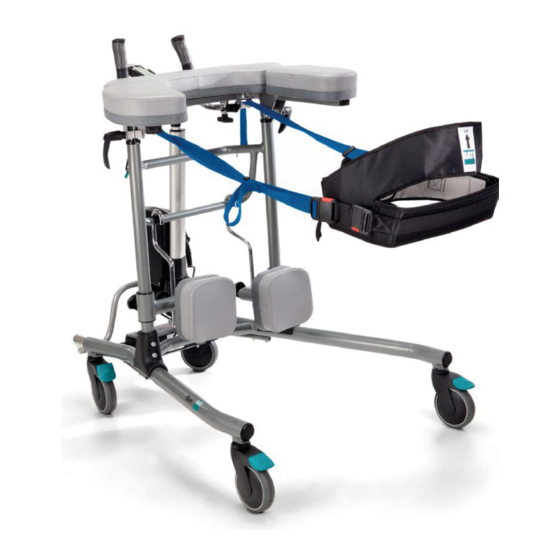

TEC HN I CAL MANU AL Bure Rise & Go Bure Rise & Go is a complete walking aid with the possibility of moving patients as well as simple, stable and safe raising. The solution is based on a newly developed harness that is attached to the Bure Walking Table whose electrically driven height adjustment helps the patient from sitting to standing. -
Page 4: Replacement Parts List
BU R E RI SE & G O 1. Replacement parts list 58-306-L Arm rest, left 16 58-313 Lower frame 58-304-L/R Support for arm rest, left, right 17 58-302 Bushing, PA6 57-352 Lock lever 18 57-710 Knob, hook adjustment, L=27 58-305 Arm rest plate, centre section 19 57-839... - Page 5 TEC HN I CAL MANU AL 58-328 Heel strap 56-061 Remote control PLUS (TH10) including Holder 57-365 Armrestpad center, PUR 57-366-L/R Armrestpad left/right, PUR G ATE RD .SE...
-
Page 6: Electrical System - Technical Data
BU R E RI SE & G O 3. Elsystem - Tekniska Data Actuator Manufacturer T-Motion Voltage Lifting power 2000N Traction 2000N Interlock on lift 1000N Amperage 4.6A Colour Black Stroke 400mm Min installation dimensions 605 mm retracted length Protection class IP66 IEC60601-1 issue 3 Control box + battery... -
Page 7: Control Box Wiring
TEC HN I CAL MANU AL 5. Control box wiring Remove the control box cover to make the connections as described below. Use a screwdriver or similar; refer to the special labels on the control box. NOTE: Make sure that plugs are connected to the correct sockets otherwise the actuators can be damaged. -
Page 8: Maintenance
BU R E RI SE & G O 8. Maintenance Recommended at least once per year. Check that Action General The walker feels firm/free from play. Clean with lukewarm soap solution The walker does not rattle during manoeuvres. (no petroleum products). The walker is level and all of its castors are in contact with the floor. -
Page 9: General Safety/Maintenance Advice
TEC HN I CAL MANU AL Castors/brakes Castors roll easily. Clean or replace castors (NOTE! Castors are Tread not damaged. always fixed to the lower frame with thread locker The castors are tightly fastened to the lower frame. or lock nuts. The castors are sealed and we do not Castor brakes functional on all castors. -
Page 10: Recycling/Scrapping
Gate Rehab Development AB Industrigatan 2, S-330 21 Reftele tel 0371-318 00 info@gaterd.se A DIRECT HEALTHCARE GROUP COMPANY 13. Technical specifications Dimensions apply to walkers with 125 mm castors. Part no. Product width Max user weight Length Height Weight Armrest/internal dimension... - Page 11 TEC HN I CAL MANU AL G ATE RD .SE...
- Page 12 A DIRECT HEALTHCARE GROUP COMPANY Gate Rehab Development AB Industrigatan 2 Reftele, Sverige S-330 21 T: 0371-318 00 F: 0371-318 01 E: info@gaterd.se LIT-00104 Issue 1 Date: January 2020 G AT E R D . S E...
