OPERATION AND PARTS MANUAL
Pik Rite Inc.
Phone 800-326-9763
60 Pik Rite Lane
Fax 570-523-8175
Lewisburg, PA 17837
SEPTEMBER 2020
www.pikrite.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pik Rite HP 380 and is the answer not in the manual?

Questions and answers

Related Manuals for HYDRA-PULL Pik Rite HP 380

Summary of Contents for HYDRA-PULL Pik Rite HP 380

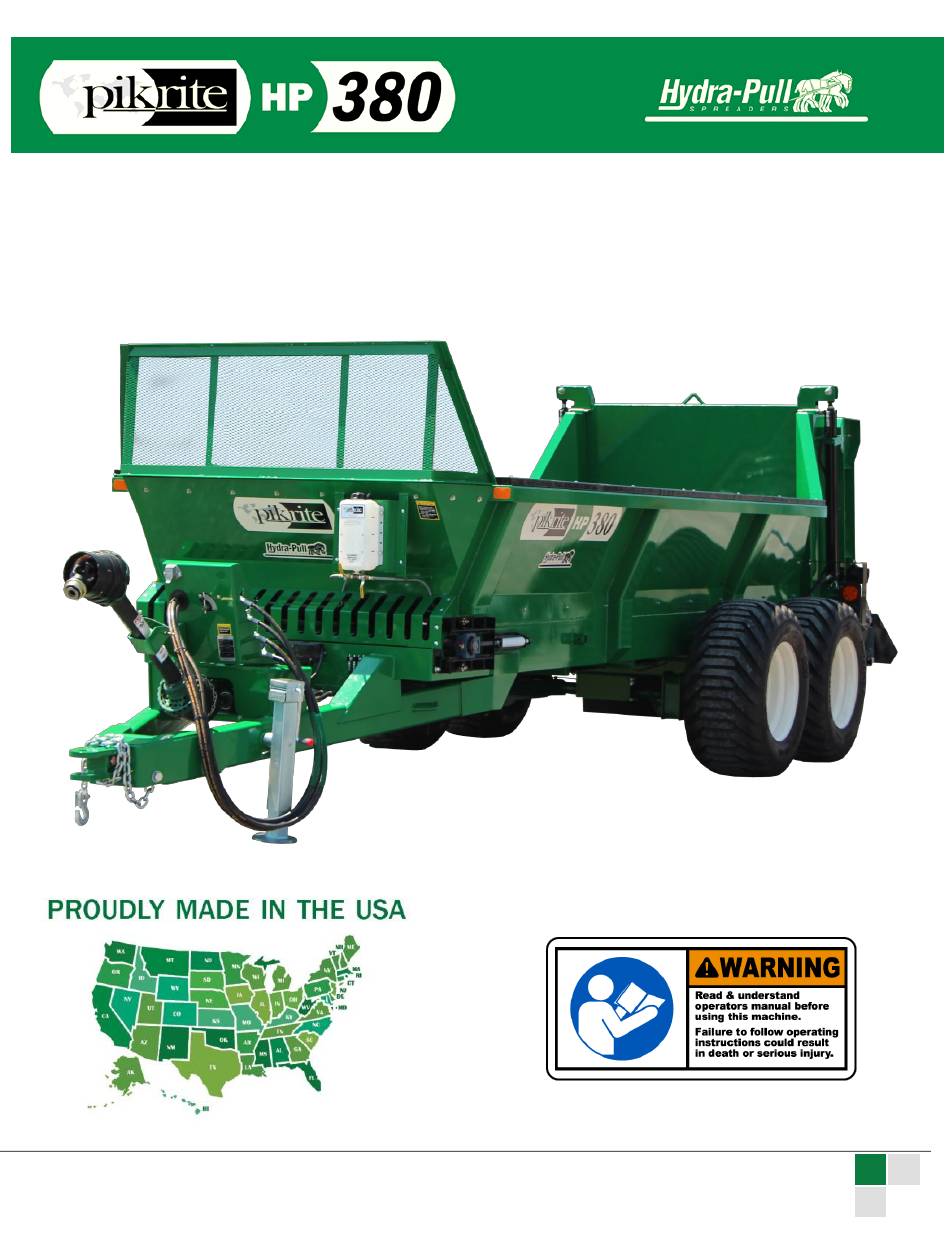

  • Page 1 OPERATION AND PARTS MANUAL Pik Rite Inc. Phone 800-326-9763 60 Pik Rite Lane Fax 570-523-8175 Lewisburg, PA 17837 SEPTEMBER 2020 www.pikrite.com...
  • Page 2 Some illustrations may not represent the spreader model you have; however, the principles of operation and maintenance are the same. If you have questions specific to your spreader please contact your dealer. SPECIFICATIONS AND DESIGN SUBJECT TO CHANGE WITHOUT NOTICE | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 3 TABLE OF CONTENTS OPERATION MANUAL INTRODUCTION SAFETY PREPARING THE TRACTOR PREPARING THE SPREADER CONTROLS ATTACHING THE SPREADER DETACHING THE SPREADER TRANSPORT OPERATING THE SPEADER LUBRICATION AND MAINTENANCE SPECIFICATIONS PARTS MANUAL 74419-1-01 MAIN FRAME AND PANELS 74418-1-02 STONE GUARD 74419-1-03 GUILLOTINE ENDGATE 74418-1-04 WALKING BEAM 74418-1-05...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 74418-2-04 WEB CHAIN DRIVE WEB CHAIN GEARBOX AND MOTOR 74418-2-05 74418-2-06 REAR DRIVELINE WITH CLUTCH 74418-2-06A OPT. REAR DRIVELINE, COMPOST 74418-2-07 GEARBOX, VERTICAL BEATERS 74418-2-08 GEARBOX, COMPOST BEATERS 74418-2-09 GEARBOX, COMPOST BEATERS, SIDE 74419-3-01 WEB DRIVE HYDRAULICS 74419-3-02 ENDGATE HYDRAULICS 74419-3-03...
  • Page 5 TABLE OF CONTENTS Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 6 | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 7 Rite Inc. We believe you’ll be very satisfied with the purchase, and we appreciate your patronage. PRINCIPLES OF OPERATION The Hydra-Pull series features heavy duty components throughout the entire spreader. With a pintle chain breaking strength of 60,000 lbs, a rugged steal box design, and poly board flooring for maximum strength and durability, this machine is designed to efficiently and uniformly spread manure.
  • Page 8 OPERATION MANUAL SAFETY RECOGNIZE SAFETY INFORMATION This is the safety-alert symbol. When you see this symbol on your machine or in this manual be alert to the potential of physical injury. Obey all safety messages that follow this symbol to avoid possibly injury or death.
  • Page 9 SAFETY REPLACE SAFETY LABELS Keep safety labels in good condition. Replace missing or damaged safety labels. Be sure new equipment components and repair parts include the current safety labels. Replacement safety labels are available from your Pik Rite dealer (See “Front Decals” and “Side Decals” in the Parts Manual for part numbers.) Pik Rite Inc.
  • Page 10 SAFETY KEEP SHIELDS IN PLACE Do not operate spreader without safety shields in place. Rotating parts can crush or dismember causing death or personal injury. Disconnect PTO driveline and hydraulic lines from tractor before removing shields for adjustment or service. PROTECT BYSTANDERS Never operate the spreader near people.
  • Page 11 SAFETY KEEP RIDERS OFF MACHINE Riders are subject to injury such as being struck by foreign objects and being thrown off the machine. Riders also obstruct the operator’s view resulting in the machine being operated in an unsafe manner PARK SPREADER SAFELY Park spreader on a level surface and block wheels.
  • Page 12 SAFETY OPERATE SPREADER SAFELY Rotating parts can entangle or strike people, resulting in death or personal injury. Never enter a spreader while in operation. Operate the spreader from the tractor seat only. Do not exceed load capacity of the spreader. (See Transport section) Reduce speed when turning or traveling on rough terrain.
  • Page 13 SAFETY AVOID HIGH-PRESSURE FLUIDS Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high pressure fluids.
  • Page 14 PREPARING THE TRACTOR APPROVED TRACTORS, MODEL HP380 Row Crop Tractors with 100 HP PTO rating or larger are approved for operation with the HP380 Spreader. Utility Tractors are NOT APPROVED because of drawbar weight limitations and the inability to ballast the tractor enough to meet requirements for towing.
  • Page 15 PREPARING THE TRACTOR POSITIONING DRAWBAR Tractor PTO and machine driveline can be damaged. Be sure drawbar length is properly set. If equipped with clevis, remove it. Lock drawbar along tractor centerline with offset down. Remove clevis if equipped. PTO Speed Dimension (A) Adjust drawbar length (A) to help prevent driveline damage.
  • Page 16 Be sure the machine has been adequately lubricated. (See Lubrication and Maintenance page.) BRAKE ADJUSTMENT (HYDRAULIC) (Contact your Hydra-Pull Dealer for available brake kit) TIGHTENING WHEEL HARDWARE Operating the spreader with loose wheel hardware will damage the hub or wheel. Tighten hardware after initial transport, after one hour of operation and every fifty hours thereafter.
  • Page 17 CONTROLS OPERATING THE BEATER To start beater, engage PTO lever slowly, at low engine rpm. To stop beater, disengage PTO. (See your tractor’s Operator’s Manual) For best spreading results, operate the tractor engine at “PTO RATED” speed. Do not operate the apron chain without running the beaters as this may damage the spreader. OPERATING THE ENDGATE Contact of apron chain running with endgate closed will cause damage.
  • Page 18 ATTACHING THE SPREADER ATTACHING THE SPREADER Help prevent personal injury caused by unexpected movement of the machine. Engage parking brake and/or place transmission in “PARK”, shut off engine, and remove key before working around hitch. 1. Attach with a 1-1/2 in. pin and secure. Shorten safety chain to allow only enough slack required for turning.
  • Page 19 DETACHING THE SPREADER DETACHING SPREADER 1. Secure jack stand in lift position 2. Detach safety chain 3. Remove hitch pin 4. Disconnect hoses. Store on spreader DETACHING DRIVELINE 1. Support driveline (A) and pull rearward on collar (C) to release driveline from tractor PTO (B). 2.
  • Page 20 Check local governmental regulations. Keep safety items in good condition. Replace missing or damaged items. (Contact your Hydra-Pull Dealer for available lighting kit) TOWING LOADS Braking to stop towed loads from transport speeds can cause the towed load to swerve and upset.
  • Page 21 TRANSPORT RECOMMENDED MAXIMUM TOWING SPEED Tractor Weight **** (0-2997 lb) Do Not Tow Do Not Tow Do Not Tow Do Not Tow (2998-5950 lb) Do Not Tow Do Not Tow Do Not Tow Do Not Tow (5951-11021 lb) Do Not Tow Do Not Tow Do Not Tow Do Not Tow...
  • Page 22 OPERATING THE SPREADER PREOPERATING CHECKS 1. Be sure spreader does not contain any foreign objects 2. Check for correct hydraulic hookup. Raise endgate fully. Engage beaters, engage apron chain 3. Disengage apron chain, disengage beaters 4. Close endgate LOADING THE SPREADER Do not place rocks, timbers, or other solid objects in the spreader.
  • Page 23 OPERATING THE SPREADER RAISE ENDGATE Contact of apron chain with endgate will cause damage. To avoid contact with apron chain, endgate must be raised fully. The endgate closes off the back end of the spreader to contain manure with high liquid content. The endgate also prevents solid material from being piled tight against the beater.
  • Page 24 OPERATING THE SPREADER CLEAN WALKING BEAM When tire valve stems are mounted towards the inside, clean top of walking beams to prevent valve stem damage. WARMING HYDRAULIC OIL TEMPERATURES BELOW 0F (–18C) It is necessary to warm the hydraulic oil for proper spreader operation.
  • Page 25 LUBRICATION AND MAINTENANCE LUBRICATING AND MAINTAINING SPREADER Help prevent personal injury caused by unexpected movement of the machine. If spreader is connected to tractor, disengage PTO, engage parking brake and/or place transmission in “PARK”, shut off engine, and remove key. If spreader is detached, block wheels and use safety stands.
  • Page 26 LUBRICATION AND MAINTENANCE EVERY 50 HOURS SERVICE INTERVALS  Adjust apron chain  Change gearbox lubricant every 6,000 loads Tighten wheel hardware Lubricate walking beam pivots EVERY 8 HOURS EVERY 250 HOURS  Lubricate driveline  Check gear case oil level ...
  • Page 27 LUBRICATION AND MAINTENANCE CHECK GEAR CASE OIL LEVEL With spreader on level ground, check oil level at the sight glass on the center gearcase “A” Add recommended oil as needed. (See Selecting Gear Case Oil) To add oil, remove fill cap at the top of the gearcase “B” GREASE TOP BEATER BEARINGS Grease the two bearings at the top of the vertical beaters every 8 hours of operation.
  • Page 28 LUBRICATION AND MAINTENANCE LUBRICATE WALKING BEAM PIVOTS 1. Place a jack under the spreader main frame. 2. Raise spreader enough to relieve weight from walking beam. 3. Lubricate grease bank (A) with Moly High Temperature/Extreme Pressure Grease. TIGHTENING WHEEL HARDWARE Operating the spreader with loose wheel hardware will damage the hub or wheel.
  • Page 29 LUBRICATION AND MAINTENANCE LUBRICATE THE SIX PILLOW BLOCKS Located under the spreader, they carry the main power shaft, using central grease location Lubricate grease fitting with Moly High Temperature/Extreme Pressure Grease LUBRICATE WALKING BEAMS Using grease banks attached to the rear fenders (two on each side). MAINTAINING SLIP CLUTCH, WALTERSCHEID The clutch is preset and is not field adjustable If you determine that your slip clutch needs maintenance...
  • Page 30 SPECIFICATIONS TRACTOR SIZE Minimum recommended 100 hp PTO WEIGHT Spreader, Complete with Implement tires And all Attachments 11,500 lb LOAD CAPACITY 11.5 tons VOLUME CAPACITY Struck Level 276 cu. ft. Heaped Load 427 cu. ft. With Side Extensions adds 99.5 cu. ft / 80 bu BEATER SPEED 420 rpm UNLOADING SPEED...
  • Page 31 PARTS MANUAL DIRECTION ARROWS ARROWS ARE USED WITH ILLUSTRATIONS TO INDICATE THE FRONT OF THE UNIT. “RIGHT-HAND” AND “LEFT-HAND” SIDES ARE DETERMINED BY FACING THE DIRECTION OF MACHINE FORWARD TRAVEL. REFERENCE NUMBER IDENTIFICATION REF NO. DESCRIPTION 000-099 PARTS USED FOR ASSEMBLY 100-199 BOLTS AND FASTENERS 200-299...
  • Page 32 | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 33 74419-1-01 MAIN FRAME AND PANELS PART DESCRIPTION WILL FIT SN REMARKS PR70350 HP380 Main Frame PR70272 Poly Floor Board, RH PR70273 Poly Floor Board, HP380, HP500 PR70274 Poly Floor Board, LH PR70295 Bumper, Bottom Rail, HP380, HP500 PR70396 Bumper, Top Rail Poly PR70307 Front Floor Trim PR70097...
  • Page 34 74419-1-01 MAIN FRAME AND PANELS | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 35 74419-1-01 MAIN FRAME AND PANELS Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 36 74418-1-02 STONE GUARD PART DESCRIPTION WILL FIT SN REMARKS PR70385 Rock Guard BL-6-100-C 3/8-16 X 1 CARRIAGE BOLT G5 ZC BL-6-SW 3/8 SAE FW ZC BL-6-LW 3/8 SPLIT LW ZC BL-6-N 3/8-16 HEX NUT ZC | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 37 74419-1-03 GUILLOTINE ENDGATE PART DESCRIPTION WILL FIT SN REMARKS PR70381 Guillotine Gate, 48' Stroke PR70282 Gate Belting PR70284 Belting Bar PR70453 INDICATOR, ENDGATE HEIGHT PR70366 Measuring Stick, 380 DC-0123 Ruler Decal, HP500, Tailgate Opening BL-6-150-H 3/8-16 X 1-1/2 HEX CAP G5 ZC BL-6-350-C 3/8 UNC X 3 1/2 CARRIAGE BOLT GR5 ZINC BL-6-LN...
  • Page 38 74418-1-04 WALKING BEAM PART DESCRIPTION WILL FIT SN REMARKS WHL-8120 Rocker, LH WHL-8119 Rocker, RH PIN-8115 Rocker Pin, HP380 A-1501-2-2 1/8' MP x 1/8' FPX90ｰ A-1503-2-2 1/8' MP x 1/8' FPX 45ｰ GF-4-4 4' Grease Manifold GF-1827-45 Grease Fitting 1/8 NPT 45ｰ H2-90-2MP-2MP 1/8 in Hose x 1/8MP x 1/8MP x 90in H2-70-2MP-2MP...
  • Page 39 74418-1-05 HUBS AND SPINDLES PART DESCRIPTION WILL FIT SN REMARKS Hub Assembly Complete (includes spindle), WHL-3000 Harvesters use WHL-3000-2 Painted Black BL-10-600-H 5/8-11 X 6 HEX CAP G5 ZC BL-10-LN 5/8-11 HEX LN NE ZC Wheel Bearing Kit for WHL-3000 Hub & Spindle WBR-3000K WHL-3000 Assy.
  • Page 40 74418-1-06 TIRES AND WHEELS, 425/65R22.5 TRUCK TIRES PART DESCRIPTION WILL FIT SN REMARKS WHM-7109 425/65R22.5 Tire & Wheel Assy, 8 Lug WHT-7105 Used Truck Tire 425/65R22.5 WHL-7106 22.5 X 11.75 Wheel 8-8-6 3/8' positive offset 74418-1-06A OPT. TIRES AND WHEELS, 500/50R22.5 PART DESCRIPTION WILL FIT SN...
  • Page 41 74418-1-06B OPT. TIRES AND WHEELS, 16.5-16.1 IMPLEMENT TIRES PART DESCRIPTION WILL FIT SN REMARKS WHL-1614 16 x 14 Wheel 8-8-6 (3/8 Positive Offset) 16.5-16.1 Tire & Wheel Assembly (Spreader, WHM-1514 Tubeless) 16.5 x 16.1 14 Ply Ribbed Implement Tire WHT-1614 (Spreader, Tubeless) Pik Rite Inc.
  • Page 42 74418-1-07 OPT. WEIGHT SCALE SYSTEM, NT460 PART DESCRIPTION WILL FIT SN REMARKS SWS-4604-003 Indicator, W/AutoLog, NT460 SWS-4605-001 Cell, dia 2.875 DB -21 PR90012 Spindle Scale Bushing SWS-4606-001 Cell-3.75 SA-21FT-16K Hub WHL-1210-LCS Wheel Hub Seal, Load Cell Spindle Seal WHL-1210-HC Complete Hub For WHL-1210, No Spindle WHL-1210H Washer, Spindle WHL-1210G...
  • Page 43 74419-1-07 OPT. WEIGHT SCALE SYSTEM, DG400 PART DESCRIPTION WILL FIT SN REMARKS DG400 Slim Box w/ Isobus, Weigh Scale Display SWS-1001 Module SWS-1002 Load Cell, 2-7/8' Dia SWS-1003 Spindle Load Cell, 4' Dia. WHL-1210-LCS Wheel Hub Seal, Load Cell Spindle Seal WHL-1210-HC Complete Hub For WHL-1210, No Spindle WHL-1210H...
  • Page 44 74419-1-08 MAIN FRAME BELTING PART DESCRIPTION WILL FIT SN REMARKS PR70314 Belting, Front PR70280 Belting Bar PR70336 Belting, Bottom Rear PR70337 Belting Bar, Rear PR70301 Rear Belting, HP 500 PR70303 Backing Bar BL-6-125-C 3/8-16 X 1-1/4 CARRIAGE BOLT G5 ZC BL-6-150-C 3/8-16 X 1-1/2 CARRIAGE BOLT G5 ZC BL-6-350-C...
  • Page 45 74419-1-08 MAIN FRAME BELTING Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 46 74418-2-01 FRONT DRIVELINE, 1-3/8” PART DESCRIPTION WILL FIT SN REMARKS PTS-1015 Driveline, Spreader, 1-3/8-21, 2500 Series Replaces PTS-1008 PTS-1015A Yoke ASG PTS-1015B Cross & Bearing Kit PTS-3001-Y Double Yoke End PTS-1008C Zerk, Double Yoke Special Order Only PTS-1015C Inboard Yoke S4 PTS-1015D Cross &...
  • Page 47 74418-2-01 FRONT DRIVELINE, 1-3/8” Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 48 74418-2-01A OPT. FRONT DRIVELINE, 1-3/4” PART DESCRIPTION WILL FIT SN REMARKS PTS-1016FH Driveline, 1-3/4 -20, Front Half Only Driveline, 1-3/8-21, Rear Half Only (Star)Rear PTS-1015RH couple 1-3/4-20 PTS-1015B Cross & Bearing Kit PTS-3001-Y Double Yoke End PTS-1008C Zerk, Double Yoke Special Order Only PTS-1015C Inboard Yoke S4...
  • Page 49 74418-2-01A OPT. FRONT DRIVELINE, 1-3/4” Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 50 74418-2-01B OPT. FRONT DRIVELINE, COMPOST, 1-3/8” PART DESCRIPTION WILL FIT SN REMARKS Driveline, 1-3/8"-21 Spline, PWE580 HD Complete PTS-1024 Front Shaft PTS-1021Q Yoke, 1-3/8 21 Spl. ASG PTS-1021B Cross & Bearing Kit Special Order Only PTS-1005B Double Yoke Special Order Only PTS-1021C Inboard Yoke S5 Special Order Only...
  • Page 51 74418-2-01B OPT. FRONT DRIVELINE, COMPOST, 1-3/8” Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 52 74418-2-01C OPT. FRONT DRIVELINE, COMPOST, 1-3/4” PART DESCRIPTION WILL FIT SN REMARKS PTS-1025 Driveline, 1-3/4"-20 Spline, PWE580 HD Shaft PTS-1021A Yoke, 1-3/4"-20 Spl. ASG PTS-1021B Cross & Bearing Kit Special Order Only PTS-1005B Double Yoke Special Order Only PTS-1021C Inboard Yoke S5 Special Order Only PTB-1014C Spring Pin 10 X 75...
  • Page 53 74418-2-01C OPT. FRONT DRIVELINE, COMPOST, 1-3/4” Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 54 74418-2-02 MAIN DRIVE SHAFT PART DESCRIPTION WILL FIT SN REMARKS PR70269 Hose Mount EL-0041 2' ID Grommet, 3.5' x 3/16' cutout PR70087 PTO Holder PR70294 Drive Shaft Shield PR70354 Hand Guard PR70332 Main Drive Shaft, 200.25 OA Length BR-085-RAK Bearing Housing 85 mm Bearing, 1 ｾ' ID, TS BR-175-085-I A-1501-2-2...
  • Page 55 74418-2-02 MAIN DRIVE SHAFT Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 56 | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 57 74418-2-03 VERTICAL BEATERS PART DESCRIPTION WILL FIT SN REMARKS PR70373 Beater Panel, LH PR70374 Beater Panel, RH VTB-1899-P2 Gearbox, 1000 rpm VTB-0053 Beater, LH VTB-0054 Beater, RH PR70259 Beater Pan PR70278 Mount, Beater Pan PR70083 Beater Bearing Plate PR70096 Cover, Bearing Plate 1190VB: 71113001- VTB-1899-F3...
  • Page 58 74418-2-03 VERTICAL BEATERS PART DESCRIPTION WILL FIT SN REMARKS BL-10-200-H8 5/8-11 X 2 HEX CAP G8 ZC BL-10-LN 5/8-11 HEX LN NE ZC BL-10-LNS 5/8-11 STOVER LN BL-10-FW-8 5/8 FW G8 BL-12-200-8 3/4-10 X 2 HH C/S G8 ZC BL-12-FW-8 3/4 FW G8 BL-12-LN 3/4-10 LN w/ NYLON INSERTS...
  • Page 59 74418-2-03 VERTICAL BEATERS Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 60 | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 61 74420-2-03A OPTIONAL COMPOST BEATERS, HYDRAULIC PANELS PART DESCRIPTION WILL FIT SN REMARKS VTB-CMP-2200-H PTO Shaft, Side VTB-CMP-2200-D Bottom Gearbox, 1840mm, 850mm Spinner Centers VTB-CMP-2200-C Side Gearbox, Beaters VTB-CMP-2113 Horizontal Beater Assy. VTB-CMP-2110 Spinner Plate Assy, RH, 850mm Gbx VTB-CMP-2109 Spinner Plate Assy, LH, 850mm Gbx VTB-0047 Knife, Horiz.
  • Page 62 74420-2-03A OPTIONAL COMPOST BEATERS, HYDRAULIC PANELS PART DESCRIPTION WILL FIT SN REMARKS BL-8-LN 1/2-13 LN NYLON INSERT ZC BL-8-LW 1/2 SPLIT LW ZC BL-8-N 1/2-13 HEX FIN NUTS ZC BL-8-SW 1/2 SAE FW ZC BL-10-175-H8 5/8-11 X 1-3/4 HH G8 ZC BL-10-200-H8FC 5/8-11 X 2 HH Flange G8, Course Thread, Phos &...
  • Page 63 74420-2-03A OPTIONAL COMPOST BEATERS, HYDRAULIC PANELS Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 64 74420-2-03A OPTIONAL COMPOST BEATERS, HYDRAULIC PANELS | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 65 74420-2-03B OPTIONAL COMPOST BEATERS WITHOUT TRIM PANEL PART DESCRIPTION WILL FIT SN REMARKS VTB-CMP-2200-H PTO Shaft, Side VTB-CMP-2200-D Bottom Gearbox, 1840mm, 850mm Spinner Centers VTB-CMP-2200-C Side Gearbox, Beaters VTB-CMP-2113 Horizontal Beater Assy. VTB-CMP-2110 Spinner Plate Assy, RH, 850mm Gbx VTB-CMP-2109 Spinner Plate Assy, LH, 850mm Gbx VTB-0047 Knife, Horiz.
  • Page 66 74420-2-03B OPTIONAL COMPOST BEATERS WITHOUT TRIM PANEL PART DESCRIPTION WILL FIT SN REMARKS BL-8-LN 1/2-13 LN NYLON INSERT ZC BL-8-LW 1/2 SPLIT LW ZC BL-8-N 1/2-13 HEX FIN NUTS ZC BL-8-SW 1/2 SAE FW ZC BL-10-175-H8 5/8-11 X 1-3/4 HH G8 ZC 5/8-11 X 2 HH Flange G8, Course Thread, Phos &...
  • Page 67 74420-2-03B OPTIONAL COMPOST BEATERS WITHOUT TRIM PANEL Pik Rite Inc. | HP380 Manure Spreader 2020 |...
  • Page 68 | HP380 Manure Spreader 2020 | Pik Rite Inc.

  • Page 69: Web Chain Drive

    74418-2-04 WEB CHAIN DRIVE PART DESCRIPTION WILL FIT SN REMARKS VPA-NVE-36001 5 Quart Reservoir with Black Cap, NVE Style AYN-4-4-4 1/4' x1/4' x 1/4' White Nylon Hose Barb Wye AT-4-4-4-SS 1/4' x 1/4' x 1/4' Stainless Tee AN-4-CL-SS 1/4' NPT Close Nipple, Stainless Steel A-4124-4-4 1/4 Male Pipe x 1/4 Push Loc VLV-025-B...
  • Page 70 74418-2-04 WEB CHAIN DRIVE PART DESCRIPTION WILL FIT SN REMARKS BL-8-LNS 1/2-13 STOVER LN BL-8-LW 1/2 SPLIT LW ZC BL-8-SW 1/2 SAE FW ZC BL-10-300-H 5/8-11 X 3 HEX CAP G5 ZC BL-10-FW 5/8 USS FW ZC BL-10-LW 5/8 SPLIT LW ZC BL-16-JN 1-8 JAM NUT HEX Gr 5 YZ BL-6-125-H...
  • Page 71 74418-2-04 WEB CHAIN DRIVE Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 72: Web Chain Gearbox And Motor

    74418-2-05 WEB CHAIN GEARBOX AND MOTOR PART DESCRIPTION WILL FIT SN REMARKS GBX-1893 Gearbox, Vertical Beater Apron Drive PR60026 Flange Gasket, Apron Drive Gear Box HM-1893 Orbit Motor, Vertical Beater Apron Drive Hydra Ram HP-1038 Gear Lube, 80W90 @ Quart Spreader PR70356 Cap, HP Spreader Gearbox...
  • Page 73 74418-2-05 WEB CHAIN GEARBOX AND MOTOR Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 74: Rear Driveline With Clutch

    74418-2-06 REAR DRIVELINE WITH CLUTCH PART DESCRIPTION WILL FIT SN REMARKS PTS-1023 Driveline, Rear, Chain Models, HP380, HP500 PTS-1009L Cut-Out Clutch Special Order Only PTS-1010B Cross & Bearing Kit Special Order Only PTS-1009B Inboard Yoke, 1b Special Order Only PTS-1010C Spring Pin Special Order Only PTS-1023A...
  • Page 75 74418-2-06 REAR DRIVELINE WITH CLUTCH Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 76: 74418-2-06A Opt. Rear Driveline, Compost

    74418-2-06A OPTIONAL REAR DRIVELINE, COMPOST PART DESCRIPTION WILL FIT SN REMARKS PTS-1022 Driveline, 1-3/4-20 Spline, PWE580 Compost Drive PTS-1002A PTO Tractor Yoke (Walterscheid) 1-3/4 x 20 Spline 19101- PTS-4001B Extended Lube Cross & Bearing Kit Walterscheid Yokes Special Order Only PTS-1022A Inboard Yoke SS PTS-3001-D...
  • Page 77 74418-2-06A OPTIONAL REAR DRIVELINE, COMPOST Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 78: Gearbox, Vertical Beaters

    74418-2-07 GEARBOX, VERTICAL BEATERS PART DESCRIPTION WILL FIT SN REMARKS VTB-1899-A1 Housing Special Order Only VTB-1899-B1 Housing Special Order Only VTB-1899-C1 Shaft Special Order Only VTB-1899-D1 Threaded Ring, LH Thread Special Order Only VTB-1899-E1 Washer Special Order Only VTB-1899-F1 Bevel Pinion Z=13 Special Order Only VTB-1899-G1 Bearing 32209...
  • Page 79 74418-2-07 GEARBOX, VERTICAL BEATERS Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 80: Gearbox, Compost Beaters

    74418-2-08 GEARBOX, COMPOST BEATERS PART DESCRIPTION WILL FIT SN REMARKS VTB-1879-W1 Housing VTB-1879-U1 Housing VTB-1879-B1 Circlip E 40 VTB-CMP-J1 Pinion Z=14 VTB-1879-D1 Bearing 6308 VTB-1879-F1 Bearing 6309 VTB-1877-B1 Gear, Z=20 GBX-5-ST10-R Snap Ring, E 45 Reference Only,Special Order VTB-CMP-2200-C1 Shaft L=792 VTB-1879-H1 Spacer VTB-1879-I1...
  • Page 81 74418-2-08 GEARBOX, COMPOST BEATERS PART DESCRIPTION WILL FIT SN REMARKS VTB-1879-P1 Gear Z=20 VTB-1879-W2 Shaft VTB-CMP-2200-G1 Lateral Shaft L=544 VTB-1877-F1 Hub, Complete VTB-1879-H2 Calotte Complete VTB-CMP-F1 Shell Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 82: Gearbox, Compost Beaters, Side

    74418-2-09 GEARBOX, COMPOST BEATERS, SIDE PART DESCRIPTION WILL FIT SN REMARKS VTB-1879-B1 Circlip E 40 VTB-CMP-J1 Pinion Z=14 VPA-MAS-15466 3' NPT w/12' Body, Oil Separator GBX-5-ST10-R Circlip, Compost Beater VTB-CMP-2200-Q Bevel Pinion Z=14 VTB-CMP-2200-R Oil Seal 52/80/10-DL VTB-CMP-2200-S Shaft VTB-1879-E2 Bearing 6208 VTB-CMP-2200-V M12x50...
  • Page 83 74418-2-09 GEARBOX, COMPOST BEATERS, SIDE Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 84: Web Drive Hydraulics

    74419-3-01 WEB DRIVE HYDRAULICS PART DESCRIPTION WILL FIT SN REMARKS HV-RV-3H Relief Valve w/ SAE #10 Ports H-T5008F Hydraulic Tube SS, 3/4' x 190' A-FF2503-10-08 Elbow, 45, 10MFF x 8MP A-FF6801-10-10 Elbow, 5/8' MFF x 5/8' SAE A-FF6804-10-10-10 Run Tee, 10SAE x 10MFF x 10MFF A-FF6400-12-08 Union, 12MFF x 8SAE A-FF6400-12-10...
  • Page 85 74419-3-01 WEB DRIVE HYDRAULICS Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 86: Endgate Hydraulics

    74419-3-02 ENDGATE HYDRAULICS PART DESCRIPTION WILL FIT SN REMARKS H-T7062F 5/8' Hydraulic Tube, SS, ORFS A-FF2603-10-10-10 TEE, 10MFF X 10MFF X 10MFF A-FF6801-08-06 Elbow, 90, 8MFF x 6SAE A-FF6801-L-08-06 Elbow, 90, 8MFF x 6SAE A-QDS71X16 Ag Quick Coupler, 1/2' ISO5675 x 10SAE HA-1062-H Hydra-zorb Tube Clamp 5/8' (3 pc.) H8-142-10MFF-10MOR...

  • Page 87: Endgate Cylinders

    74419-3-03 ENDGATE CYLINDERS PART DESCRIPTION WILL FIT SN REMARKS HC-250-4806 2-1/2' x 48 w/ #6 SAE, Hydraulic Tie Rod Cylinder BL-16-500-8 1' x 5' HH C/S G8 ZC BL-16-LN 1 LN w/ NYLON INSERTS BL-16-SW 1 SAE FW HC-250-6006-A 1' Dia. X 3-1/2' Cylinder Pin PIN-C3-24 Cotter Pin 3/16 x 1 1/2' Pik Rite Inc.
  • Page 88 | HP380 Manure Spreader 2020 | Pik Rite Inc.

  • Page 89: Opt. Web Drive Hydraulics, Control Valve

    74419-3-04 OPT. WEB DRIVE HYDRAULICS, CONTROL VALVE PART DESCRIPTION WILL FIT SN REMARKS Flow Control, #10 SAE, 0-16 GPM, Free Reverse HV-FC5510 Flow A-FF6602-10-10-10 RUN TEE, 10MFF X 10MFF X 10FFFX Elbow, 5/8” MFF x 5/8” SAE A-FF6801-10-10 A-FF6500-10-10 Elbow, 10MFF x 10FFFX H10-17-10FFFX-10FFFX 5/8"...

  • Page 90: Opt. Web Drive Hydraulics, Remote Control Valve

    74419-3-05 OPT. WEB DRIVE HYDRAULICS, REMOTE CONTROL VALVE PART DESCRIPTION WILL FIT SN REMARKS HVE-C122012 Electronic Flow Control w/free flow reverse A-FF6602-10-10-10 RUN TEE, 10MFF X 10MFF X 10FFFX A-FF6801-10-12 Elbow, 10MFF x 12SAE A-FF6500-10-10 Elbow, 10MFF x 10FFFX H10-17-10FFFX-10FFFX 5/8"...
  • Page 91 74419-3-05 OPT. WEB DRIVE HYDRAULICS, REMOTE CONTROL VALVE Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 92: Opt. Compost Hydraulics With Trim Panel

    74419-3-06 OPT. COMPOST HYDRAULICS WITH TRIM PANEL PART DESCRIPTION WILL FIT SN REMARKS H-T7063F 3/8 SS Hydrulic Tube, 190, ORFS HA-1074-H Hydra-zorb Tube Clamp 3/8 (3 pc.) A-QDFF04S916M Flat Face Quick Disconnect, Male, 3/8 SAE Fitting A-QDFF04S916F Flat Face Quick Connector, Female, 3/8 SAE Fittting A-FF2603-06-06-06 Tee, 6MFF x 6MFF X 6MFF A-FF2501-6-4...

  • Page 93: Opt. Comopst Hydraulics Without Trim Panel

    74419-3-07 OPT. COMOPST HYDRAULICS WITHOUT TRIM PANEL PART DESCRIPTION WILL FIT SN REMARKS H-T7063F 3/8 SS Hydrulic Tube, 190, ORFS HA-1074-H Hydra-zorb Tube Clamp 3/8 (3 pc.) A-QDFF04S916M Flat Face Quick Disconnect, Male, 3/8 SAE Fitting A-QDFF04S916F Flat Face Quick Connector, Female, 3/8 SAE Fittting A-FF2603-06-06-06 Tee, 6MFF x 6MFF X 6MFF A-FF2501-6-4...

  • Page 94: Opt. Safety Chain

    74418-4-01 OPT. SAFETY CHAIN PART DESCRIPTION WILL FIT SN REMARKS 19701- FRM-3167 Safety Chain, Agricultural, 30,400 lb. Capacity 30097001- PR37152 Washer,Safety Chain BL-16-350H 1-8 X 3-1/2 HH BOLT ZC G5 BL-16-FW 1 FW ZC BL-16-LN 1 LN w/ NYLON INSERTS | HP380 Manure Spreader 2020 | Pik Rite Inc.
  • Page 95 74418-4-01 OPT. SAFETY CHAIN Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 96: Accessories

    74418-4-02 ACCESSORIES PART DESCRIPTION WILL FIT SN REMARKS 71009002- WH-16216 Jack Weldment, Sidewind Jack, 9,000 lb. 70209006- -70318008 WH-16218 Ram Sidewind Jack, 8,000 lb. 70318009- MAN-67670 Manual Holder/Canister SMV-PL SMV Sign, Metal SMV-S Socket for Spade Mount SMV-SM Spade Mount PR39117 Bracket, SMV Sign, Spreader MAN-0063...
  • Page 97 74418-4-02 ACCESSORIES Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 98: Decals On Front Of Spreader

    74418-4-03 DECALS ON FRONT OF SPREADER PART DESCRIPTION WILL FIT SN REMARKS DC-0103 Pikrite/Hydra-Pull Spreaders 14.23' x 22.8' DC-0022 Decal, Tractor Drawbar Adjustments DC-0021 Decal, Caution, 1000 rpm PTO Decal, All, 'Made in USA', White Back w/ Red & Blue...

  • Page 99: Decals On Sides Of Spreader

    PART DESCRIPTION WILL FIT SN REMARKS DC-1174 Decal, Danger Keep Hands and Feet Away DC-0115 Pikrite/Hydra-Pull/HP380 Spreaders 14.23' x 46.38' DC-0030 Decal, Danger, Entanglement In Beater DC-0025 Decal, Danger, Entanglement In Rotating Drive DC-0033 Decal, Red, Reflector, Spreader Pik Rite Inc. | HP380 Manure Spreader 2020 |...

  • Page 100: 74420-4-04A Decals On Compost

    74420-4-04A DECALS ON COMPOST PART DESCRIPTION WILL FIT SN REMARKS DC-ARROW Decal,Yellow Direction Arrow DC-1184 Danger Decal, 3" x 16" SMV-D SMV Sign, Decal | HP380 Manure Spreader 2020 | Pik Rite Inc.

  • Page 101: Opt. Electrical And Lighting

    74418-5-01 OPT. ELECTRICAL AND LIGHTING PART DESCRIPTION WILL FIT SN REMARKS EL-40603-426 Harness, Left Side Spreader Lights EL-40602-342 Harness, Right Side Spreader Light EL-40604-13 Harness, Work Lights, Spreader EL-50781-55 7 Conductor x 55' Long, Harness PR63007 Light Bracket Light, Auxiliary Work Light, Clear, Trapezoid Beam, EL-1233 Replaces EL-1201 TL#80394...
  • Page 102 74418-5-01 OPT. ELECTRICAL AND LIGHTING | HP380 Manure Spreader 2020 | Pik Rite Inc.

  • Page 103: Opt. Side Extensions

    74420-5-02 OPT. SIDE EXTENSIONS PART DESCRIPTION WILL FIT SN REMARKS PR70482 Side Extensions, HP380, HP500 PR70324 Transition, Side Ext, Front LH PR70322 Transition, Side Ext, Rear LH PR70323 Transition, Side Ext, Front RH PR70321 Transition, Side Ext, Rear RH PR70489 Support, Side Ext, Front LH PR70451 Support, Side Ext, Rear LH...
  • Page 104 | HP380 Manure Spreader 2020 | Pik Rite Inc.

  • Page 105: Warranty

    WARRANTY Pik Rite, Inc. provides a limited warranty assuring any new Hydra-Pull Spreader to be free from defects in material and workmanship for a period of two (2) years from the original date of purchase. Pik Rite will repair or replace, at its option and without charge, any defective or malfunctioning part (excluding items of normal wear or misuse) of the spreader for this allotted time.
