Flowserve ASF Technical Manual

Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Ahaus GmbH
von-Braun-Straße 19a
D-48683 Ahaus
Postfach 1162 D-48661 Ahaus
Telefon: +49(0) 2561-686-100
Fax: +49(0) 2561-686-200
Contents
Technical Data ASF-DIN ..................................................................................... 2
Technical Data ASF-ANSI ................................................................................... 3
Material Specification ASF .................................................................................. 4
Dimensions ASF-DIN .......................................................................................... 5
Dimensions ASF-ANSI ........................................................................................ 6
Spare Parts ASF ................................................................................................ 7
Assembly Instructions ASF ................................................................................. 8
Disassembly Instructions ASF ............................................................................ 8
ASF - Recommended Tightening Torques ......................................................... 9
ASF - Kv and Cv - Data ...................................................................................... 9
Technical Manual
Register 11
CONTENTS - ASF

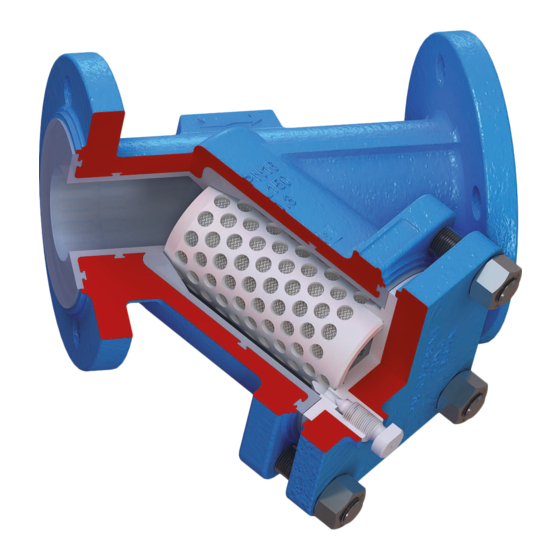

ASF - atomac strainer
Register:
11
Seite:
1
Datum:
04.1995
Revision:
14.2018
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Flowserve ASF

Summary of Contents for Flowserve ASF

  • Page 1: Table Of Contents

    Assembly Instructions ASF ................. 8 Disassembly Instructions ASF ................8 ASF - Recommended Tightening Torques ............9 ASF - Kv and Cv - Data ..................9 General Operating and Maintenance Instruction for atonac strainer ASF ..10 ASF - atomac strainer...

  • Page 2: Technical Data Asf-Din

    Revision: 14.2018 Telefon: +49(0) 2561-686-100 Telefon: +49(0) 2561-686-100 Fax: +49(0) 2561-686-200 Fax: +49(0) 2561-686-200 Technical Data ASF (DIN) Technical Data ASF (ANSI) Face-to-Face Dimensions DIN EN 558 (Basic series 1) Face-to-Face Dimensions ANSI B 16.10 Flange Connections DIN EN 1092-2 PN 16 Flange Connections ANSI B 16.5 Cass 150,...

  • Page 3: Material Specification Asf

    1.4301 / DIN EN 10088-3 A 193 B8 ° optional * The ETFE filter screen used in the ASF as standard is suitable for max. operating conditions of 150°C. For higher operating temperatures condult Flowserve Ahaus GmbH to select alternative material. DN / DIN nxØd...

  • Page 4: Dimensions Asf-Ansi

    14.2018 Postfach 1162 D-48661 Ahaus Revision: 14.2018 Telefon: +49(0) 2561-686-100 Telefon: +49(0) 2561-686-100 Fax: +49(0) 2561-686-200 Fax: +49(0) 2561-686-200 Dimensions ASF Spare Parts (item n°) - ASF flange + Drain Cover plug ANSI 1“ 0014341 + 0014332 0001736 1½“ 0013852 + 0013985 0001736 2“...

  • Page 5: Assembly Instructions Asf

    * max. values For all jobs which are to be carried out on an installed valve, the works safety requirements and the ASF - Kv and Cv - Data general installation and maintenance instructions for fluorcarbon resin lined atomac valves must be observed.

  • Page 6: General Operating And Maintenance Instruction For Atonac Strainer Asf

    14.2018 Telefon: +49(0) 2561-686-100 Fax: +49(0) 2561-686-200 General Operating and Maintenance Instructions for atomac strainer ASF General 1.1. atomac strainers are used as filters in piping systems in order to filter solid particles out of the process medium. Installation into the Piping System 2.1.
