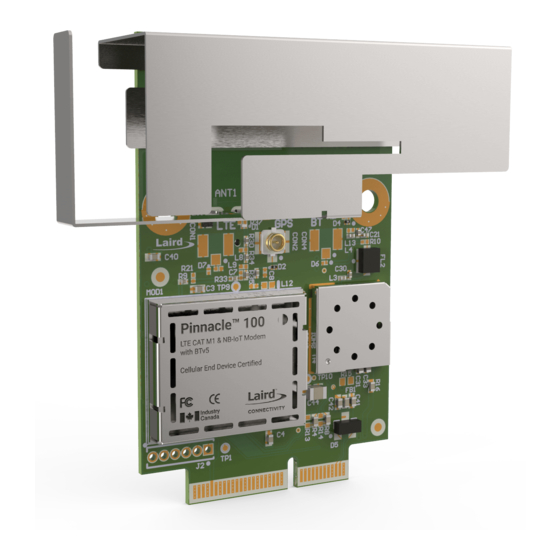

Summary of Contents for Laird Pinnacle 100

  • Page 1 Hosted Mode Low Power User Guide Pinnacle 100 Modem Version 1.0...
  • Page 2 Pinnacle 100 Modem Hosted Mode Low Power User Guide EVISION ISTORY Version Date Notes Contributors Approver 02/12/2020 Initial Release Mike Richter Matt Stergiou https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 3: Table Of Contents

    Exiting the Low Power Mode .............................20 LTE Cat-M1 Low Power Operation, Amarisoft Callbox mini ....................20 Cat-M1 eDRX ................................20 Cat-M1 PSM — Once every Min ..........................21 https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 4 CMW500 Cat-NB1 15KHz Sub Carrier spacing Configuration ..................32 CMW500 Cat-NB1 3.75KHz Sub Carrier spacing Configuration ................34 at+ksleep ...................................36 at+cpsms ...................................37 at+cedrxs ...................................37 at+kbndcfg .................................39 Amarisoft Callbox mini MME configuration ........................39 https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 5: Overview

    U.FLP(40) USB VCP Adapter RF Cable LTE U.FL CON1 Between Series Adapter 115200, N, 8, 1, RTS/CRTS Figure 1: R&S CMW500 Test Configuration https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 6: Amarisoft Block Diagram

    Setup the DVK’s IO switches as shown in Figure 3. Place a Jumper Wire on IO M2.59 and connect to J9 Pin 11 (1.8V). The N6705C DC Power Analyzer setup as the Current Meter is connect using J4. Figure 3: DVK Configuration https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 7: Modem Configuration

    The modem’s NRF chip is loaded with 120.3.3.35, running Application: 1.01, and the HL7800 is loaded with 4.3.8.0. Figure 4 shows the Firmware settings (highlight in Yellow) Figure 4: Query Firmware settings, configuring the NRF low power operation. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 8: Configure M2.59 For Nrf Low Power Operation

    Low Power Operation functionality is enabled by S Register 109. Make sure the UART is communicating with the nRF by sending the ati0 command; Pinnacle 100 =nRF & HL7800 = HL7800 By default, the nRF will be communicating with HL7800 upon boot, to switch to communicate with the nRF, toggle the DTR check box, on and off, the console should now be switched, but check with ati0.

  • Page 9: Lte Cat-M1 Low Power Operation, R&S Cmw500

    Figure 7 shows the PTW and eDRX cycle, and Figure 8 shows the Avg Current per hour is 1.064 mA. Figure 6: Cat-M1 Low Power Mode Command Sequence https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 10 100 Modem Hosted Mode Low Power User Guide Figure 7: Cat-M1, PSM, PTW and Cycle Time Figure 8: Cat-M1, eDRX, Cycle Time 81.92 secs https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 11: Cat-M1 Psm - Once Every Min

    Figure 9: Cat-M1, PSM, Once every 10 mins Cat-M1 PSM — Once every 10 Min at+cpsms=1,,,"00000001","00001010" Figure 10: Cat-M1, PSM, Once every 10 mins https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 12: Cat-M1 Psm - Once Every Hour

    Figure 11: Cat-M1, PSM, Once every hour Cat-M1 PSM — Once every 8 Hours at+cpsms=1,,,"00101000","00001010" Figure 12: Cat-M1, PSM, Once every 8 hrs https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 13: Cat-M1 Psm - Once A Day

    0 Toggle DTR to change from HL7800 to nRF radio comm For eDRX: at+cedrxs=0 For PSM: at+cpsms=0 Low power mode has been exited. https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 14: Lte Cat-Nb1 Low Power Operation, R&S Cmw500

    Figure 15, shows the PTW and eDRX cycle, and Figure 16, shows the Avg Current per hour is 0.729 mA/H. Figure 14: eDRX Cat-NB1, Low Power Mode Command Sequence https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 15 Hosted Mode Low Power User Guide Figure 15: eDRX Cat-NB1 15KHz, PTW and Cycle Time Figure 16: eDRX Cat-NB1 15KHz, Cycle Time 81.92 sec https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 16: Cat-Nb1 15Khz Psm - Once Every Min

    Figure 17: PSM Cat-NB1 15KHz, Once every min 5.1.3 Cat-NB1 15KHz PSM — Once every 10 Min at+cpsms=1,,,"00000001","00001010" Figure 18: PSM Cat-NB1 3.75KHz, Once every 10 mins https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 17: Cat-Nb1 15Khz Psm - Once Every Hour

    5.2.1 Cat-NB1 3.75KHz eDRX Same commands as 5.1.1 Cat-NB1 15KHz eDRX on page 14. Figure 20: eDRX Cat-NB1 3.75KHz, PTW and Cycle Time https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 18: Cat-Nb1 3.75Khz Psm - Once Every Min

    5.2.2 Cat-NB1 3.75KHz PSM — Once every Min at+cpsms=1,,,"10100001","00001010" T3412 = "10100001" = 1 min; T3324 = "00001010" = 20 sec Figure 22: PSM Cat-NB1 3.75KHz, Once every min https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 19: Cat-Nb1 3.75Khz Psm - Once Every 10 Min

    Figure 23: PSM Cat-NB1 3.75KHz, PSM, Once every 10 min 5.2.4 Cat-NB1 3.75KHz PSM — Once every Hour at+cpsms=1,,,"00100001","00001010" Figure 24: PSM Cat-NB1 3.75KHz, Once every hour https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 20: Cat-Nb1 Edrx & Psm Summary

    MARISOFT ALLBOX MINI Cat-M1 eDRX Same commands used as section 4.1on page 9 4.1Cat-M1 eDRX. Figure 25: Cat-M1 eDRX; PTW and Cycle Time https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 21: Cat-M1 Psm - Once Every Min

    Cat-M1 PSM — Once every Min at+cpsms=1,,,"10100001","00001010" T3412 = "10100001" = 1 min; T3324 = "00001010" = 20 sec Figure 27: Cat-M1, PSM, Once every 10 mins https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 22 Figure 28: Cat-M1, PSM, Once every 10 mins Cat-M1 PSM — Once every Hour at+cpsms=1,,,"00100001","00001010" Figure 29: Cat-M1, PSM, Once every hour https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 23 7.1.1 Cat-NB1 15KHz eDRX Same commands used as section 5.1.1 on page 14 4.1Cat-NB1 15KHz eDRX. Figure 30: eDRX Cat-NB1 15KHz, PTW and Cycle Time https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 24 7.1.2 Cat-NB1 15KHz PSM — Once every Min at+cpsms=1,,,"10100001","00001010" T3412 = "10100001" = 1 min; T3324 = "00001010" = 20 sec Figure 32: PSM Cat-NB1 15KHz, Once every min https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 25 Figure 33: PSM Cat-NB1 3.75KHz, Once every 10 mins 7.1.4 Cat-NB1 15KHz PSM — Once every Hour at+cpsms=1,,,"00100001","00001010" Figure 34: PSM Cat-NB1 3.75KHz, Once every hour https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 26 Same commands used as section 5.1.1 on page 14 4.1Cat-NB1 15KHz eDRX. Figure 35: eDRX Cat-NB1 3.75KHz, PTW and Cycle Time Figure 36: eDRX Cat-NB1 3.75KHz, Cycle Time 81.92 sec https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 27 Figure 37: PSM Cat-NB1 3.75KHz, Once every min 7.2.3 Cat-NB1 3.75KHz PSM — Once every 10 Min at+cpsms=1,,,"00000001","00001010" Figure 38: PSM Cat-NB1 3.75KHz, PSM, Once every 10 mins https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 28 81.92 sec 10.24 sec 2.216639 53.199336 1 min 20 sec 7.367881 176.829144 10 min 20 sec 0.911084 21.866016 1 hr 20 sec 0.357948 8.590752 https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 29: Appendix

    Pinnacle 100 Modem Hosted Mode Low Power User Guide APPENDIX CMW500 Cat-M1 Configuration https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 30 Pinnacle 100 Modem Hosted Mode Low Power User Guide https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 31 Pinnacle 100 Modem Hosted Mode Low Power User Guide https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 32: Cmw500 Cat-Nb1 15Khz Sub Carrier Spacing Configuration

    Pinnacle 100 Modem Hosted Mode Low Power User Guide CMW500 Cat-NB1 15KHz Sub Carrier spacing Configuration https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 33 Pinnacle 100 Modem Hosted Mode Low Power User Guide https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 34: Cmw500 Cat-Nb1 3.75Khz Sub Carrier Spacing Configuration

    Pinnacle 100 Modem Hosted Mode Low Power User Guide CMW500 Cat-NB1 3.75KHz Sub Carrier spacing Configuration https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 35 Pinnacle 100 Modem Hosted Mode Low Power User Guide https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 36: At+Ksleep

    Hosted Mode Low Power User Guide at+ksleep at+ksleep=0,2 • 0 – Sleep mode permission is driven by a HW signal (DTR). • 2 – Hibernate https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 37: At+Cpsms

    10 hours value indicates that the timer is deactivated at+cedrxs at+cedrxs=0 (Disable) at+cedrxs=1,4,5 (Enable,Cat-M1,81.92 sec) at+cedrxs=1,5,5 (Enable,Cat-NB1,81.92 sec) https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
  • Page 38 Pinnacle 100 Modem Hosted Mode Low Power User Guide https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...

  • Page 39: At+Kbndcfg

    To set T3412 on the Amarisoft callbox mini add the following TAU timer to the mme configuration (mme-ims.cfg) /* TAU update timer in secs */ t3412: 300, /*Here T3412 is now set to 5 minutes*/ https://www.lairdconnect.com/ Americas: +1-800-492-2320 © Copyright 2020 Laird. All Rights Reserved Europe: +44-1628-858-940 Hong Kong: +852 2923 0610...
