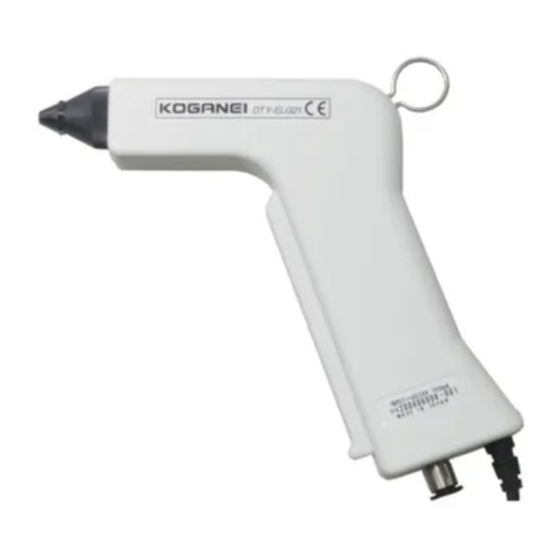

Static Electricity Removing Unit Ionizer
Air gun type
DTY-ELG21
□ Features
●The product has a 200g light weight body, and designed
for easy holding.
20% reduction in weight (compared to our products)
●A high-frequency AC method provides high effi ciency of
electrostatic charge removal and outstanding ion
balance.
●Highly fl exible robot cable is used for connection.
●A separate controller is unnecessary because a valve
and ion generator is built in.
●Pulsed air improves energy saving/dust removal
effi ciency by installing a pulse blow unit (sold separately).
Power indicator LED (green)
Alarm indicator LED (red)
Suspension bracket
Item
Input voltage
Consumption current
Output voltage
Display
Outer dimensions
Mass
Ion balance *1
Ozone generation amount *2 ppm
Medium *3
Operating air pressure range MPa
Operating Environment
Material
Accessories
*1:Distance 100mm from nozzle port, pressure 0. 6MPa
*2: Distance 200mm from the nozzle port, Pressure 0. 2MPa
*3: Be sure to supply air when using.
Remark 1: Ion balance is measured according to our measurement conditions.
can be manually
rotated by 90° .
□ Specifi cation
Model
V
mA
kV
Power
Alarm
mm 164.6 （L） ×25 （W） ×135.8 （H） (not including protrusions)
g
V
Air (clean air, water vapor and oil removed)
Indoors: 0 to 40°C/65% or less (non-condensation)
2: Do not use other nozzles other than DTY-ZN1-G21.
Catalog No.BK-P048
DTY-ELG21
DC24 ± 5%
Approx. 100
Approx. 2.5 (high frequency type)
Power indicator LED (green)
Alarm indicator LED (red)
200(without cables)
± 15
0.04 or less
0.05 〜 0.6
Body: PBT, Nozzle: PPS
AC Adapter, Instruction Manual
