Cable connections

56
Interroll Drum motor series i, S, S/A, D
D-series product information
12.5
6

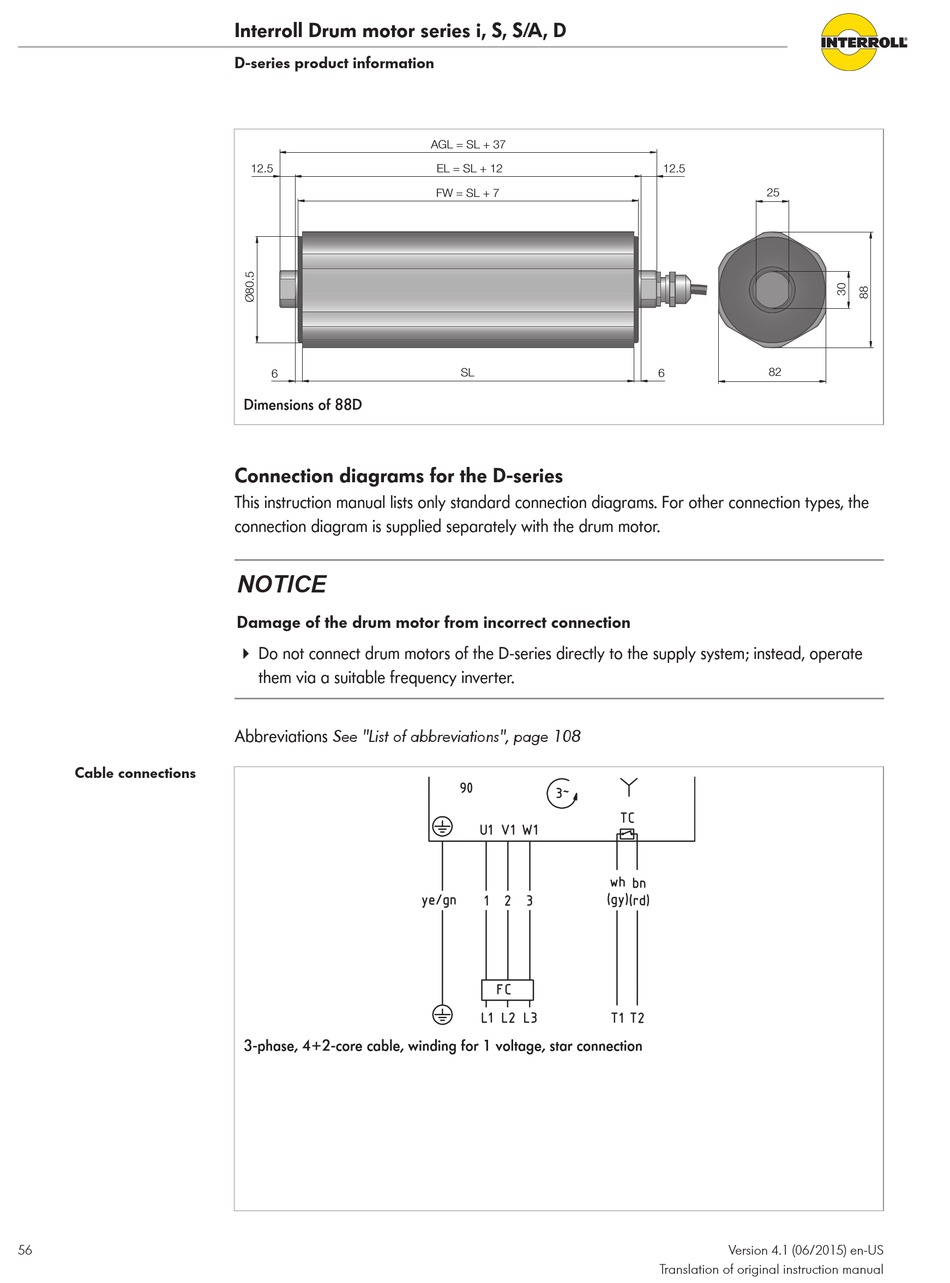

Dimensions of 88D

Connection diagrams for the D-series

This instruction manual lists only standard connection diagrams. For other connection types, the
connection diagram is supplied separately with the drum motor.
NOTICE
Damage of the drum motor from incorrect connection
4 Do not connect drum motors of the D-series directly to the supply system; instead, operate
them via a suitable frequency inverter.
Abbreviations See "List of abbreviations", page 108
3-phase, 4+2-core cable, winding for 1 voltage, star connection
AGL = SL + 37
EL = SL + 12
FW = SL + 7
SL
12.5
25
82
6
