Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
consumer
.
ORDERING INFORMATION
Family Care Skirted 1PC 305mm
(Continuous Clean) W/O Seat .........................K-23188T-ITHC
Family Care Skirted 1PC 400mm
(Continuous Clean) W/O Seat .........................K-23189T-ITHC
Family Care Skirted 1PC 305mm
W/O
Seat ............................................................K-23188T-HC
Family Care Skirted 1PC 400mm
W/O Seat ............................................................K-23189T-HC
NOTES
·
Observe all local plumbing and building codes.
·
Shut off the water supply.
·
Seat post holes are on 140mm centers.
·
Ensure that the new drain has the correct roughing-in
dimension. This toilet has a 305/400mm roughing-in
dimension.
See Roughing-in
·
Closet flange must be 305/400mm on-center from wall.
·
Carefully inspect the new fixture for any sign of damage.
·
For new construction, refer to the dimensions in
installation step
for locating the shut-off valve.
·
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2018).
·
This product complies with Q/KCI-006-2018 and GB
25502-2017. Water Efficiency Grade 1.
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC
1397913-T01-B
please leave instructions for the
.

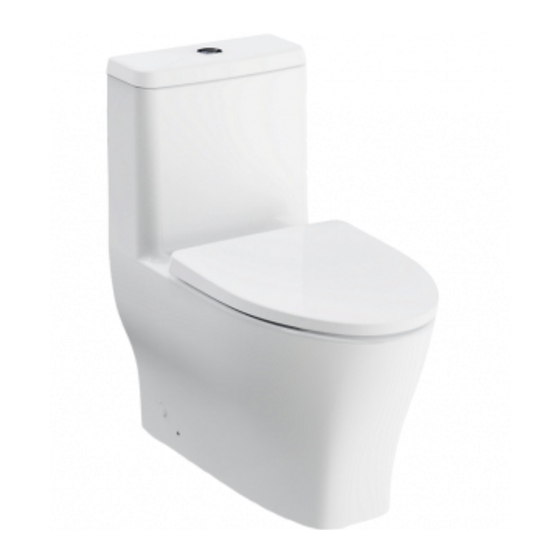

3.0/4.8L VITREOUS CHINA ONE PIECE TOILET
S-TRAP 305mm K-23188T-ITHC/K-23188T-HC
S-TRAP 400mm K-23189T-ITHC/K-23189T-HC
·
·
·
·
(
)305mm(
(
)400mm(
(
)...........................................................K-23188T-HC
(
)...........................................................K-23189T-HC
·
·
·
140mm
·
305/400mm(
·
·
·
·
2018)
·
Q/KCI-006-2018 GB 25502-2017
1
2
528137
8
256410
1
110400
©
Copyright Kohler China Investment Co., Ltd. 2020
-1-
©

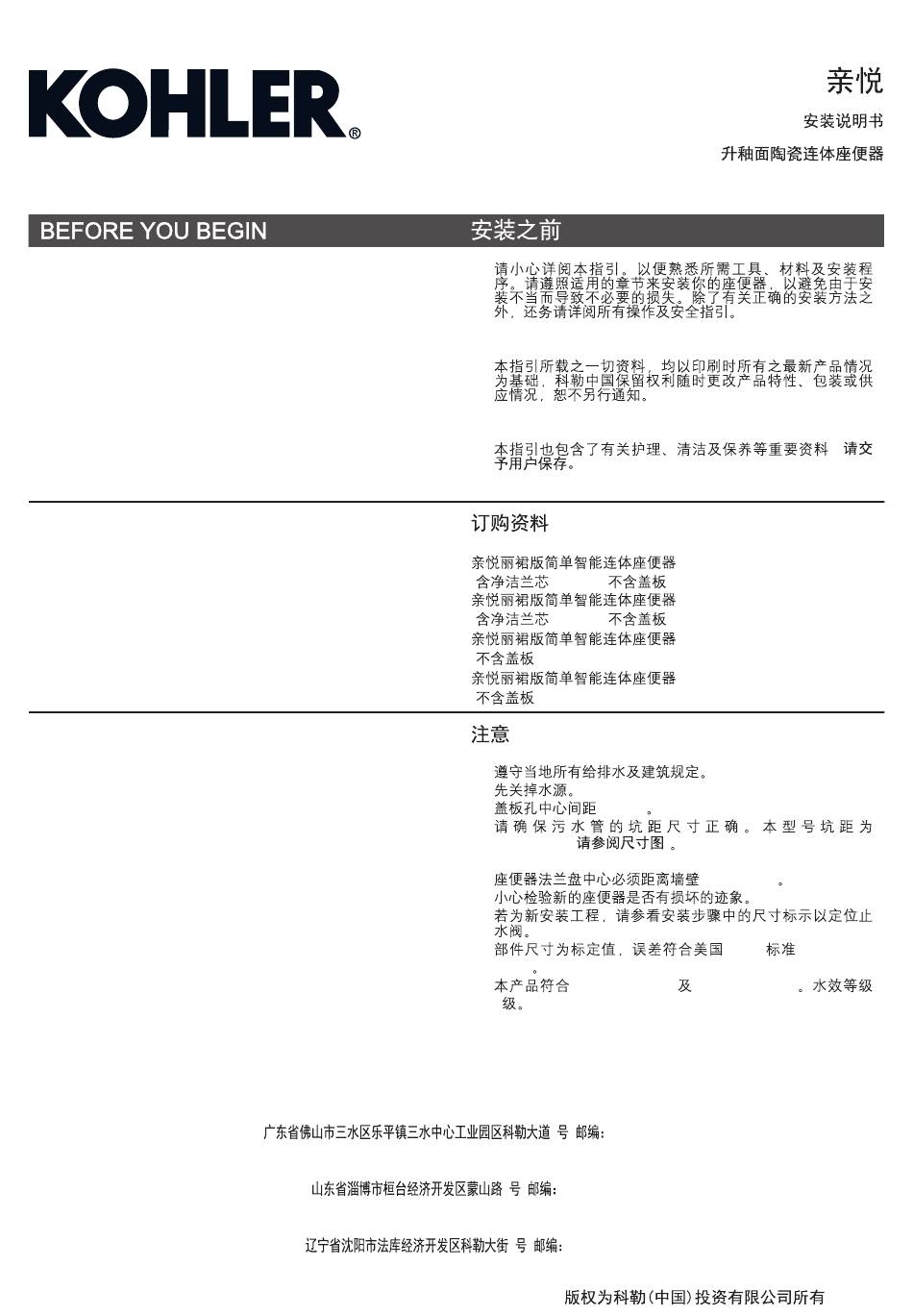

FAMILY CARE
INSTALLATION INSTRUCTIONS
3.0/4.8
) .......................K-23188T-ITHC
) .......................K-23189T-ITHC
305mm
400mm
)
305/400mm
ASME
POST CODE:
256410
POST CODE:
-
(A112.19.2-
:
110400
2020
Advertisement
Related Manuals for Kohler S-TRAP K-23188T-ITHC
Summary of Contents for Kohler S-TRAP K-23188T-ITHC
- Page 1 This product complies with Q/KCI-006-2018 and GB Q/KCI-006-2018 GB 25502-2017 25502-2017. Water Efficiency Grade 1. No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA...
-
Page 2: Tools And Materials Required
The flexible hose needed is supplied. The stop valve and wax 60cm ring are not supplied. Reference Value Unit: mm Finished Wall FRONT OF BOWL Supply 305/400 OF OUTLET Fig.#1 Kohler reserves the right to change marked dimensions without prior notice. 1397913-T01-B... -
Page 3: Installation
The expansion of cement due to a rise in temperature may make the toilet crack or cause damage. Kohler is not responsible for any damage caused by installation with the use of cement. TO INSTALL SUPPLY... - Page 4 Firmly press the toilet gasket onto the Plastic Trap Outlet toilet outlet of plastic trap. Toilet Gasket NOTE 1: Wax ring type toilet gasket should not be installed at temperatures less than 21 C. NOTE 2: If you are using a toilet gasket with an integral plastic sleeve, make sure the gasket is positioned Fig.#7...
- Page 5 Carefully thread the screws into the brackets, until toilet is secure. Alternately tighten left and right sides to prevent pulling the toilet off center. Install cap to cover screw. See Fig.#13 Do not overtighten. Apply caulk around base. See Fig.#14 Bushing Fig.#13 Fig.#14...
- Page 6 CONTINUOUS CLEAN K-23188T-ITHC/K-23189T-ITHC K-23188T-ITHC/K-23189T-ITHC 1. Install and connect the CONTINUOUS CLEAN. Place to connect the water refill tube Refer to the illustration on Refer to the illustration on the right for structure of the right for the positions flush valve. of refill tube, fill valve, flush valve and bowl cleaner.
- Page 7 4. Caution: · · The toilet bowl cleaner is corrosive and is fatal if swallowed. · · Wear plastic gloves when using the toilet bowl cleaner. · · Store the toilet bowl cleaner out of reach of children. · · Flush eyes, skin or clothes for 15 minutes immediately upon contact with the toilet bowl cleaner.
- Page 8 REMOVE THE TANK COVER Note: Press down the spring to remove the box and separate it from the tank cover. Press down the spring Spring Fig.#22 FITTINGS AND RELATIVE POSITION IN TANK Caution: Restore the moved or removed parts according to the positions and directions as shown.
- Page 9 A. Partially close the water supply shut-off valve if the water pressure to the toilet is too tank is filling. high. Check the toilet performance following any such adjustment. B. Remove dirt or obstructions from the valve head. Flush the lines. IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage. 1397913-T01-B...
-
Page 10: Consumer Responsibilities
CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
