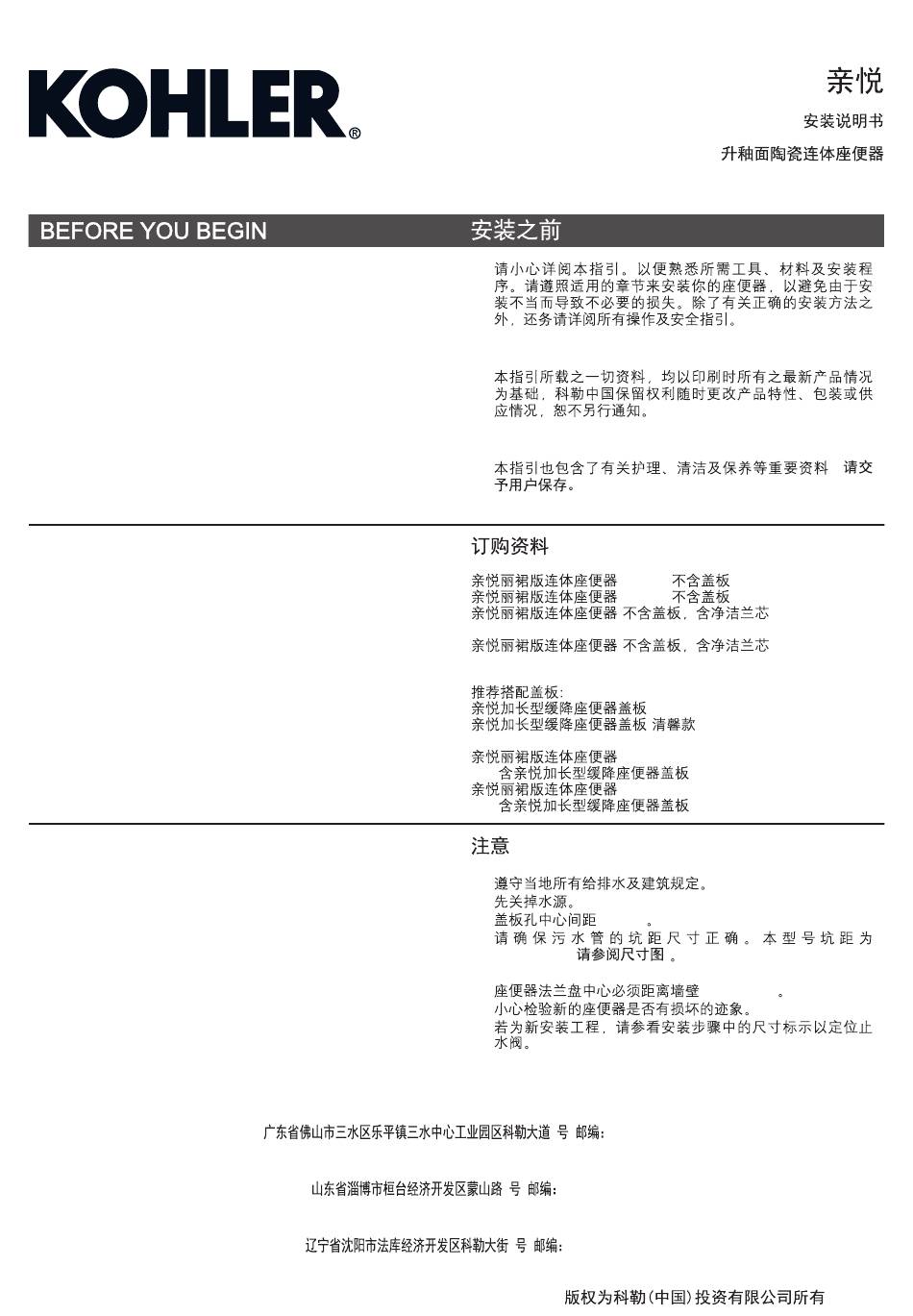

Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
please leave instructions for the
consumer
.
ORDERING INFORMATION
Family Care Skirted 1PC 305mm W/O Seat .......K-23188T-NS
Family Care Skirted 1PC 400mm W/O Seat .......K-23189T-NS
Family Care Skirted 1PC 305mm W/O Seat +CL
.........................................................................K-23188T-ITNS
Family Care Skirted 1PC 400mm W/O Seat +CL
.........................................................................K-23189T-ITNS
Recommended Toilet Seat:
Family Care QC Seat ................................................K-23204T
Family Care Purefresh QC Seat................................K-23205T
Family Care Skirted 1PC 305mm ..........................K-23188T-S
Includes Family Care QC Seat ...........................K-23204T
Family Care Skirted 1PC 400mm ..........................K-23189T-S
Includes Family Care QC Seat ...........................K-23204T
NOTES
·
Observe all local plumbing and building codes.
·
Shut off the water supply.
·
Seat post holes are on 140mm centers.
·
Ensure that the new drain has the correct roughing-in
dimension. This toilet has a 305/400mm roughing-in
dimension.
See Roughing-in
·
Closet flange must be 305/400mm on-center from wall.
·
Carefully inspect the new fixture for any sign of damage.
·
For new construction, refer to the dimensions in
installation step
for locating the shut-off valve.
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC
1392769-T01-C
.
3.0/4.8L VITREOUS CHINA ONE PIECE TOILET
S-TRAP 305mm K-23188T-NS/K-23188T-S/K-23188T-ITNS
S-TRAP 400mm K-23189T-NS/K-23189T-S/K-23189T-ITNS
·
·
·
·
305mm(
400mm(
(
.........................................................................K-23188T-ITNS
(
.........................................................................K-23189T-ITNS
305mm ..............................K-23188T-S
400mm ..............................K-23189T-S
·
·
·
140mm
·
305/400mm(
·
·
·
2
528137
8
256410
1
110400
©
Copyright Kohler China Investment Co., Ltd. 2020
-1-
©
FAMILY CARE
INSTALLATION INSTRUCTIONS
3.0/4.8
) ...........K-23188T-NS
) ...........K-23189T-NS
)305mm
)400mm
.......................................K-23204T
(
)..........................K-23205T
............................K-23204T
............................K-23204T
)
305/400mm
POST CODE:
256410
POST CODE:
-
:
110400
2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kohler FAMILY CARE K-23188T-NS
Summary of Contents for Kohler FAMILY CARE K-23188T-NS
- Page 1 For new construction, refer to the dimensions in installation step for locating the shut-off valve. No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA...
-
Page 2: Tools And Materials Required
The flexible hose needed is supplied. The stop valve and wax 60cm ring are not supplied. Unit: mm Reference Value Finished Wall FRONT OF BOWL Supply 305/400 OF OUTLET Fig.#1 Kohler reserves the right to change marked dimensions without prior notice. 1392769-T01-C... -
Page 3: Installation
The expansion of cement due to a rise in temperature may make the toilet crack or cause damage. Kohler is not responsible for any damage caused by installation with the use of cement. TO INSTALL SUPPLY... - Page 4 Firmly press the toilet gasket onto the toilet outlet of plastic trap. Plastic Trap Outlet Toilet Gasket NOTE 1: Wax ring type toilet gasket should not be installed at temperatures less than 21 C. NOTE 2: If you are using a toilet gasket with an integral plastic sleeve, make sure the gasket is positioned Fig.#7...
- Page 5 Carefully align and lower the bowl. Apply weight to the bowl rim to let the outlet insert into plastic trap. See Fig.#12 Carefully thread the screws into the brackets, until toilet is secure. Alternately tighten left and right sides to prevent pulling the toilet off center.
- Page 6 Install the toilet seat according to the seat manufacturer's installation instructions. Connect the push button and flush valve. Fig.#16 FILL VALVE ADJUSTMENT Fill float with ballast Adjust the cam clockwise or counter- clockwise until the water level is at the marked water line.
-
Page 7: Push Button Installation
3. Toilet bowl cleaner replacement. Lift the tank cover and move it aside as illustrated. Note: The tank cover can not be completely removed because of the steel wire connecting it with the flush valve. Refer to the instructions on Fig.#23 for removal of tank cover. Rotate the handle in the direction of the arrow. - Page 8 TANK COVER INSTALLATION Note: Press down the spring and insert the button into the installation position on the tank cover. Release the spring to lock it. Be noted not to let the steel wire of the flush valve resting on the lever of the fill valve. Button Box Fig.#22 REMOVE THE TANK COVER...
- Page 9 A. Partially close the water supply shut-off valve if the water pressure to the toilet is too tank is filling. high. Check the toilet performance following any such adjustment. B. Remove dirt or obstructions from the valve head. Flush the lines. IMPORTANT: Use only genuine Kohler parts as shown to avoid property damage. 1392769-T01-C...
-
Page 10: Consumer Responsibilities
CAUTION: Don t use any cement while installing the toilet. Heat expansion of the toilet may damage the feet of the toilet. Kohler will not be responsible for any damage because of using cement. WARNING: Risk of product damage. Do not throw into the toilet what is easy to block it, such as newspaper, paper pilch, sanitary towel.
