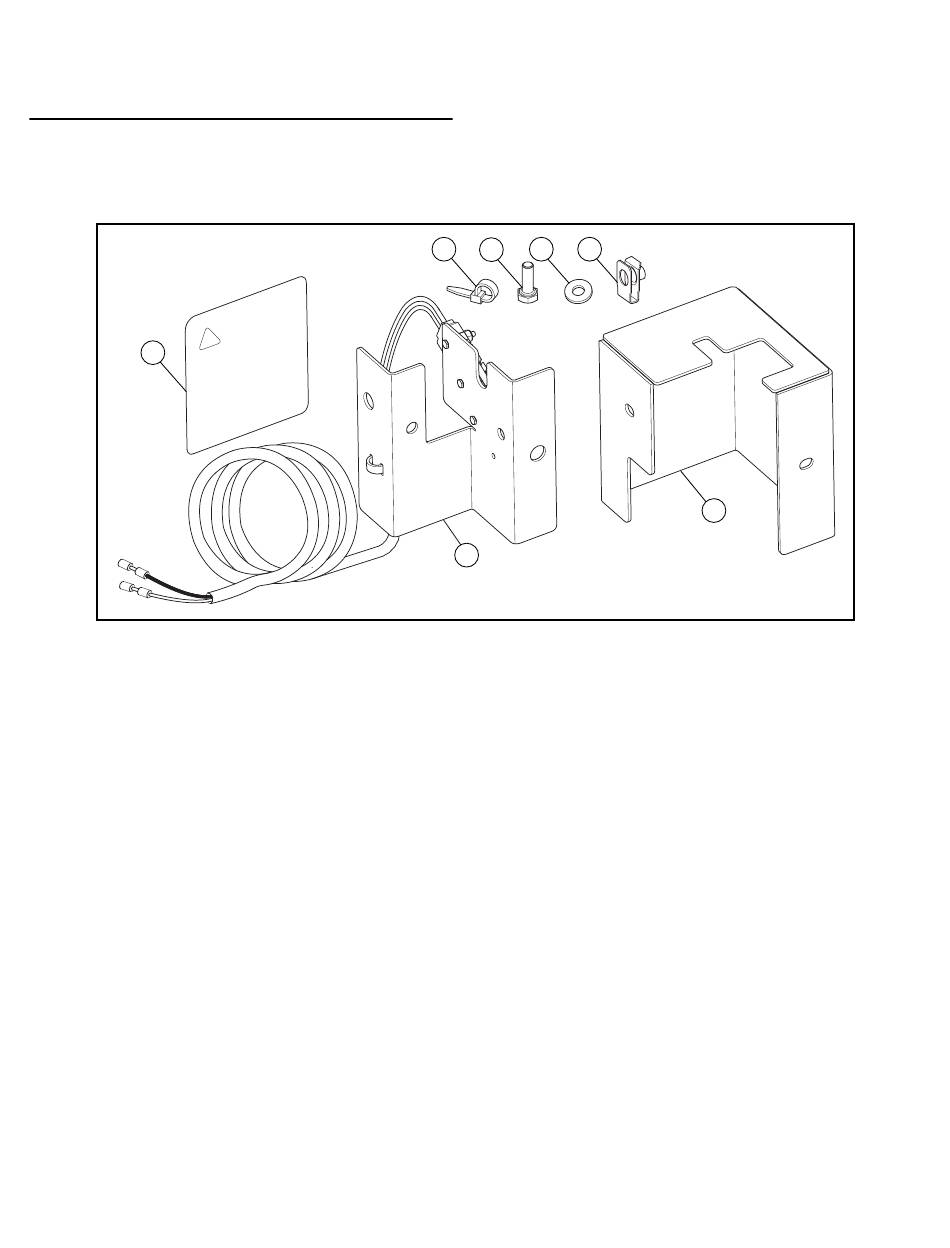

Dump From Seat Kit Instruction Number 125176 Part Number 125223 Packing List This kit is for side catcher 125225. This kit is intended to be a permanent installation. Listed below are parts included in this kit. If any parts are missing or damaged, please contact Excel Parts Department. Retain these instructions for replacement parts.
Page 2
Safety and Instruction Decals The decals are designed to give the operator brief information needed in the daily operation and service of the mower. These decals are not intended to be used in place of this manual but instead are to be used as an extension of this manual.
Page 3
Assembly Park the mower on a solid, level surface; set the park brakes; shut-off the engine; and remove the ignition key. (Disconnect the negative battery cable.) Remove the catcher bag. Fig. 2 INDEX NO. DESCRIPTION CATCHER BAG CATCHER PLATE FIG. 2 Remove the top set of existing hardware from the catcher plate as shown.
Page 4
Attach the switch plate to the catcher plate with the existing hardware. Fig. 4 INDEX NO. DESCRIPTION SWITCH PLATE CATCHER PLATE CB .250-20 X .625 ZNYC FW 0.281 SAE NT .250-20 HX ZY NL FIG. 4 Attach the switch wire harness to the backside of the catcher plate with the wire ties in the first two places as shown.
Page 5
Locate the orange wire with the red stripe. Cut the orange wire with the red stripe about 5” from the connector. Strip 1/4” of the covering from each side of the cut wire. Fig. 7 Locate the red wire connector on the dump from seat kit wire harness. Insert the orange/red wire that is coming from the deck clutch switch harness connector into the connector on the red wire and crimp securely.
Page 6
12. Remove the excess material from the catcher washer to allow the bag assembly to pivot for dumping. IMPORTANT: Do not remove too much material. Make sure no burrs exist on the catcher washer. Fig. 9 Remove excess material INDEX NO. DESCRIPTION CATCHER BAG CATCHER WASHER...
Page 7
14. Install the catcher bag. Make sure the switch stop is correctly inserted into the DFS switch assembly. Fig. 11 INDEX NO. DESCRIPTION CATCHER BAG CATCHER CHUTE SWITCH STOP SWITCH ASSEMBLY FIG. 11 15. Connect the negative battery cable. Check the Catcher Switch. 16.
Page 8
Operating When the catcher is in operating position both switch plungers are fully depressed. Fig. 13 In the operating mode the bag presence switch and the bag closed switch are fully depressed. In the dumping mode the bag closed switch is disengaged. The deck will automatically disengage. NOTE: During normal operation it is recommended the operator disengage the deck by depressing the deck clutch switch.
Page 9
The air flow dust baffle inflates during operation. The air flow dust baffle begins to deflate as the catcher bag fills. Empty the catcher bag before the air flow dust baffle completely deflates. Fig. 14 Deflated Inflated INDEX NO. DESCRIPTION AIR FLOW DUST BAFFLE CATCHER BAG FIG.
Page 10
Blades do not turn when engaging deck: Inspect catcher bag assembly to insure it is seating properly and engaging switches. Clean grass clipping and other debris from unit. Never use high pressure water to clean unit, especially around the switches as damage can occur. Inspect all wires and switches for damage or loose connections.
