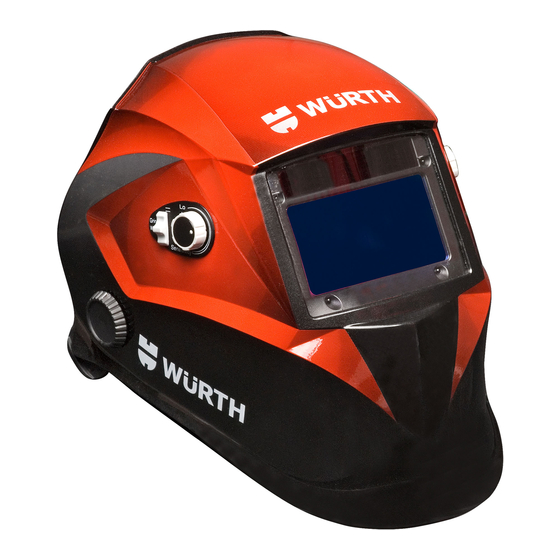

  • Page 1 AUTO-DARKENING WELDING HELMET STELLA Art. 0 984 915010 Art. 0 984 915020 Art. 0 984 915030 Art. 0 984 915040 User's Manual...
  • Page 2 AUTO-DARKENING WELDING HELMET STELLA Ÿ Make sure that the Front Cover Lens is clean, and that no WARNING: Read carefully all the instructions before dirt is covering the surfaces of four sensors on the front using the product for the first time! part of the Filter Cartridge.
  • Page 3 TECHNICAL SPECIFICATIONS Viewing area: 98 x 55mm/3.86" x 2.17" UV/IR protection: sve do stepena DIN16 permanentno Clear state: DIN 4 Variable shade: from DIN9 to DIN13 Reaction time: 0.000033 sec. (1/30000 s) Delay time: long-middle-short (outside adjustment) (it may vary between 0.3s ~ 0.9 s) Sensitivity: can be continually adjusted using the outside controls...
  • Page 4 cannot solve the problem on his own, it is necessary to stop using this helmet and contact the supplier. 4) Delay time switch — 1) there are three positions (long, medium, short) by which you can set the time of switching from dark to clear state in order to avoid the possible damages to the eyes in the event of the residual arc, when switching to the clear state is performed too quickly from the moment when the arc...
  • Page 5 Zamena poklopca sočiva sa listom delova COVER LENS REPLECEMENT WITH PARTS LIST (1) Shell, (2) Shade scale window, (3) Sensitivity scale window, (4) Grinding/Welding Switch, (5) Filter Setting Frame, (6) 2x Fixing Nut, (7) Shade knob /Sensitivity knob, (8) Front Cover Lens, (9) Shade box, (10) Sensitivity box, (11) Lithium battery case, (12) Auto-Darkening Filter, (13) Inside Cover Lens, (14) Magnifier/Cheater Lens (can be ordered if necessary).
  • Page 6 PARTS LIST (1) Shell (15) 2x fixing nut, (16) 2x lock washer, (17) Adjustment limitation washer (left) (18) Adjustment limitation washer (right) (19) Headband lever (left) (20) Headband lever (right) (21) Headband lever fixing screws (22) Sweat band (cloth) (23) Front headband (24) Left headband (25) Right headband (26) Back elastic strap (27) Headband fastening mechanism (loosing –...
