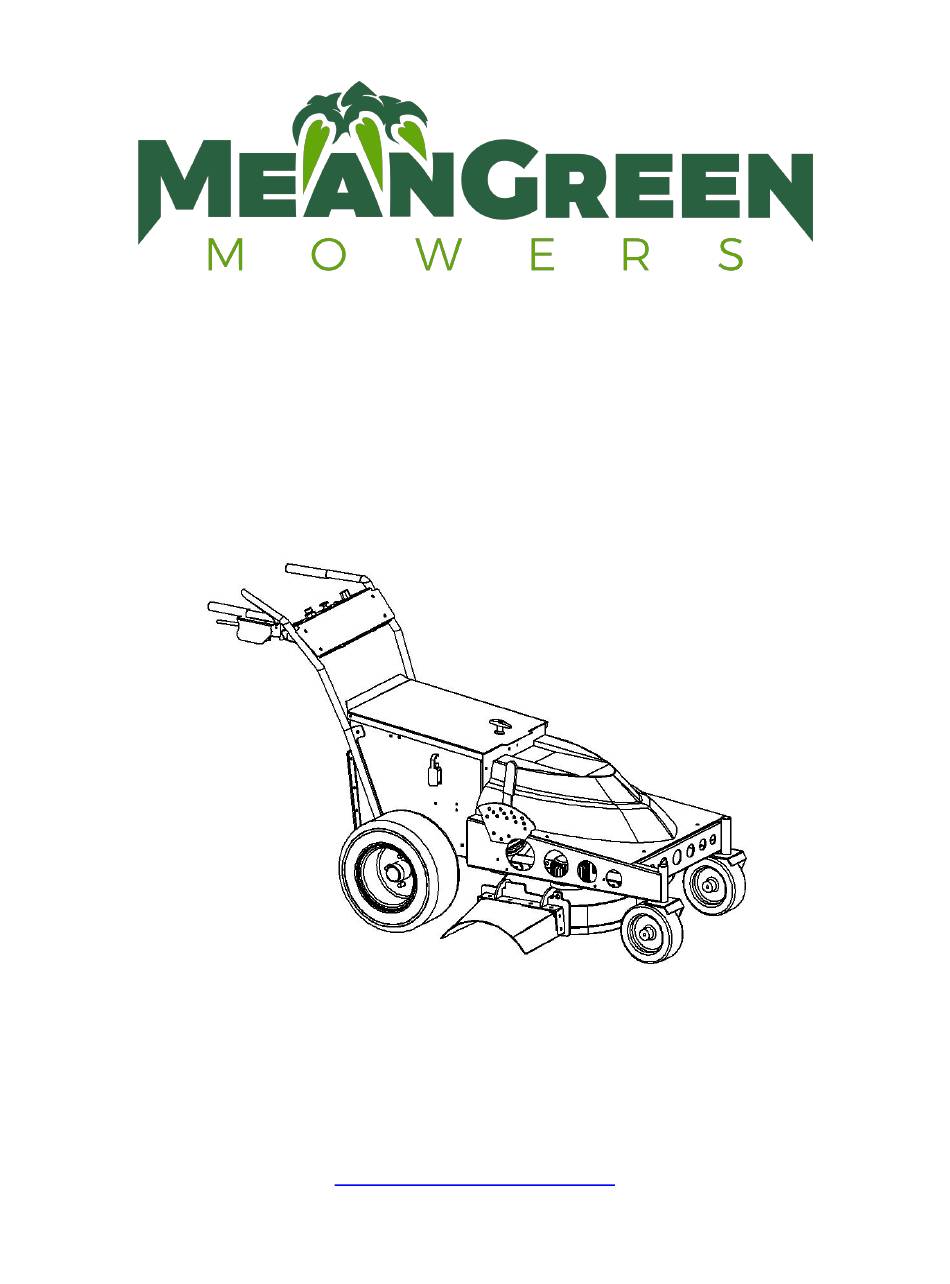

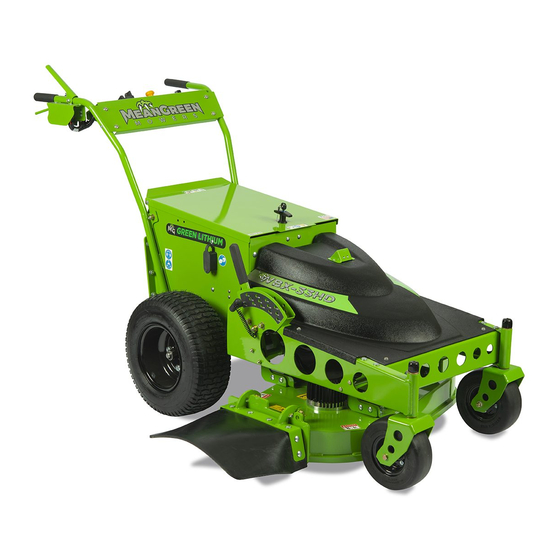

- Page 1 WBX-33 Walk Behind Operator’s Manual Mean Green Products, LLC 4404 Hamilton Cleves Rd. Ste. 2 Hamilton, OH 45013 513-738-4736 (Sales & Services) www.meangreenproducts.com...
-
Page 2: Table Of Contents
Index Page: General Information Warranty Information Warranty Registration Warranty Registration Card Safety Precautions Safety and Instruction Decal Mower Control Panel Blade Warning Light System Battery Capacity Indicator (Smartec) 11-15 Emergency Drive Brake Release Levers PTO Deck Blades ON/OFF Switch High/Low Blades Switch High/Low Drive Speed Control Switch Operation 17-18... -
Page 3: General Information
If a change has been made to your machine which is not reflected in this owner’s manual, or the parts manual, see your Mean Green Products dealer for current information and parts. - Page 4 Mean Green Products or an authorized dealer, in writing of the defect. In no event shall such notification be received by Mean Green Products, or an authorized dealer later than twenty- four (24) months from date of delivery. Within a reasonable time after such notification, Mean Green Products, will correct any defect in material or workmanship on the Mean Green Mower by repairing or replacing part(s) with either new or used replacement parts.
- Page 5 Some products, components or parts not manufactured by Mean Green Products. Repairs made by unauthorized persons. Damage caused by use of the Mean Green Mower for purposes other than those for which it was designed. Damages caused by disasters such as fire, flood, wind, and lightning. Damages caused by neglect, abuse, abnormal use, improper or unreasonable use, accident, negligence, or misuse such as water damage.
-
Page 6: Warranty Registration
This machine like any other powered equipment is potentially dangerous unless properly operated. Any operator must be cautious and keep safety in mind at all times. Any operator, prior to using the Mean Green Mower, should thoroughly familiarize himself with the owner's manual regarding operation and safety of the machine, as well as all safety warnings on the machine itself. -
Page 7: Safety Precautions
If an attachment or accessory has been installed, make sure current safety signs are visible. • Replacement decals can be ordered from Mean Green’s main office. • Expose the adhesive surface by peeling off the back of the decal and placing it onto a clean dry surface. - Page 8 MGUPN190 Blade Nut Torque- Displays the information required for tightening the blade nut . MGUPN067 Chute Operation- To prevent the uncontrolled discharge of debris from the deck, keep the chute in the down position when operating. MGUPN068 Deck Danger- Keep body parts away from deck blades to prevent serious injury to body parts. MGUPN069 48V Main Power Decal- This indicates the connection between the battery and the mower.
- Page 9 Shows a port that is used for charging the mower. MGUPN077 No Riders- When operating the mower, no person should ride or attempt to ride on the machine to prevent serious injury. MGUPN083 Mean Green Rear Logo- Displays the Mean Green logo on the back of the machine.
- Page 10 MGUPN129 Made in USA- Displays where the mower was manufactured. MGUPN266 Drive speed knob Blade high and low PTO on and off Key switch, on and off Battery gauge 1. Read manual before operation 2. Read and learn the manual 3.
-
Page 11: Mower Control Panel
Important: Red Battery Quick Disconnect Handle (Fig.7A) – (found in battery compartment) PULL Red Handle upward to disconnect all power to unit. (also see pages 13- 23) Disconnect with all maintenance, repairs, cleaning and transportation of mower!! Important: Mower Control Panel (Fig. 1) (May vary slightly due to model and year of manufacture) Fig. -
Page 12: Blade Warning Light System
READY sign or FAULT indications. NOTE: If FAULT occurs, first reset computer by turning key to OFF position and then to the ON position. If FAULT continues: Call your Mean Green Mowers Dealer Immediately! ***SEE Appendix Smartec pages 12-15 for detailed Battery Capacity Indications, Troubleshooting and Information Guide**** IMPORTANT: When battery voltage becomes low, drive motors will slow to “creep”... -
Page 17: Emergency Drive Brake Release Levers
Green Fig.1Ga & 1Gb: Emergency Manual Drive Brake Release Lever – IMPORTANT: If for any reason manual operation is needed to return to charging station or to move mower without battery power, push manual brake lever right and outward to release brake (located lower right side of mower beneath battery compartment) and push mower slowly back to desired location. -
Page 18: Pto Deck Blades On/Off Switch
Fig. 1C: PTO Deck Blades ON and OFF Switch: This switch engages the deck blade motors. Pull the switch up to engage blades and push switch down to disengage blade motors. IMPORTANT: ONLY engage Deck Blades when throttle lever is in the neutral position. NEVER engage blades when moving!!!! Fig. - Page 19 keep safety shields and covers in place. Always maintain a safe distance from people and pets when mowing. Always stop machine if someone enters the area. Avoid injury. Keep area clear of bystanders when engaging deck blade switch. Always operate machine in daylight or with adequate working lights. Follow daily and weekly checklists, making sure electrical connections are secured and bolts are tightened.
-
Page 20: Slope Operation
The Mean Green Mower is capable of operating horizontally (traverse) on moderate slopes. When operating on slopes up to 15 degrees, be aware of any conditions that may cause the mower drive tires to lose traction resulting in a possible loss of control of the machine. - Page 21 of what is located at the bottom of the slope. This will reduce the risk of the machine suddenly rolling over causing serious injury or death. Extreme caution should be used when there is a hazard located at the bottom of the slope. Some examples are: 1.
-
Page 22: Children
Children Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them. Never leave machine unattended with key in switch, especially with children present. Children or bystanders may be injured if they move or attempt to operate the machine while it is unattended. -
Page 23: Battery Compartment
Battery Compartment OPEN/CLOSE Handle and Battery Lock (Fig. 3D) Turn handle to open position to access battery compartment and lift battery compartment lid. Turn handle to closed position to secure battery compartment and lid when operating mower. Battery Lock available for securing Lithium Modules within mower unit. -
Page 24: Discharge Chute
Discharge Chute – (Fig. 3C) Found on right side of chassis. WARNING: Always keep Discharge Chute in the down position when mowing and blades are moving. Warning: Keep all shields in place at all times to prevent injury! DO NOT operate mower without discharge chute or other safety devices in place &... -
Page 25: Starting Your Mower
DANGER: Never work with blades while key is in the ignition switch. Always place deck blade switch in the disengaged position, release Throttle Lever & Operator Presence Safety Switch and turn key to the OFF position, remove key from switch and disconnect battery cables by pulling up on LARGE RED battery quick disconnect handle in battery box compartment! Wear gloves when handling blades. -
Page 26: Service
Exercise caution when working under the deck as the mower blades are extremely sharp. Wear gloves and use extra caution when servicing them. Use only genuine Mean Green Mower parts to ensure that original standards are maintained. Always remove key and disconnect battery cables by pulling up on LARGE RED battery quick disconnect handle in battery box compartment before working on this unit. -
Page 27: Tires
Some repairs require the assistance of a trained service mechanic and should not be attempted by unskilled personnel. Consult Mean Green Products when assistance is needed. Torque Values: WARNING: Particular attention must be given to tightening the drive wheel lug nuts and blade spindle bolts. -
Page 28: Mower Blade Installation
If they become damaged, repair or replace immediately. Never modify or remove safety devices. Electrical System Information The Mean Green Mower is powered by a 48-volt electrical system. It consists of the following components: WBX-33HD Walk Behind Mower 1. Deck controllers - (2) 2. -
Page 29: Battery Safety
Battery Maintenance Your Mean Green Mower is powered by 1 Lithium Module (LEM) which, when maintained properly, will provide years of useful life. For proper care, adhere to the following instructions: WARNING: Charge only with a Mean Green Mower approved charger. Do not use battery chargers other than those recommended by Mean Green Products. - Page 30 Chargers include: LEMC3548 (Standard Charger) and the LEMC4548 (Fast Charger) separate guidelines for each below! Both chargers will charge from a Standard 110-120V outlet and charging at 25 amps-48volts. This will be drawing around 13 amps from the 110-120V wall outlet. NOTE: It is recommended to have a dedicated circuit for charging!! DO NOT use extension cords with chargers!! To use chargers at 35 amps, you will need to connect to a 220-240 Volt outlet.
-
Page 31: Proper Connection Disconnection Of Charger Units
***Always refer to the Charger Manual for more information about the proper operation of the charger or call Mean Green Customer Service at: 513-738-4736 Charging Recommendations: SEE ALSO Lithium Energy Module Care Page 33 WARNING: Do not smoke while servicing the batteries. -
Page 32: Troubleshooting
To maximize battery life, it is best to fully charge batteries shortly after each use. SEE Lithium Energy Module Care Page 33 The Mean Green Mower charger is designed to remain plugged into the vehicle and turned ON during storage. If the charger remains on and connected it will automatically maintain the charge level of the battery pack. -
Page 33: Storage
The blade(s) are not sharp. Sharpen the blades. A cutting blade(s) is/are bent. Install new cutting blade(s). The deck is not level - Contact your Mean Green Products Dealer. The underside of the deck is dirty. Clean the underside of the deck. Tires improperly inflated. Adjust air pressure to proper psi (see pg.16) A blade spindle is bent. -
Page 34: Lithium Energy Module Maintenance And Care
Lithium Energy Module Maintenance and Care IMPORTANT In order to prolong the battery module cycle life and make sure the module stays in good condition, please read the following instructions: 1. Whenever a battery pack is fully discharged and automatically turned off, DO NOT USE IT AGAIN until it is recharged. - Page 35 Mean Green Mowers 4404 Hamilton Cleves Rd. Ste. 2 Hamilton, OH 45013 513-738-GREN (4736) Email: sales@meangreenproducts.com www.meangreenproducts.com...
