SIDE BAR FOR 99-08 CHEVY SILVERADO 1500/2500 EXT CAB
TEL:1-866-XANATOS
PARTS LIST:
1 Driver/Left Sidebar
1 Passenger/Right Sidebar
2 Front Mounting Brackets
2 Center Mounting Brackets
2 Rear Mounting Brackets
INSTALLATION INSTRUCTIONS
PART#:9B035701A1SS\9B035701B1A

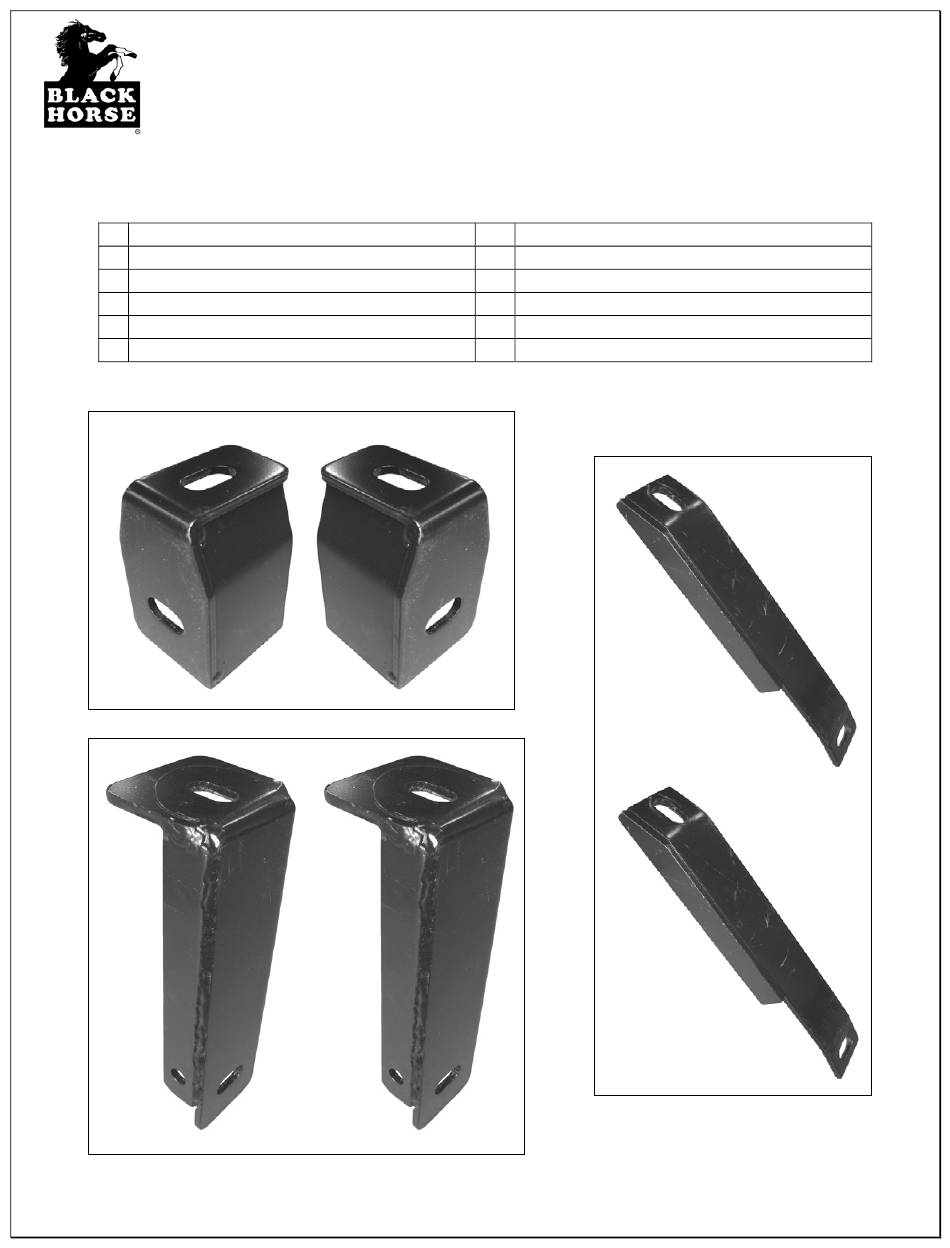

Front Mounting
Brackets
Rear Mounting
Brackets
4 ½" x 2" Hex Head Bolts
4 ½" Lock Washers
4 ½" ID x 1 3/8" OD x 3/32" Flat Washers
2 10-1.50mm x 25mm Hex Head Bolts
2 10mm Lock Washers
2 10mm ID x 26mm OD x 1.5mm Flat Washers
Page 1 of 3
Center Mounting
Brackets
Advertisement
Table of Contents
Related Manuals for Black Horse 9B035701A1SS
Summary of Contents for Black Horse 9B035701A1SS
- Page 1 INSTALLATION INSTRUCTIONS PART#:9B035701A1SS\9B035701B1A SIDE BAR FOR 99-08 CHEVY SILVERADO 1500/2500 EXT CAB TEL:1-866-XANATOS PARTS LIST: 1 Driver/Left Sidebar 4 ½” x 2” Hex Head Bolts 1 Passenger/Right Sidebar 4 ½” Lock Washers 2 Front Mounting Brackets 4 ½” ID x 1 3/8” OD x 3/32” Flat Washers 2 Center Mounting Brackets 2 10-1.50mm x 25mm Hex Head Bolts...
- Page 2 PROCEDURE: 1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 2. From underside of vehicle, remove the driver side body mount bolts. NOTE: Do not remove body mount bushings. 3. Partially install front, center, and rear Mounting Brackets to vehicle using the factory body mount bolts removed in step two.
- Page 3 10mm x 25mm Hex Head Bolt 10mm Lock Washer 10mm Flat Washer Center Mounting Bracket Fig 2 Rear Mounting Bracket ½” x 2” Hex Head Bolt ½” Lock Washer ½” Flat Washer Fig 3 Installation Complete Fig 4 Page 3 of 3...
