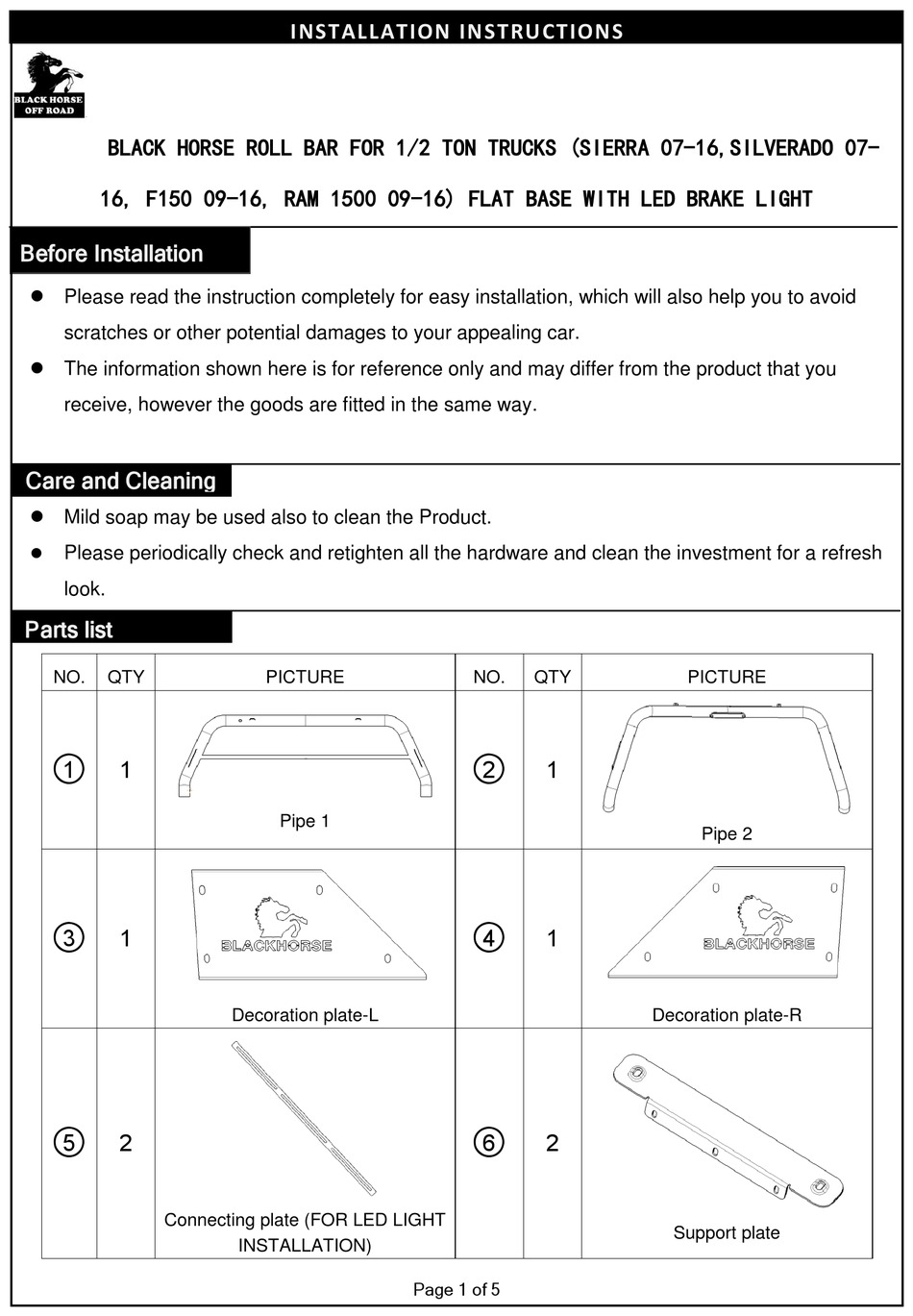

BLACK HORSE ROLL BAR FOR 1/2 TON TRUCKS (SIERRA 07-16,SILVERADO 07-
16, F150 09-16, RAM 1500 09-16) FLAT BASE WITH LED BRAKE LIGHT
Before Installation
Please read the instruction completely for easy installation, which will also help you to avoid
scratches or other potential damages to your appealing car.
The information shown here is for reference only and may differ from the product that you
receive, however the goods are fitted in the same way.
Care and Cleaning
Mild soap may be used also to clean the Product.
Please periodically check and retighten all the hardware and clean the investment for a refresh
look.
Parts list
NO.
QTY
○
1
1
○
3
1
○
5
2
Connecting plate (FOR LED LIGHT
INSTALLATION INSTRUCTIONS
Pipe 1
Decoration plate-L
INSTALLATION)
NO.
QTY
○
2
1
○
4
1
○
6
2
Page 1 of 5
Pipe 2
Decoration plate-R
Support plate
Advertisement
Table of Contents
Related Manuals for Black Horse RB001BK
Summary of Contents for Black Horse RB001BK
- Page 1 INSTALLATION INSTRUCTIONS BLACK HORSE ROLL BAR FOR 1/2 TON TRUCKS (SIERRA 07-16,SILVERADO 07- 16, F150 09-16, RAM 1500 09-16) FLAT BASE WITH LED BRAKE LIGHT Before Installation Please read the instruction completely for easy installation, which will also help you to avoid scratches or other potential damages to your appealing car.
- Page 2 INSTALLATION INSTRUCTIONS ○ ○ Gum cover Allen wrench S=8 ○ ○ Allen wrench S=4 Flat washer D6 ○ ○ Spring washer D6 Button head allen bolts M12-40 ○ ○ Hex nut M6 Button head allen bolts M6-30 ○ ○ Spring washer D12 Button head allen bolts M6-20 ○...
- Page 3 INSTALLATION INSTRUCTIONS Installation Fig. Step 1：Verify all parts are present. Step 2：Using wrench 9, install 1/2 main pipes and connecting plate 5 together with parts 10/11/13/14 as shown. 9、10、11、13、14 Step3: Using wrench 9, install 3/4 decoration plate together with parts 10/11/13/15 as shown. 9、10、11、13、15 Step4：Using wrench 7, install support plate 6 and gum cover 8 with part 12.
- Page 4 INSTALLATION INSTRUCTIONS Step 4：Fix the roll bar on the trunk with parts 16/17/18/19 (need to drill the trunk if there’s no installation holes). Test and make sure that the roll bar is steadily fixed, and then tighten all the hardware. 16、17、18、19 Step 6：Installation is finished，pick up all tools.
- Page 5 INSTALLATION INSTRUCTIONS NOTE Any damages and losses caused by improper installation and application, goes beyond our quality warranty. Page 5 of 5...
