Eurekazone EZ SMART Quick Start Manual

DUST PORT

The EZ Smart Dust Port can easily be shaped and attached to the front of the blade housing on
most circular saws on the market to better extract saw dust with your vacuum.
Notice: Prior to installing your EZ Smart Dust Port, please
ensure that you have read and fully understand these
instructions and those provided for any power tools that you
may use during this installation. Disconnect your saw from
the power supply while completing this installation. When
required, use hearing and eye protection.

Parts Included

1 - Dust Port
2 - 8-32 Washers
2 - 8-32 machine screws
1 - Aluminum Dust Port Hose Adapter

Installing The Dust Port

Step 1. Set the saw on a solid work surface and
unplug the saw's electrical supply before beginning
the installation process. See fig. 1
Step 2. Remove the blade from the saw as show in
fig. 2
Step 3. Using a hot air gun or blow dryer, heat the
pre shaped dust port until the wings become
pliable. This will aid in shaping the dust port to your
saw. Use caution as the plastic begins to heat to
avoid injury or burns. See Fig. 3
Step 4. While the plastic is still pliable, place it over
your saw's housing in the desired position and form
it to the shape of the housing. Hold this shape for a
few moments while the plastic cools to retain the
shape. Note: Make sure the placement of the dust
port does not interfere with the saws beveling or
tilt. See Fig. 4-1 & Fig. 4-2
Phone (352) 620-2262 Fax (352) 620-2576 Tech (877) 681-7955
Eurekazone, LLC 1904 NE Jacksonville Rd Ocala, FL 34470

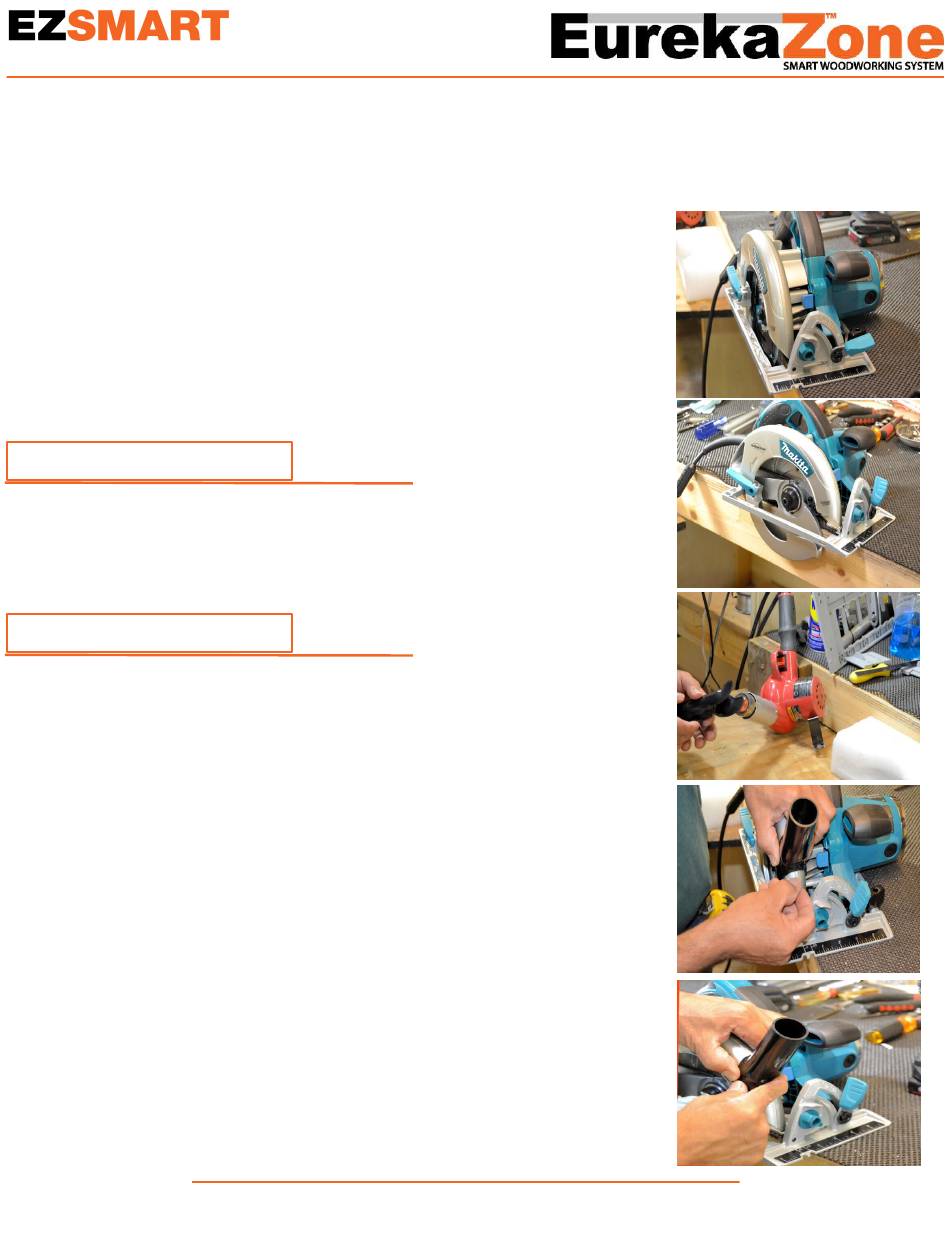

Fig. 1
