Eurekazone EZ Smart Manual

DUST SHIELD

The EZ Smart Dust Shield can easily be shaped and attached to the front of the blade housing on
most circular saws on the market. The EZ Smart Dust Shield helps to contain the saw dust at the
front of the blade until it can be extracted through the EZ Smart Dust Port
Notice: Prior to installing your EZ Smart Dust Shield, please
ensure that you have read and fully understand these
instructions and those provided for any power tools that you
may use during this installation. Disconnect your saw from
the power supply while completing this installation. When
required, use hearing and eye protection.

Parts Included

1 - Dust Shield
1 – Strip Double sided Tape

Installing The Dust Shield

Step 1. Set the saw on a solid work surface and
unplug the saw's electrical supply before beginning
the installation process. See fig. 1
Step 2. Remove the blade from the saw & Lower
the saw to it's lowest position & as shown in fig. 2
Step 3. Remove the screw and bumper that
connects the blade housing to the motor housing
as shown in Fig. 3
Step 4. Clean the dust shield with a dry towel
removing any dust or debris Them apply strips of
double sided tape to the dust shield nearest to the
mounting hole end. Then peel off the protective
sheeting as shown in Fig. 4-1 & Fig. 4-2.
*
Sold Separately
Phone (352) 620-2262 Fax (352) 620-2576 Tech (877) 681-7955
Eurekazone, LLC 1904 NE Jacksonville Rd Ocala, FL 34470
*

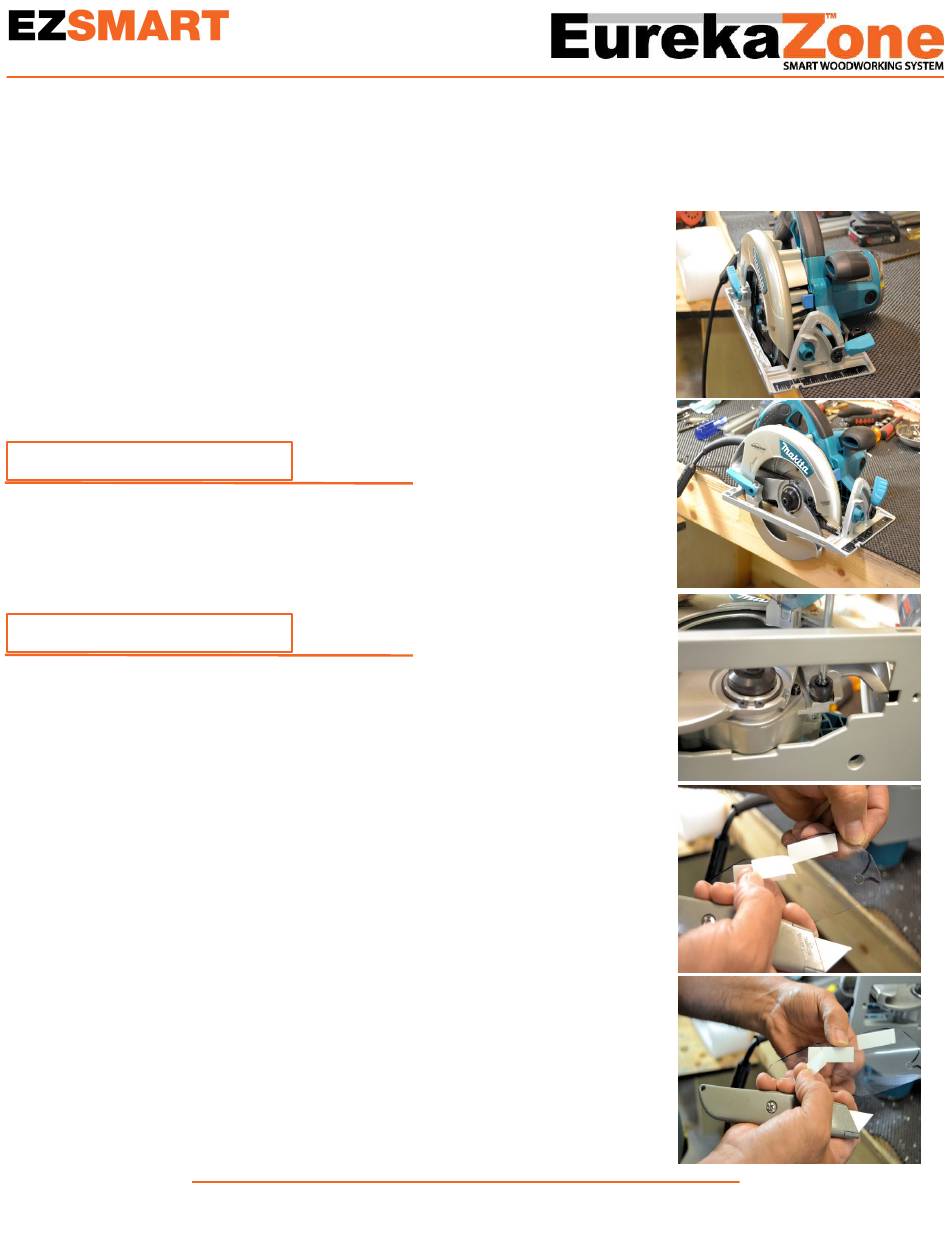

Fig. 1
Fig. 2
Fig. 3
Fig. 4-1
Fig. 4-2
techsupport@eurekazone.com
with your vacuum.
