Eurekazone EZ SMART Quick Start Manual

CABINETMAKER WOODWORKING SYSTEM
The EZ SMART Cabinetmaker Woodworking System is useful for making repeatable cross-cuts used in the
making of parts for cabinets. It is comprised of the EZ SMART Smart Square with handle and the EZ SMART
Repeater that are used with a section of EZ SMART Guide Rail (sold separately). The Smart Square is not only
used to square the Guide Rail to the workpiece for 90 degree cuts but is adjustable to allow for angled cuts
greater than 90 degrees or less than 90 degrees. The Repeater is extendable to the right or to the left to
handle any size workpiece. The Cabinetmaker can also be combined with a second Repeater (sold separately)
for added versatility.
When using the EZ SMART Cabinetmaker Woodworking System with any power tool, be
sure you have read and understand the operating manual for the tool before operation.
Be sure to use the tool safely. Do not disable any built-in safety features. Be sure to
follow safe practices when using the Cabinetmaker with your power tools. If a task
seems like it might be potentially unsafe, do not attempt. Do not operate any tool on
the Cabinetmaker if you are tired or distracted in any way.

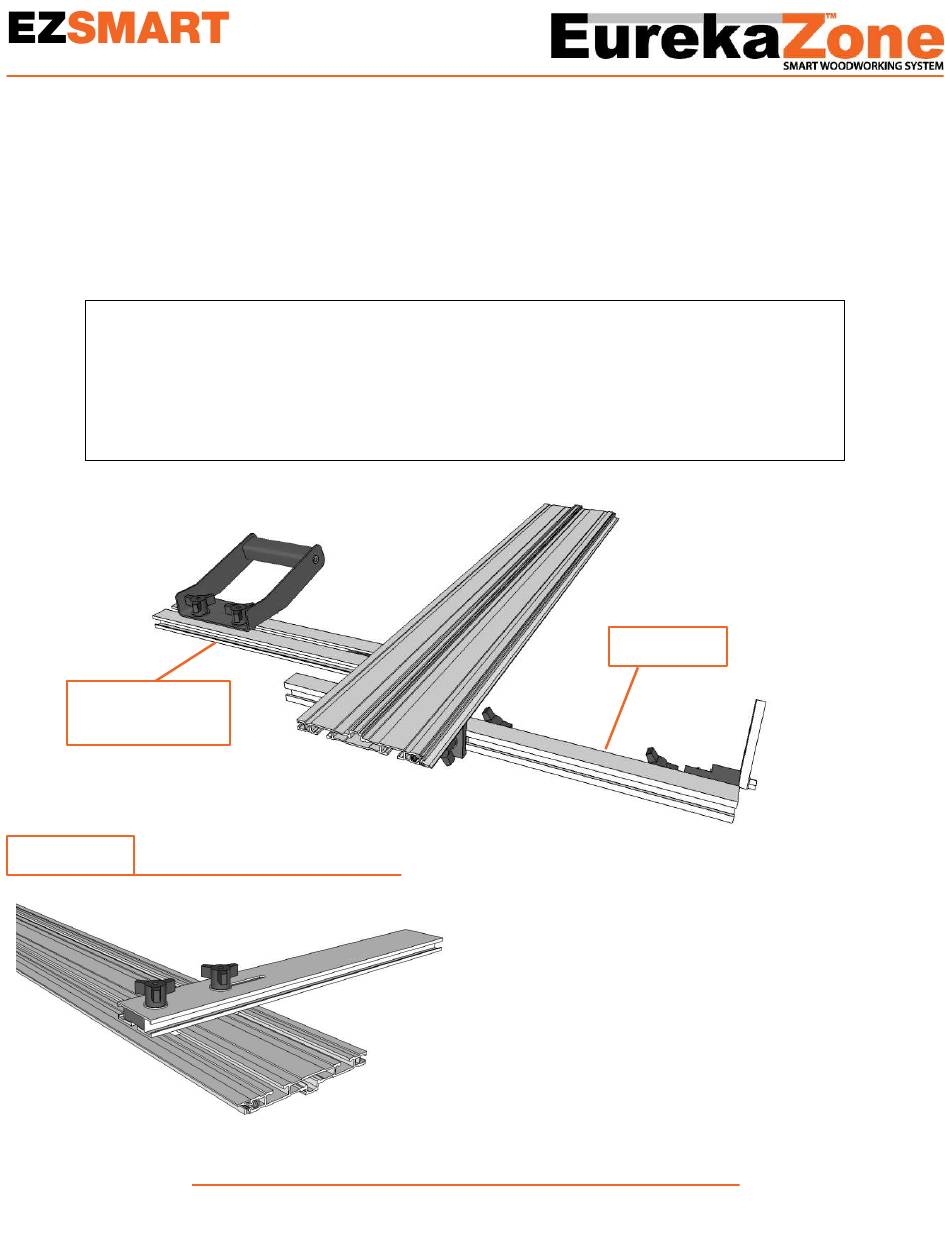

Smart Square
with Handle

Attach the Smart Square

Step 1
Phone (352) 620-2262 Fax (352) 620-2576
Page 1
Eurekazone, LLC 1904 NE Jacksonville Rd Ocala, FL 34470
The Smart Square is attached along the non-cutting
side of the Guide Rail.
It is best to attach the Smart Square about 4-12"
from the end of the Guide Rail. This allows space
for the Repeater to be installed and space for the
saw to rest before starting a cut.
A speed square can be used to set the desired angle.
Once the angle is set, the knobs may be tightened.
techsupport@eurekazone.com
Repeater
www.eurekazone.com
v14-01
