SOFTLINK WACO WM868 Manual

Wireless communication system
Hide thumbs Also See for WACO WM868:
Table of Contents

Advertisement

Quick Links

Download this manual
WIRELESS COMMUNICATION SYSTEM

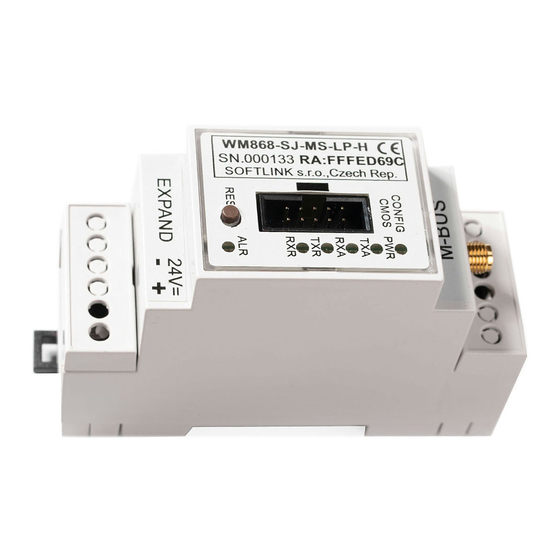

WACO WM868
WM868-MS-LP-H
Revision 3.0
SOFTLINK s.r.o., Tomkova 409, 278 01 Kralupy nad Vltavou, Czech Republic
Phone.: +420 315707111,
e-mail:
sales@softlink.cz,
www.softlink.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WACO WM868 and is the answer not in the manual?

Questions and answers

Related Manuals for SOFTLINK WACO WM868

Summary of Contents for SOFTLINK WACO WM868

  • Page 1 WIRELESS COMMUNICATION SYSTEM WACO WM868 WM868-MS-LP-H Revision 3.0 SOFTLINK s.r.o., Tomkova 409, 278 01 Kralupy nad Vltavou, Czech Republic Phone.: +420 315707111, e-mail: sales@softlink.cz, www.softlink.cz...

  • Page 2: Table Of Contents

    Contents 1 Introduction 1.1 WACO communication system ........1.2 Module usage .
  • Page 3 List of Tables Overview of WM868-MS-LP-H module technical parameters ..... . . Overview of WM868-MS-LP-H module configuration parameters ....List of Figures Principle of transparent data transfer in WACO RF-network .

  • Page 4: Introduction

    Introduction This document describes features, parameters and setting possibilities of the WM868-MS-LP-H module, which is used for transparent data transfer among remote segments of virtual bus through the WACO radio-frequency network. WACO communication system WACO (Wireless Automatic Collector) is radio frequency (RF) communication system intended especially for the remote reading of consumption meters (smart metering area), automatic data collection from sensors (telemetry area), and bi-directional data transfer among control, sensing and actuating elements in automatic control systems (industrial automation area).

  • Page 5: Hardware Features And Power Supplying

    Figure 1: Principle of transparent data transfer in WACO RF-network Hardware features and power supplying The module is enclosed in a plastic casing adapted for mounting on a DIN-rail. The box has a standard circuit ” breaker” profile and width of two standard DIN-modules. The module is equipped with a M-Bus data bus screw-on terminal with two clamps.

  • Page 6: Technical Parameters Overview

    Technical parameters overview Overview of WM868-MS-LP-H module technical parameters is shown in the Table1 below. Table 1: Overview of WM868-MS-LP-H module technical parameters RF subsystem parameters Frequency band 868,0 - 868,6 Modulation Number of channels Bandwidth Transmitting power Receiver sensitivity Communication protocol WACO Transmission speed...

  • Page 7: Configuration Of The Wm868-Ms-Lp-H Module

    Configuration of the WM868-MS-LP-H module Configuration parameters of the WM868-MS-LP-H module can be displayed and changed from the common com- puter (PC) by one of these methods: - with using of USB-CMOS” converter and configuration cable connected to the module ”...

  • Page 8: Configuration Via Usb Port Of Computer

    Figure 4: Configuration via USB port of computer 3.1.2 Using of PuTTy” freeware program for configuration ” The module configuration can be done with using of any suitable program for the serial line communication. The description bellow is relevant for the open-source software PuTTY”...

  • Page 9: Using Of

    Figure 6: Open terminal window for module configuration via serial line 3.1.3 General rules for configuration of the module by configuration cable Activate the terminal window for the configuration via the configuration cable according to the instructions above. These general rules are valid for entering commands into the command line: the command must be entered only when a prompt for command appears in front of the cursor mark (colored or flashing little square);...

  • Page 10: Principle Of Remote Configuration Via Radio

    Figure 8: Principle of remote configuration via radio is described in detail in the WACO RFAN 3.x – Software description and configuration” manual, where there are ” also described in details the steps how to find out current setting of a particular parameter and how to change the setting.

  • Page 11: Entering Of Devices And Variables Into The Remote Configuration Window

    - select variable that should be changed (or read) - launch function GET” for reading current value, or SET” for changing of value or WALK” for reading of ” ” ” all values When performing of configuration (i. e. making changes or just reading of current settings) keep these general rules: 1.

  • Page 12: Progress Of Getting Values Of Preselected Variables Of The Module By Using Of " Get" Command

    in case the variable has an index, put the index number in (information box Has Index“ is ticked and Index“ ” ” box is editable); set up required value of the variable into the Value“ field. If the variable will be just read (checked its current ”...

  • Page 13: Usb Gateway" And

    Connect the converter USB-CMOS“ to your computer and open a Device Manager” tool. The converter with the ” ” disabled driver will be displayed in the top right corner of the window as Other Devices” (see figure left). ” Figure 12: Appearance of converter without driver in the Windows Device Manager”...

  • Page 14: Manual Selection Of The Driver File From A Folder

    Figure 14: Manual selection of the driver file from a folder Figure 15: USB driver installation A new Driver software installation” window will appear with standard red unknown driver producer” Windows ” ” system warning. Click to Install the software anyway” option and the installation process will launch (*). After ”...
  • Page 15 3.4.2 How to disable driver signature enforcement in Windows 10 system Enforcement of signed driver installation in Windows 10 can be switched-off by following procedure: click to Windows” icon in left the bottom left corner of the screen and choose Settings”...

  • Page 16: Setting Of Wm868-Ms-Lp-H Module Parameters By Configuration Cable

    Setting of WM868-MS-LP-H module parameters by configuration cable In following part of the document there is a description of these parameters of the WM868-MS-LP-H module, that can be displayed and examined from PC connected to the module by configuration cable. Some of the parameters can be changed by configuration commands entered from the console”...
  • Page 17 Overview of configuration parameters with short description of their meaning can be also found in table on the page 21. The detailed description of individual parameters and their setting possibilities can be found in the following part of chapter 3.5. 3.5.2 Configuration”...
  • Page 18 Frequency channel of the module can be set by ”/c [number]” command, where value 0, 1, or 2 means number of frequency channel to be tuned. Change of frequency channel is effective only after module reset. Example of sequence of commands for module setting to the frequency channel ”1”: sysmon>/c 1 sysmon>/W sysmon>/x...
  • Page 19 As seen in the example, by enabling of ”R” function the original ”C” function was automatically switched off and it had no influence on the ”W” function. Example of disabling of ”W” function and corresponding record in the module configuration summary: RF Driver flags: sysmon>/F -W RF Driver flags:...

  • Page 20: Principle Of Addressing In The Waco Virtual Bus" Application

    Commands for setting of addressing in virtual bus Virtual BUS” application of the WACO communication system (port ”32”) enables organizing of modules of ” WACO WM868 series into the wireless virtual bus”, where the communication is going on in the master-slave”...
  • Page 21 Alarm address (independently on the ”Virtual BUS” setting). As there is no alarm application supported in current version of the module, it is recommended not to use this command. As the WM868-MS-LP-H module with M-Bus interface of Slave” type is always installed to the main segment ”...
  • Page 22 Baud: 9600 8E1 Interbyte timeout: 10 ms 3.5.6 Setting of test broadcasting These commands can be used for setting of test broadcasting function of the module, that can be used for evaluation of radio signal in the installation site. When this function is switched on, the module broadcasts test messages in regular intervals and a quality of their reception can be evaluated around the module with using of WACO RF analyzer or any similar device.

  • Page 23: Setting Of Wm868-Ms-Lp-H Module Parameters Via Radio

    Setting of WM868-MS-LP-H module parameters via radio Almost all parameters described in paragraph Setting of WM868-MS-LP-H module parameters by configuration ” cable” can be set alternatively via radio, with using of ”WACO Radio-Frequency Analyzer RFAN 3.x”. General description of configuration via radio can be found in section Configuration of the module via radio”, where ”...

  • Page 24: Overview Of Wm868-Ms-Lp-H Module Configuration Parameters

    3.6.1 Overview of module configuration parameters Overview of configuration parameters that can be used for user settings of the WM868-MS-LP-H module is shown in the Table below. The parameters are presented in the same order as they appear in the List of configuration parameters (see paragraph 3.5.1).

  • Page 25: Structure Of Module Data Messages

    Structure of module data messages The module communicates with other elements of the WACO RF network by data messages of the WACO SLRF communication protocol, which observes ISO/OSI communication model, its typical features are high effectivity and reliability, and enables huge variability of supported applications. A structure of individual layers of the WACO SLRF protocol is shown in the figure 19.

  • Page 26: Operational Conditions

    Operational conditions This section of the document describes basic recommendations for transportation, storing, installation and operation of WM868-MS-LP-H radio modules. General operational risks The WM868-MS-LP-H radio-modules are electronic devices powered from an external power source that can be used for transparent data transfer among the remote segments of M-Bus data bus through the WACO RF network. During the operation of the modules there are following potential risks: 4.1.1 Risk of mechanical damage...

  • Page 27: Safety Precautions

    Safety precautions Warning! Mechanical and electrical installation of the WM868-MS-LP-H module can be provided only by a person with necessary qualification in electrical engineering. Environmental protection and recycling The equipment does not contain exchangeable components, which require compliance with specific rules in terms of environmental protection for their replacing, storage and disposal.

  • Page 28: Module Replacement

    record information about the module installation (serial number, position, picture of installation...) to the operational documentation under internal rules. When locating installation site, selecting antenna type and antenna position it is necessary to take into account con- ditions for radio signal propagation in the area of installation. The conditions is possible either estimate empirically on the base of previous experience, or accomplish a measurement of the signal strength by the signal analyzer.

  • Page 29: Troubleshooting

    The greatest risks of permanent breakdown of module RF communication (or communication breakdown of local wired bus) are commonly caused by human activities within the installation site. It is mainly about the following risks: turning off the module power (e.g. circuit breaker failure or unintentional shutdown); temporary or permanent shading of the antenna (e.g.
  • Page 30 5.1.3 Transmitter and receiver failures Transmission and reception of RF messages is signaled by flashing of yellow ”TXA” / ”RXA” LEDs and red ”ALR” LED on the module front panel. The ”TXA” LED blinks when a radio message is transmitted, the ”RXA” LED blinks when a radio-message is received.

  • Page 31: Power Supplying Failures

    5.1.4 Data bus failures Functioning of data bus is signalled by flashing of pair of yellow ”TXR” and ”RXR” LEDs, that signal transmitting of a message into the bus (flashing of ”TXR” LED) and receiving of a message from the bus (flashing of ”RXR” LED).

  • Page 32: Additional Information

    This manual is focused on description, parameters and configuration options of radio modules WM868-MS-LP-H of the WACO RF system, operating in the 868 MHz band, that are a part of the Softlink’s wacoSystem product family. More information about all WM868 (WACO), WB169 and WB868 (Wireless M-BUS), or WS868 (Sigfox) series of the modules can be found on the manufacturer website: www.wacosystem.com...
