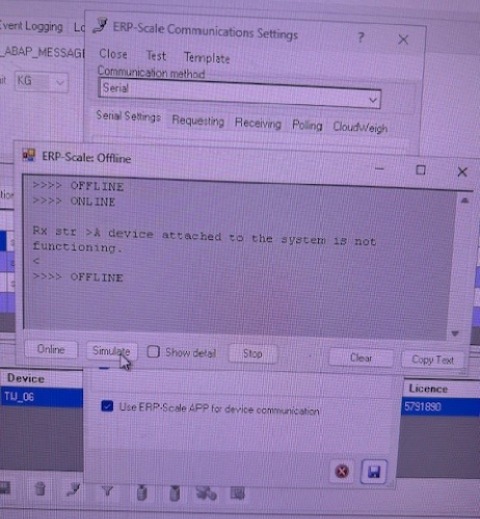

We are having communication problems with the scale. is there any trouble shot we can execute to find out the issue_

User image 6840ad618427e
0

Related Manuals for Global 318513

Summary of Contents for Global 318513

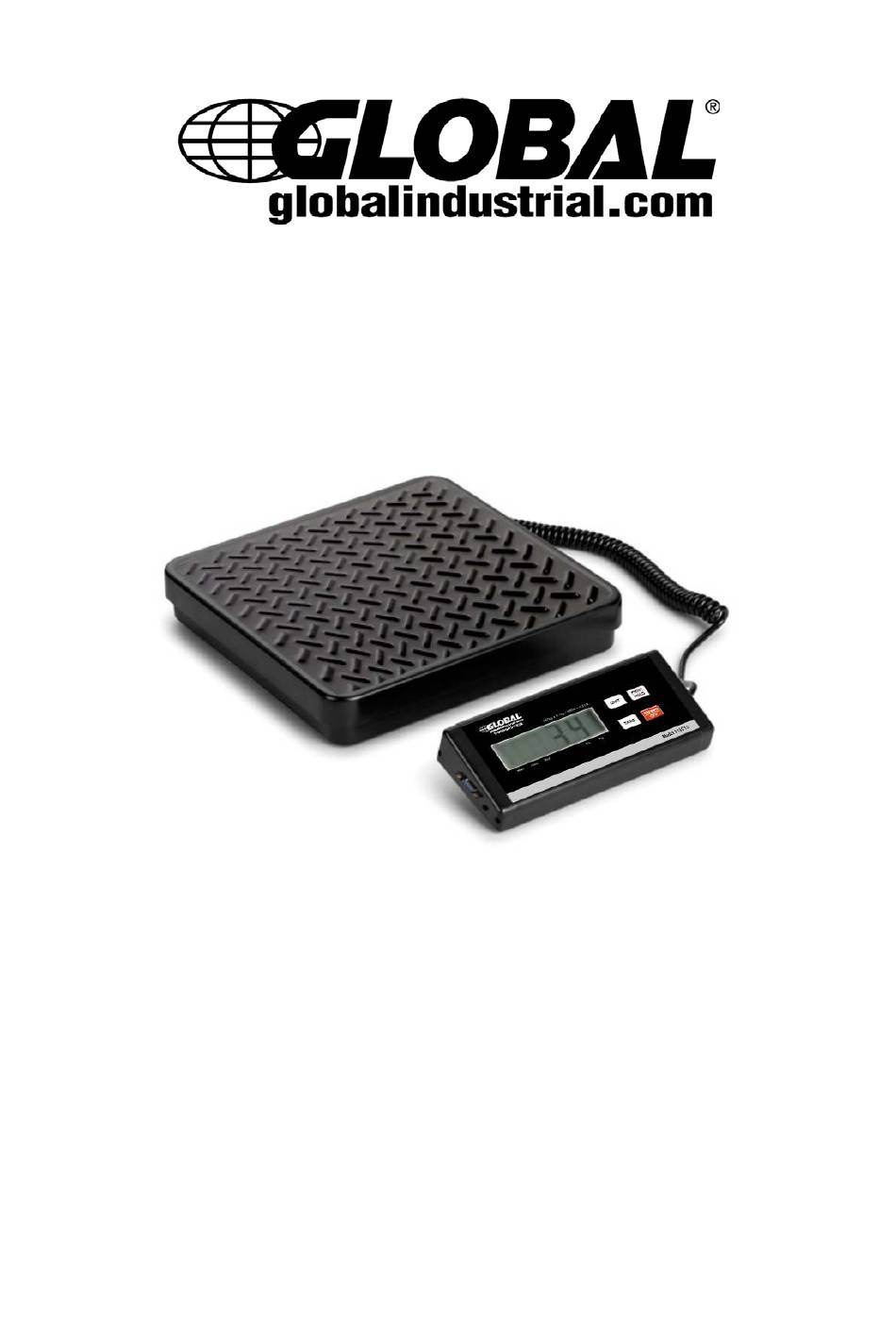

  • Page 1 318513 Operation Manual Contents subject to change without notice Version 1.0 Issue AA...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION and INSTALLATION ................. 1     General and Safety Information ........................1  Specifications ..............................1  Contents ................................1  OVERVIEW OF CONTROLS AND FUNCTIONS ............2     Indicator Display Character Definitions ....................2  Indicator Display ............................. 3  Function Keys ..............................

  • Page 4: Introduction And Installation

     Electronic scales are precision instruments. Do not operate near cell phones, radios, computers or other electronic devices that emit radio frequencies that may cause unstable readings.  Avoid using in heavy vibration or heavy airflow conditions. Specifications Model 318513 Max Capacity 400lb (182kg) Readability 0.5lb (0.2kg) Display Resolution...

  • Page 5: Overview Of Controls And Functions

    2. OVERVIEW OF CONTROLS AND FUNCTIONS Indicator Display Character Definitions www.globalindustrial.com 318513    . 2   ...

  • Page 6: Indicator Display

    >3 seconds Power off the scale Setup or Calibration mode Exit to normal weighing mode Weighing mode Enter USER parameter setup (more than 3 seconds) mode Weighing mode Enter calibration mode (more than 3 seconds) www.globalindustrial.com 318513    . 3   ...

  • Page 7: Operations

    3. Put the material or object to be weighed in the container. The net weight will be displayed. 4. To exit tare mode, remove all weight from the scale. The display will show a negative weight. Press the TARE key to return the display to zero. www.globalindustrial.com 318513    . 4   ...

  • Page 8: Calibration

    EEPROM. Then it will auto-reset, and be directed to weighing mode. If an error occurred in calibration, the scale will display “ ” and then it necessary to repeat the CAL.Er procedure from step2. www.globalindustrial.com 318513    . 5   ...

  • Page 9: Configuration Parameters Setup

    4 - calibration zero –point ±5%FS; 0 - 9 5 - calibration zero –point ±10%FS; 6 - calibration zero –point ±20%FS; 7 - calibration zero –point ±50%FS; 8 - calibration zero –point ±100%FS; 9 - no limitation; www.globalindustrial.com 318513    . 6   ...
  • Page 10 0=BMI function is disabled 1=BMI function is enabled 0= Do not recover parameters (Cxx & Uxx) to default 1= Recover all parameters to default setting CONFIG settings should only be performed by individuals with the required technical knowledge. www.globalindustrial.com 318513    . 7   ...
  • Page 11 0.0005 lb 0.0002 kg 0.0005 lb 0.005 lb 0.002 kg 0.005 lb 0.05 lb 0.02 kg 0.05 lb 0.5 lb 0.2 kg 0.5 lb 5 lb 2 kg 5 lb 50 lb 20 kg 50 lb www.globalindustrial.com 318513    . 8   ...
  • Page 12 ” and “ ” is flashed, press dEF.? the ZERO/ON/OFF key to exit this mode and not to recover parameters. NOTE: Different setting of the Configuration Parameters can result in the scale having a different performance! www.globalindustrial.com 318513    . 9   ...

  • Page 13: User Parameters Setup

    5=output weight, unit and status data one time when scale becomes stable; 6=output gross, tare, net weight, unit and status data one time when scale becomes stable; 7=Command –response mode. Baud rate for Serial communication: 0=1200，1=2400，2=4800；3=9600；4=19200 Serial communication data format: 0=8N1；1=7O1；2=7E1 www.globalindustrial.com 318513    . 10   ...
  • Page 14 The length of the weight field will be 8 digit weight data, one for minus sign, one for decimal point, two for measure unit (e.g. “lb”, “kg”). If the unit is lb:oz, another two for www.globalindustrial.com 318513    . 11   ...
  • Page 15 (3). Command: Z<CR> (5ah 0dh) Response: <LF>H1H2H3<CR><ETX> Zero function is activated, and then it returns to current scale status, similar to pressing the ZERO key. If ZERO function cannot be activated, it will return to current scale status. www.globalindustrial.com 318513    . 12   ...
  • Page 16 0= not at zero 0= not over 00=not define point capacity 11= not define 1= at zero point 1= over capacity 0=not AD over 0=not Zero Over 0= gross weight 1=AD over 1=Zero Over 1= net weight www.globalindustrial.com 318513    . 13   ...

  • Page 17: Symbol Definitions

    CAL-P -Error in calibration CAL.Er -The setting full capacity will be displayed CAP.-- -No. x configuration parameter is set to y -No. x user parameter is set to y -Battery voltage is below 4.2V Lo.bAt www.globalindustrial.com 318513    . 14   ...

  • Page 18: Trouble Shooting

    1. An object is stuck between the 1. Remove the object Weighing is not load cell and scale base 2. Perform calibration accurate 2. Load cell received a heavy 3. Place the load on the center of impact the weighing platform www.globalindustrial.com 318513    . 15   ...
  • Page 19 318513    . 16   ...
