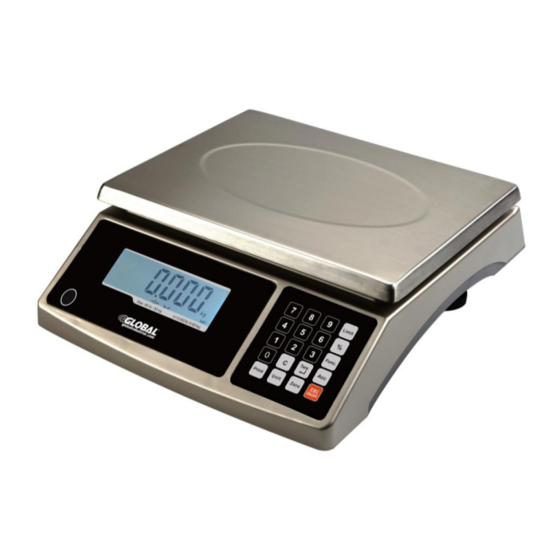

- Page 1 Electronic Counting Scale Model 244280 USER MANUAL Please read entire manual carefully prior to operation. For additional questions or concerns, contact Global Industrial Customer Service at 1-800-645-2986 or visit www.globalindustrial.com. Keep this manual for future use.
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ......................1 General and Safety Information ........................1 Specifications ..............................1 2. Unpacking and Setup ....................2 Contents ................................2 3. OVERVIEW OF CONTROLS AND FUNCTIONS ............3 3.1 Front Display ............................. 3 3.2 Indicator Display Character Definitions ..................... 4 3.3 Key Functions ............................ -
Page 4: Introduction
Over time, the operating time per charge will degrade. If the operating time is no longer acceptable even after recharging, the battery must be replaced. Contact Global Industrial for additional information. Electronic scales are precision instruments. Do not operate near cell phones, radios, computers or other electronic devices that emit radio frequencies that may cause unstable readings. -
Page 5: Unpacking And Setup
If the scale will be stored or transported in the future, save the packaging material to ensure the best possible protection for the scale. Contents Scale 12V 500mA AC adapter, UL User Manual 244280 www.globalindustrial.com... -
Page 6: Overview Of Controls And Functions
HI - Check-weighing is enabled. Current data is above the specified upper limit. OK - Check-weighing is enabled. Current data is between the specified upper and lower limits. LO - Check-weighing is enabled. Current data is below the specified lower limits. - Battery level. 244280 www.globalindustrial.com... -
Page 7: Indicator Display Character Definitions
3.2 Indicator Display Character Definitions 244280 www.globalindustrial.com... -
Page 8: Key Functions
Press to enter check weighing mode, set Hi and Lo value Press to enter % weighing mode In counting mode, press to display unit weight(g/pcs), total weight(kg) or count(pcs) Press to enter into counting mode Press to exit the current working mode and return to normal weighing mode 244280 www.globalindustrial.com... -
Page 9: Operations
4.3 Taring Zero the scale by pressing the ZERO key if necessary when reading is stable. The zero indicator willbe on. Place a container on the platform, a value for its weight will be displayed. 244280 www.globalindustrial.com... -
Page 10: Changing The Unit Of Measure
When a weight is placed on the scale the HI/OK/LO symbol will be shown if the weight is above or below the limits and the beeper function will sound as described below. BOTH LIMITS SET The display will show OK and the beeper function will sound when the weight is between the limits. 244280 www.globalindustrial.com... -
Page 11: Counting Mode
The scale will allow a sample weight to be shown as 1% - 100%. Then any other weight placed on the scale will be displayed as a percentage of the original sample. Press % key to enter percentage weighing mode, the display will show “SPL.100%”. Press 0 key to set to 1%, display shows “SPL.001” 244280 www.globalindustrial.com... -
Page 12: Manual Accumulation
Note: In all cases the scale must return to zero or a negative number before another sample can be added to the memory. More product can then be added and ACCU pressed again. This can continue for up to 99 entries, or until the capacity weight display is exceeded. 244280 www.globalindustrial.com... -
Page 13: Automatic Accumulation
Tare: xxx.xxxkg Net: xxx.xxxkg Pc.wt.: xxxx.xxg Count: xxxxxxxxxpcs ACC.N: xxxxxxxxx Total: xxxxxxxxxpcs In % weighing mode, when reading is stable, press Print key to output data via RS232 interface: Gross: xxx.xxxkg Tare: xxx.xxxkg Net: xxx.xxxkg 100%.WT:xxx.xxxkg Precent: xxxxx.xx% 244280 www.globalindustrial.com... -
Page 14: Calibration
TARE key to confirm. 5.12 After the calibration completes, the scale will re-initialize to be ready for normal weighing. Note: If an error occurs in calibration, the scale will display “ ” (this normally means CAL.Er 244280 www.globalindustrial.com... -
Page 15: Parameter Setup Mode
3 - 7E1=7 data bits, 1 parity check bit, 1 stop bit; 0-no communication 1-output after reading is stable CFT. x Output mode 2-output after PRINT key is pressed 3-output after reading is stable or after PRINT key is pressed 244280 www.globalindustrial.com... -
Page 16: Display A/D Code And Working Voltage
If the operating time is no longer acceptable, the battery must be replaced. When storing the scale for extended periods, the battery must be charged every 180 days to avoid premature performance degradation. For replacement information, contact Global Industrial at 1-800-645-2986. 244280 www.globalindustrial.com... -
Page 17: Troubleshooting
Remove load on scale. the display or limits. Wait for load to become stable. will not zero Load on scale is not stable. Service required. when turned on Load cell damage. Lo.bAt is shown Battery is discharged Charge battery 244280 www.globalindustrial.com... - Page 18 11 Harbor Park Drive Port Washington, NY 11050...
