DIGITAL CALIPER INSTRUCTIONS
IP67 Digital Caliper with Absolute Encoding System
110-DCP Series

Features

• Absolute Measuring System
• Waterproof, oilproof, anti-electromagnetic interference, protection rating IP67 (IEC 60529)
• LCD Display
• Low-voltage alarm and calculation error alarm
• Infinite setting speed, no speed error
• Sleep mode after 5 minutes of no use
• Functions: mm/inch | Absolute/Incremental measurement

Technical Specification

• Measuring range: 0 -150mm | 0 - 200mm | 0 - 300mm
• Resolution: 0.01mm/0.0005in
• Repeatability: 0.01mm/0.0005in
• Operating temperature: 0°C - 40°C
• Storage temperature: -10°C - 60°C
• Relative humidity: 100%
• Protective level: IP67 (IEC 60529)
• Battery type: 3V lithium battery (CR2032)

Operation

• ABS/INC Conversion:
In the "ABS" mode, when the lower jaws is closed, "0.00" is displayed, the absolute origin
position of the digital caliper, and "ABS" is displayed on LCD screen. For relative measurements at any
position, press the button "0/ON" and "INC" is displayed on the LCD screen and "0.00" is displayed at current
position (relative measurement mode). To convert to "ABS" mode, press the button"0/ON" until "ABS" is
displayed on the LCD screen and then release the button. The absolute position value is displayed.
mm/in conversion:
Press the button "mm/in" to switch to mm or inch mode.
Manual switch off:
Press the button "0/ON"until OFF is displayed and then release the button.
(Note: Keep pressing the button, sequence of "0/ON", "INC"
when the needed function appears, release the button)
For more information visit

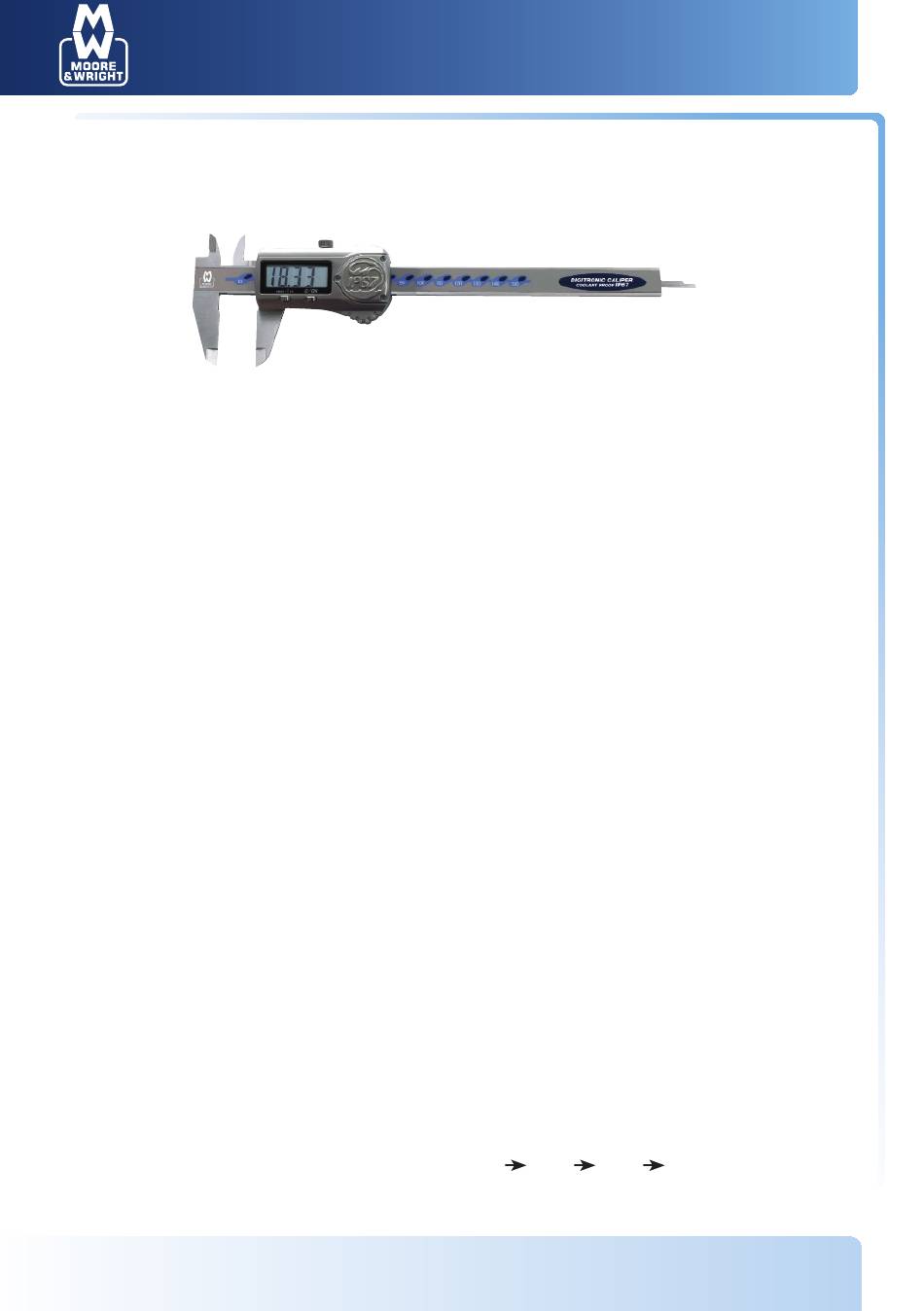

Fig 1
www.moore-and-wright.com
"ABS"
"OFF"
"INC" will be displayed,
