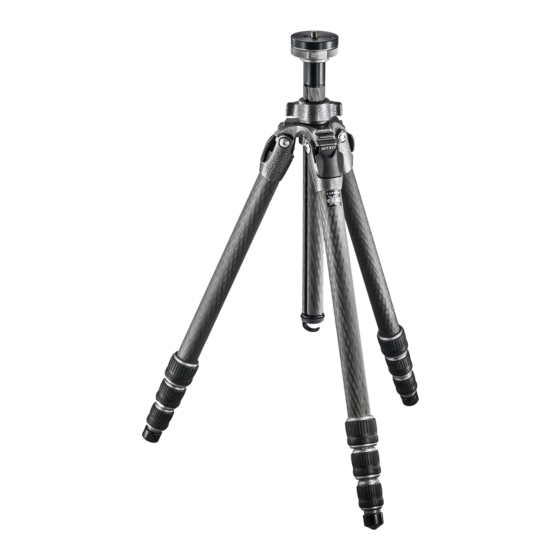

- Page 1 FARO® Laser Scanner Tripod ACCSS8032...
- Page 3 FARO® Laser Scanner Tripod ACCSS8032...
- Page 4 Instructions 1/4”...
- Page 7 Use center hook to preload the tripod with weights (max. 20kg) or elastic 20 Kg / 200 N links (max. force 200N). If you use a weight, ensure that it cannot swing, or otherwise move in a manner that might affect the tripod's stability.
- Page 9 FIG. 2 – Leg angle adjustment Tripod ACCSS8032 is fitted with sliding stops which enable the legs to be individually set at 3 different angles permitting different heights. FIG. 3 – Reversible 3/8” or 1/4” fixing screw FIG.
- Page 10 Using the tripod with a laser scanner • Use only the tripods recommended by the laser scanner manufacturer. • GITZO ACCSS8032 is certified for use with FARO Focus laser scanners.
- Page 11 When working with the laser scanner, two aspects must always be considered: • Due to long recording times and high data-quality requirements, you must adjust the tripod to be as stable as possible. • Because a laser scanner moves during operation, the tripod must always be as rigid as possible.
- Page 12 • It is acceptable to extend a leg segment only partially if necessary to achieve a specific height, but do not partially extend several segments of the same leg. • Standard working height: the tripod has four leg segments, pull out the first three fully and leave the fourth one inserted.
- Page 13 Three fully extended leg segments provide a comfortable working height. Only pull out the smallest leg segments if you need the working height.
- Page 14 • The use of the center column significantly reduces the rigidity of the tripod. We recommend that you avoid using the center column when operating laser scanners. If you can’t reach the tripod height you need in any other way, keep the extended length of the center column as short as possible.
- Page 15 • For scans close to the ground, slide all leg segments into each other before setting the leg angle to “flat”. The rubber feet have a recess that helps to achieve full-surface contact even with a flat leg angle. To do this, you must turn the feet individually by hand.
- Page 16 IMPORTANT! By tensioning the tripod legs, you increase the stability of the tripod; especially in vibration- prone locations. 5-10 mm 5-10 mm 200 N 20 kg...
- Page 17 (on inner end of each carbon pipe) 3x large code D104286 Service & Repair To download the complete illustrated spare parts file please refer to the Customer Service > Service & Repair section at the bottom of the gitzo.com home page.
- Page 20 For more information please scan the QR code https://knowledge.faro.com FARO® Laser Scanner Tripod ACCSS8032 114308 — 06/18...
