SS500e/SS2000e/SS3000e Gas Analyzer
Standard Ethernet cable connection (straight-through) is used to
connect devices of different types (e.g., switch to computer).
Crossover cable is used to connect devices of the same type
(e.g., switch to switch).

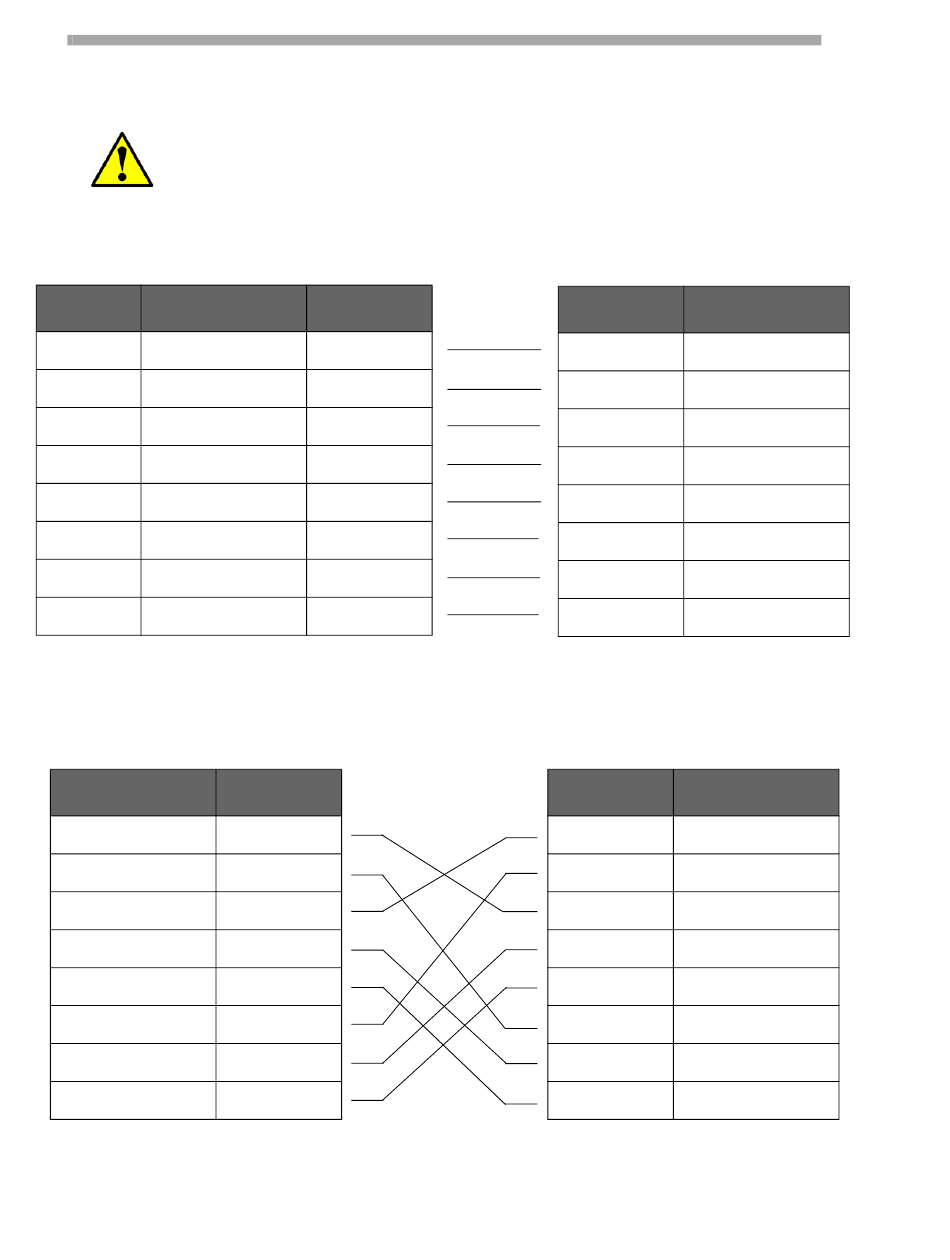

Table 3–5 Standard Ethernet cable RJ-45 pin-out
Signal Wire Color
TX (+) White-Green
TX (-) Green
RX (+) White-Orange
NC Blue
NC White-Blue
RX (–) Orange
NC White-Brown
NC Brown
Table 3–6 Crossover Ethernet cable RJ-45 pin-out
Wire Color RJ-45 Pin
White-Green
Green
White-Orange
Blue
White-Blue
Orange
White-Brown
Brown
–
3 16
RJ-45 Pin
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
RJ-45 Pin Wire Color
1 White-Green
2 Green
3 White-Orange
4 Blue
5 White-Blue
6 Orange
7 White-Brown
8 Brown
RJ-45 Pin Wire Color
1 White-Green
2 Green
3 White-Orange
4 Blue
5 White-Blue
6 Orange
7 White-Brown
8 Brown
4900002230 rev. D 2-6-20
