Summary of Contents for Xantrex RC/GS RC7

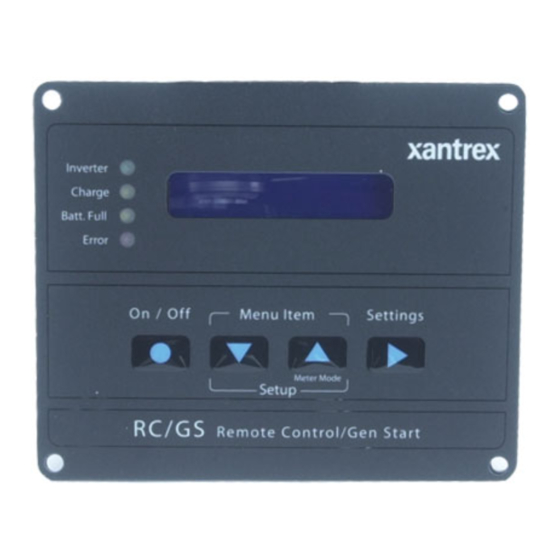

  • Page 1: Remote Control

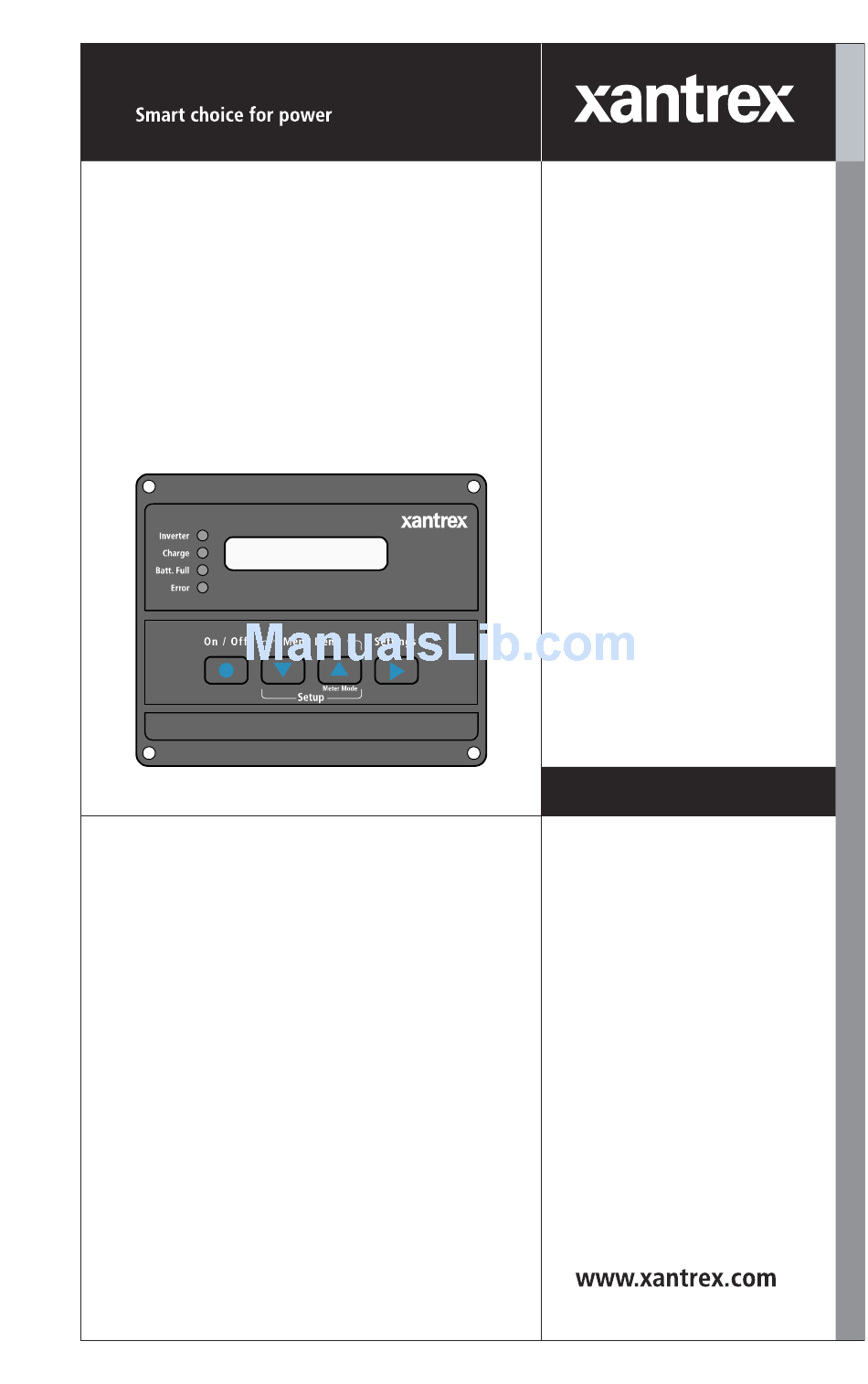

    RC/GS Remo te Co ntro l/G en S tart ing RV Series Remote Control RC/GS Owner’s Manual...
  • Page 3 RV Series Remote Controls RC/GS, RC7 Owner’s Manual...
  • Page 4: Contact Information

    About Xantrex Xantrex Technology Inc. is a world-leading supplier of advanced power electronics and controls with products from 50 watt mobile units to one MW utility-scale systems for wind, solar, batteries, fuel cells, microturbines, and backup power applications in both grid-connected and stand-alone systems.
  • Page 5: About This Manual

    About This Manual Purpose The purpose of this Owner’s Manual is to provide explanations and procedures for installing and operating the RV Series Remote Controls—RC/GS and RC7. Scope The Manual provides safety guidelines, planning and setup information, installation procedures, as well as information about operating the unit.
  • Page 6: Conventions Used

    Important: an item that you must pay attention to. Related Information You can find more information about Xantrex Technology Inc. as well as its products and services at www.xantrex.com These notes describe an important action item or 975-0210-01-01...
  • Page 7: Important Safety Instructions

    Important Safety Instructions WARNING: Save these instructions This Owner’s Manual contains important safety and operating instructions. Before using your RV Series Remote Control, be sure to read, understand, and save these safety instructions. WARNING: Restrictions on use The RC/GS or RC7 shall not be used in connection with life support systems or other medical equipment or devices.
  • Page 8: Explosive Gas Precautions

    Safety Explosive gas precautions WARNING: Explosion hazard This equipment is not ignition protected. To prevent fire or explosion, do not install the RC/GS or RC7 in compartments containing flammable materials or in locations that require ignition- protected equipment. This includes any space containing gasoline- powered machinery, fuel tanks, as well as joints, fittings, or other connections between components of the fuel system.
  • Page 9: Table Of Contents

    Contents Important Safety Instructions 1 Introduction Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2 Indicators and Controls - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 2 Installation Installing the RC/GS and RC7 - - - - - - - - - - - - - - - - - - - - - - - - 6...
  • Page 10 Contents RC/GS and RC7 Setup Menu Summary - - - - - - - - - - - - - - - - - 23 RV Series Inverter/Charger and RC/GS and RC7 Setup - - - 23 Auto Gen Start Setup (RC/GS Only) - - - - - - - - - - - - - - - - 24 4 Operation Indicators and Controls - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26 Status LEDs- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26...
  • Page 11 Charger Fault - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 40 Meters Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 41 Average Shunt Amps- - - - - - - - - - - - - - - - - - - - - - - - 41 Battery Voltage- - - - - - - - - - - - - - - - - - - - - - - - - - - - 41 Inverter/Charger Current - - - - - - - - - - - - - - - - - - - - - 42...
  • Page 13: Introduction

    Introduction Chapter 1 contains information about the function and features of the RV Series Remote Controls. Topics in this chapter are organized as follows: • “Features” on page 2 • “Indicators and Controls” on page 4.
  • Page 14: Features

    Introduction Features The RC/GS and RC7 are control panels that allow remote operation of a RV Series Inverter/Charger. Features of the RC/GS and RC7 include: • Simple menu-driven programming for full control of all inverter/charger functions • A three-level menu to prevent accidental setting changes •...
  • Page 15 Connection cable requirements The RC7 and RC/GS use a telephone-style cord to connect to the RV Series Inverter/Charger (models RV2012GS, RV2012GS-15/20B, RV2012GS-20B, RV2512GS, and RV3012GS). Use only Xantrex-recommended accessories: Part number 31-6257-00 31-6262-00 31-6275-00 To connect the RC/GS or RC7 to a non-GS series RV Series Inverter/Charger, use a data-standard RJ11 cable.
  • Page 16: Indicators And Controls

    Introduction Indicators and Controls All operating controls and indicators are located on the front panel of the remote control. charger can be switched The standby charger in the inverter is automatic and always ready and available for charging whenever AC power is applied.
  • Page 17: Installation

    Installation Chapter 2 contains information and procedures to install the RV Series Remote Controls. Topic in this chapter are organized as follows: • “Materials and tools required” on page 6 • “Choosing a location” on page 7 • “Mounting and Connecting” on page 7.
  • Page 18: Installing The Rc/Gs And Rc7

    Installation Installing the RC/GS and RC7 The RC/GS and RC7 are designed to be flush mounted through an opening in a wall and secured with four screws. The RC/GS and RC7 require no connections other than one cable that plugs into the back of the unit. Because you cannot access the cable jack once the unit is mounted, the cable needs to be routed through the wall before securing the remote.
  • Page 19: Choosing A Location

    Choosing a location Choose a location that is easily accessible. The RC/GS and RC7 should be mounted where they are clearly visible, with unobstructed access to the screen and buttons. The location should be indoors, dry, and free from corrosive or explosive fumes.
  • Page 20 Installation 3. Run the cable between the remote and the RV Series Inverter/Charger. 4. Place the Charger to the 5. Connect the communications cable into the RJ11 port on the inverter/charger marked “Remote Control” (Figure 2-2). Figure 2-2 RV Series Inverter/Charger Front Panel 6.
  • Page 21 8. Wait for the screen to show the message “Waiting for AC.” 9. Place the Charger to the Important: Charger if the 10. Reconnect the RV Series Inverter/Charger to the AC source. After a brief delay, the remote will display a system status message similar to Figure 2-4.
  • Page 23: Configuration

    Configuration Chapter 3 contains information about configuring the RV Series Remote Controls. The topics in this chapter are organized as follows: • “Viewing the Setup Menu” on page 12 • “Changing Settings” on page 12 • “Configuring the RC/GS and RC7” on page 13 •...
  • Page 24: Viewing The Setup Menu

    Configuration Viewing the Setup Menu You can use the RV Series Remote Controls to configure the RV Series Inverter/Charger and the remote itself. Configuration is performed using the Setup menu. You can view the Setup menu and configure settings by using the Setup/Menu Item buttons and the Settings button.
  • Page 25: Configuring The Rc/Gs And Rc7

    Configuring the RC/GS and RC7 The following menu items appear in the sequence they appear on the RC/GS and RC7. See “RC/GS and RC7 Setup Menu Summary” on page 23 for the complete menu structure. Set Idle Set Idle enables or disables the power-saving “search sense” mode feature.
  • Page 26: Battery Type

    Configuration Table 3-1 Battery Capacity Settings Setting Auto 125 A-hrs 250 A-hrs 375 A-hrs 500 A-hrs 1000 A-hrs Bat Capacity: Bat Capacity: Auto 125 A-hrs Figure 3-4 Battery Capacity menu items Battery Type To ensure the batteries are receiving the proper charge voltage, the Battery Type must be selected for the type of batteries used in the system: GEL Cell, Flooded Lead Acid and AGM.
  • Page 27: Max Charge Rate

    Max Charge Rate The battery charger’s maximum output current can be specified using the Max Charge Rate menu. The default is 100% of the maximum charge rate. Refer to the RV Series Inverter/Charger Owner’s Manual for model-specific adjustable charge rates in amps. Maximum 100% Max Charge Rate:...
  • Page 28: Remote Setup

    Configuration Set Shore Power: Set Shore Power: 30A or more 25 Amps Figure 3-7 Set Shore Power menu items Remote Setup The Remote Setup screen displays system status and error messages that occur during normal operation. From the Setup menu you can select: •...
  • Page 29: Set Clock (Rc/Gs Only)

    LCD Contrast: LCD Contrast: Max Contrast Figure 3-9 LCD Contrast menu items Set Clock (RC/GS Only) Some RC/GS automatic generator start functions are based on the time of day. The clock must be properly set to ensure the programmed function will perform at the correct time. The clock uses 24-hour time and ranges from 00:00 to 23:59.
  • Page 30: Generator Start (Rc/Gs Only)

    Configuration Select Genset: Onan QuietDiesel Figure 3-11 Select Genset menu items Generator Start (RC/GS Only) After setting the clock and selecting a generator, set the parameters for automatically starting the generator based upon a battery voltage. Press the up arrow and scroll through the menus to view the Generator Start menu.
  • Page 31: Generator Stop (Rc/Gs Only)

    The generator can be started or stopped at any time by pressing the down arrow button until the Gen Start/Stop menu is displayed. Press and hold the On/Off button until you hear a beep from the RC/GS. Release the button after the beep sounds.
  • Page 32: Thermostat Start Enable And Disable (Rc/Gs Only)

    Configuration The generator can be stopped at any time by accessing the user menu until the “Gen Start/Stop: Press (On/Off)” menu is displayed. Press and hold the On/Off button until you hear a beep from the RC/GS. Release the button after the beep sounds.
  • Page 33: Begin Gen Quiet And End Gen Quiet (Rc/Gs Only)

    Begin Gen Quiet and End Gen Quiet (RC/GS Only) The period of time during which the generator is prevented from starting automatically can be defined using the RC/GS. To specify the begin quiet time, scroll to the Begin Gen Quiet: 00:00 by using the Up and Down arrow buttons. Set the Begin Gen Quiet start time.
  • Page 34: Saving Setup Choices

    Configuration Saving Setup Choices Once the setup options are complete, press and hold the Setup/Menu Item buttons (see Figure 3-19) for approximately five seconds or until the screen clears. The setup choices will be saved in the inverter/charger’s non-volatile memory 20 seconds after exiting the Setup menu if no other actions are taken.
  • Page 35: Rc/Gs And Rc7 Setup Menu Summary

    RC/GS and RC7 Setup Menu Summary RV Series Inverter/Charger and RC/GS and RC7 Setup Set Idle: Set Idle: Defeat About..20W load Bat Capacity: Bat Capacity: Auto 125 A-hrs Battery Type: Battery Type: GEL Cell Flooded Lead Acid Max Charge Rate: Max Charge Rate: 100% of max Set Shore Power:...
  • Page 36: Auto Gen Start Setup (Rc/Gs Only)

    Configuration Auto Gen Start Setup (RC/GS Only) Generator Start: Generator Start: Manual (Push ON) Auto at 11.0 VDC Generator Stop: Generator Stop: Manual (Push OFF) Auto at Absorb Gen Start/Stop: Gen Start/Stop: Therm Disabled Therm Enabled Begin Gen Quiet: 00:00 End Gen Quiet: 00:00 Select Genset:...
  • Page 37: Operation

    Operation Chapter 4 contains information and procedures to operate the RV Series Remote Control. The topics in this chapter are organized as follows: • “Indicators and Controls” on page 26 • “System Status Displays” on page 30 • “Storage Checklist” on page 45 •...
  • Page 38: Indicators And Controls

    Operation Indicators and Controls The RC/GS and RC7 feature LEDs, a display screen, and buttons for viewing operating status. Status LEDs Four indicator lights (LEDs) light up or flash during operation to indicate the system’s status. When the inverter is powered on, all LEDs flash as the unit goes through a self- test.
  • Page 39: Inverter Led

    Inverter LED The green Inverter LED indicates the inverter is on and ready to provide power from the batteries. If AC power is connected to the inverter/charger, the LED flashes. When no AC power is connected, the inverter LED is on solid, indicating that the inverter/charger is inverting (providing power from the batteries).
  • Page 40: Batt. Full Led

    Operation Batt. Full LED The yellow Batt. Full LED indicates the state of charge on the batteries. This LED will not illuminate until the batteries have charged up to at least 90% (according to the inverter/charger’s estimate). The duration of the LED’s on time will increase until the batteries reach 100%, at which time the LED will be on solid.
  • Page 41: Buttons

    Buttons There are four buttons on the front panel of the RC/GS and RC7 used to control the inverter and enter system operating parameters. On / Off Figure 4-3 Button Controls On/Off The On/Off button controls the inverter section of the inverter/charger.
  • Page 42: System Status Displays

    Operation System Status Displays The RC/GS and RC7 remote controls display the operating mode and system status by lighting one or more LEDs and/or by displaying a message on the screen. The four LEDs reflect the same information as the single tricolored LED on the RV Series Inverter/Charger.
  • Page 43: Starter Cooldown And Gen Start (Rc/Gs Only)

    When the initiating condition (battery voltage or thermostat signal) has occurred, the Pending Genstart message is displayed for approximately two minutes, awaiting a change in the condition or a manual override. If neither condition occurs, the inverter/charger attempts to start the generator and the RC/ GS displays “Cranking Genset.”...
  • Page 44: Genset Error Messages (Rc/Gs Only)

    Operation Genset Error Messages (RC/GS Only) Gen Won’t Start If the generator does not start after the three attempts, the RC/ GS displays the message “Gen won’t Start” and the red Error LED on the front panel lights. After displaying this message, the RC/GS automatically sets the Generator Start menu to “Manual (Push ON)”...
  • Page 45 Inverter Charge Batt. Full Error Figure 4-5 Gen Quiet Fault Error Message Note: If the generator is manually started from the RC/GS, the generator will not shut down automatically. “Man Stop Only” (Figure 4-6) is displayed. Shut down the generator manually. See “Generator Start/Stop (RC/GS Only)”...
  • Page 46: Inverter Mode Messages

    Operation Inverter Mode Messages When the inverter is on (no AC present), it is either inverting or searching the AC output circuits for a load meeting the specifications set up in the Set Idle menu selection (see Figure 3-3 on page 13), if the search sense mode is selected. When the inverter is in the search sense mode, “Searching”...
  • Page 47: Charger Mode Messages

    Charger Mode Messages When AC (shore power or generator power) is available, the inverter/charger automatically switches to the charger mode. There are four separate charger modes: Bulk, Absorption, Float and Equalization. Refer to the inverter/charger Owner’s Manual for details on charger modes. Bulk Charging When the charger is charging in the Bulk mode, the screen displays “Bulk Charging”...
  • Page 48: Float Charging

    Operation Float Charging When the charger is in the Float mode, the screen shows “Float Charging” and the Charge LED quickly flashes. At this point the batteries are fully charged (100%) and the Batt. Full LED is on solid. Inverter Charge Batt.
  • Page 49: Inverter/Charger Error Messages

    CAUTION Only flooded lead acid or AGM batteries should be equalize charged. Running an equalize charge on batteries other than flooded lead acid or AGM types could permanently damage them. CAUTION Do not attempt to remove vent caps on AGM batteries. Doing so may void the warranty.
  • Page 50: Over Temperature

    Operation Over Temperature The “Otemp/Less Load” System Status message indicates the inverter/charger transformer and power components have exceeded a safe operating temperature. Reduce the load on the inverter. When the unit cools, it automatically resets and resumes operation. If this condition occurs often, make sure the inverter is in a cool location, has adequate ventilation, and the cooling fan is operational.
  • Page 51: High Battery Voltage

    High Battery Voltage The “Hibat/Stop Chrg” System Status message appears when the battery voltage rises above 15.7 V. This condition usually occurs only when a charging source other than the RV Series Inverter/Charger is used to charge the battery bank. Switch off any charging sources other than the RV Series Inverter/ Charger to allow the voltage level to drop.
  • Page 52: Charger Fault

    Operation Charger Fault The “Charger Fault” System Status message appears when an internal error is detected in the inverter/charger during charging. In addition, the red Error LED is on and the buzzer sounds. After 15 minutes, the charge relay disconnects and the inverter section shuts down.
  • Page 53: Meters Display

    Meters Display The RC/GS and RC7 have built-in meters that monitor inverter/charger activities. To view these meters, press and hold the Meter Mode button (up arrow) for five seconds until the screen clears. Use the down arrow button to scroll through the meter displays.
  • Page 54: Inverter/Charger Current

    Operation Inverter/Charger Current This meter displays the actual DC current supplied to the batteries when the RV Series Inverter/Charger is charging (+) and current drawn from the batteries when the inverter/ charger is inverting (–). Inv/Chg Current: +/- 0 Amps DC AC Output Voltage This meter displays the actual inverter AC output voltage measured at the AC output.
  • Page 55: System Status Messages

    System Status Messages After installing the RC/GS and RC7, the LCD screen displays operating system status messages which is the default screen after exiting all other setting or meter functions. Operating parameters include Battery State-of-charge and Set Shorepower. The Gen Start-Stop switch is also available from these displays.
  • Page 56: Set Shore Power

    Operation Set Shore Power This display has the same function as “Set Shore Power” on page 15. You can set the shore power input (from 5 to 30 amps) so the total current draw from the charger does not exceed the circuit breaker rating, to provide the maximum current to the AC loads.
  • Page 57: Storage Checklist

    Storage Checklist Proper storage procedures extend the life of the batteries and ensure that your vehicle’s power system is ready for operation when needed. The following checklist is for battery-related storage activities. Preparation for Storage • Check that all batteries are fully charged. •...
  • Page 58: Rc/Gs And Rc7 User's Menu Summary

    Operation RC/GS and RC7 User’s Menu Summary System Status Messages AC Source Inverter Mode System Status: System Status: Waiting for AC Searching System Status: System Status: AC Available Inverting Generator Status Messages (RC/GS Only) AC Source Inverter Mode Genset Status: Genset Status: Pending Genstart MAN STOP ONLY...
  • Page 59: System Status Display

    System Status Display Batt State of Charge: E --------- F Set Shore Power: x.x Amps Gen Start/Stop: Press (ON/OFF)* Meters Display Avg Shunt Amps: +/- 0 Amps DC Battery: 00.0 Volts DC Inv/Chg Current: +/- 0 Amps DC Inverter Output: VAC 0 AC Input: 0 Amps AC...
  • Page 61: Warranty And Return Information

    Warranty and Return Information Warranty What does this warranty cover? This Limited Warranty is provided by Xantrex Technology Inc. ("Xantrex") and covers defects in workmanship and materials in your RC7 or RC/GS Remote Control. This warranty period lasts for 36 months from the date of purchase at the point of sale to you, the original end user customer.
  • Page 62 Warranty and Return What proof of purchase is required? In any warranty claim, dated proof of purchase must accompany the product and the product must not have been disassembled or modified without prior written authorization by Xantrex. Proof of purchase may be in any one of the following forms: •...
  • Page 63 Warranty and Return Disclaimer Product THIS LIMITED WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY XANTREX IN CONNECTION WITH YOUR XANTREX PRODUCT AND IS, WHERE PERMITTED BY LAW, IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS, GUARANTEES, REPRESENTATIONS, OBLIGATIONS AND LIABILITIES, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE IN CONNECTION WITH THE PRODUCT, HOWEVER ARISING (WHETHER BY CONTRACT, TORT, NEGLIGENCE, PRINCIPLES OF MANUFACTURER'S LIABILITY, OPERATION OF LAW, CONDUCT, STATEMENT OR...
  • Page 64: Return Material Authorization Policy

    This warranty will not apply where the product is damaged due to improper packaging. 2. Include the following: • The RMA number supplied by Xantrex Technology Inc. clearly marked on the outside of the box. • A return address where the unit can be shipped. Post office boxes are not acceptable.
  • Page 65: Out Of Warranty Service

    Warranty and Return Out of Warranty Service If the warranty period for your RC7 or RC/GS Remote Control has expired, if the unit was damaged by misuse or incorrect installation, if other conditions of the warranty have not been met, or if no dated proof of purchase is available, your unit may be serviced or replaced for a flat fee.
  • Page 66: Information About Your System

    Warranty and Return Information About Your System As soon as you open your RC/GS Remote Control package, record the following information and be sure to keep your proof of purchase. Serial Number Purchased From Purchase Date If you need to contact Customer Service, please record the following details before calling.
  • Page 68 Xantrex Technology Inc. 1 800 670 0707 Tel toll free NA 1 360 925 5097 Tel direct 1 360 925 5143 Fax direct customerservice@xantrex.com www.xantrex.com 975-0210-01-01 Printed in China...
