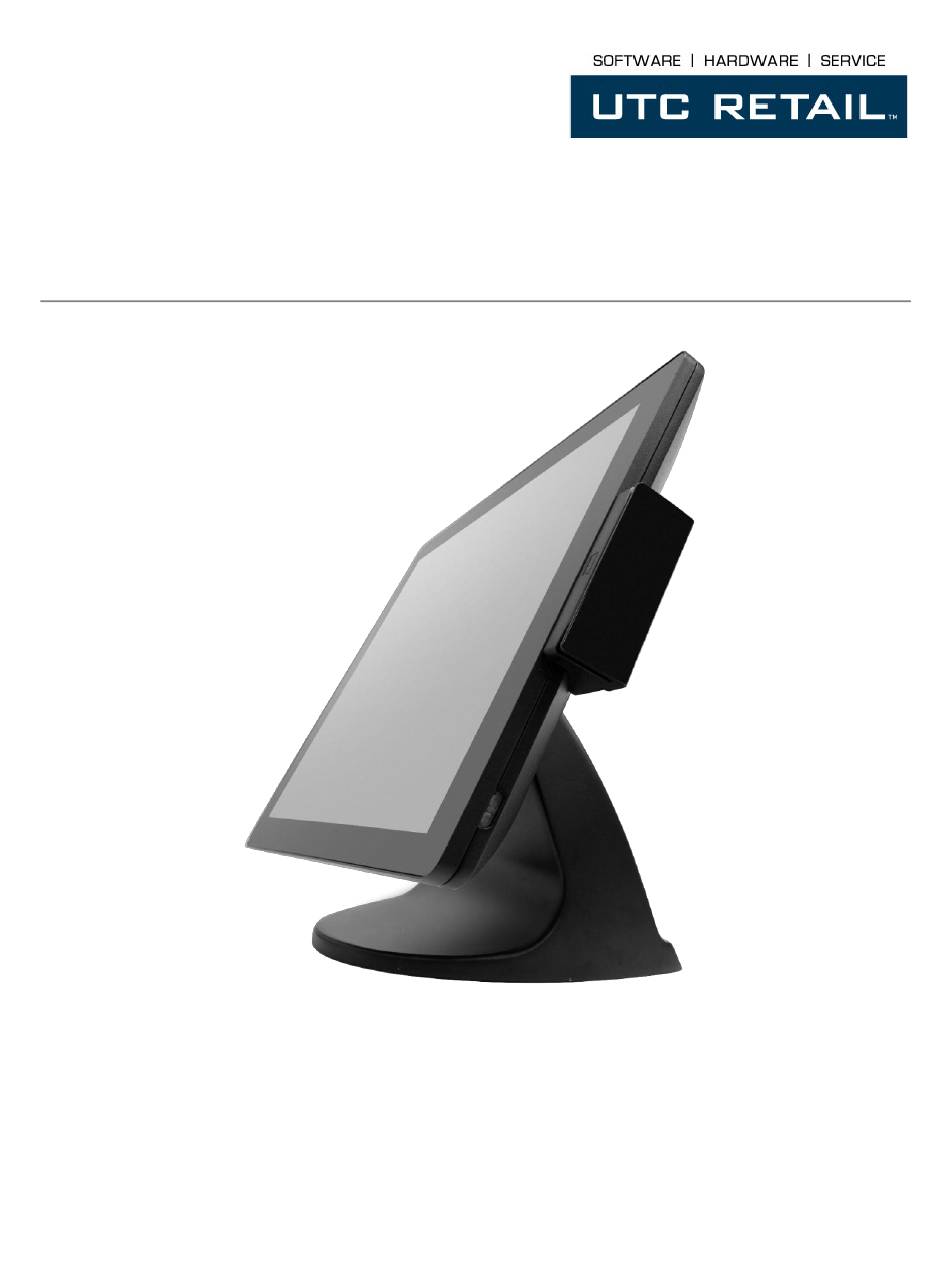

- Page 1 2600 POS Touch Screen POS Workstation INSTALLATION GUIDE © 2020 UTC RETAIL. All rights reserved. 11969003 Rev A...
- Page 2 Do not use the Magnetic Stripe Reader (MSR) unit as a handle when moving or carrying the 2600 POS. CAUTION: Do not hot plug to the I/O panel serial ports or the serial port adapter cable. Turn off the 2600 POS Unit before connecting serial port cables.
- Page 3 Installing the 2600 POS Workstation AC Power Cable and Power Adapter The UTC RETAIL 2600 POS Workstation comes with an AC Power Cable and Power Adapter. The power adapter is mounted in the base of the 2600 workstation. The AC Power Cable is already inserted into the Power Adapter and is intended to route through the cable opening located in the rear of the base.
- Page 4 The 2600 should be powered down through the operating system. If the operating system has locked up, the unit can be powered down by holding the power button down until the blue light turns off. 11969003 Rev A © 2020 UTC RETAIL All rights reserved.
- Page 5 Maintenance - Hard Drive Removal and Swap The 2600 POS is equipped with an easily accessible solid-state drive (SSD) or rotating hard drive (HDD). Access to the hard drive is located on the I/O panel. To swap a hard drive, follow these steps: Shut off power to the system;...
- Page 6 Maintenance - Base Removal/ VESA Mount The base of the 2600 POS can be easily removed so that the 2600 can be mounted to a VESA compatible bracket. To remove the base, turn the unit over and place on a soft, flat surface to protect the touchscreen.
- Page 7 Please retain the original packing material and shipping carton for use when returning the equipment. For additional assistance, please contact your account representative or: UTC RETAIL 100 Rawson Road Victor, NY 14564 Phone: 1.800.349. 0546 or (585) 924.9500 www.utcretail.com © 2020 UTC RETAIL All rights reserved. 11969003 Rev...
