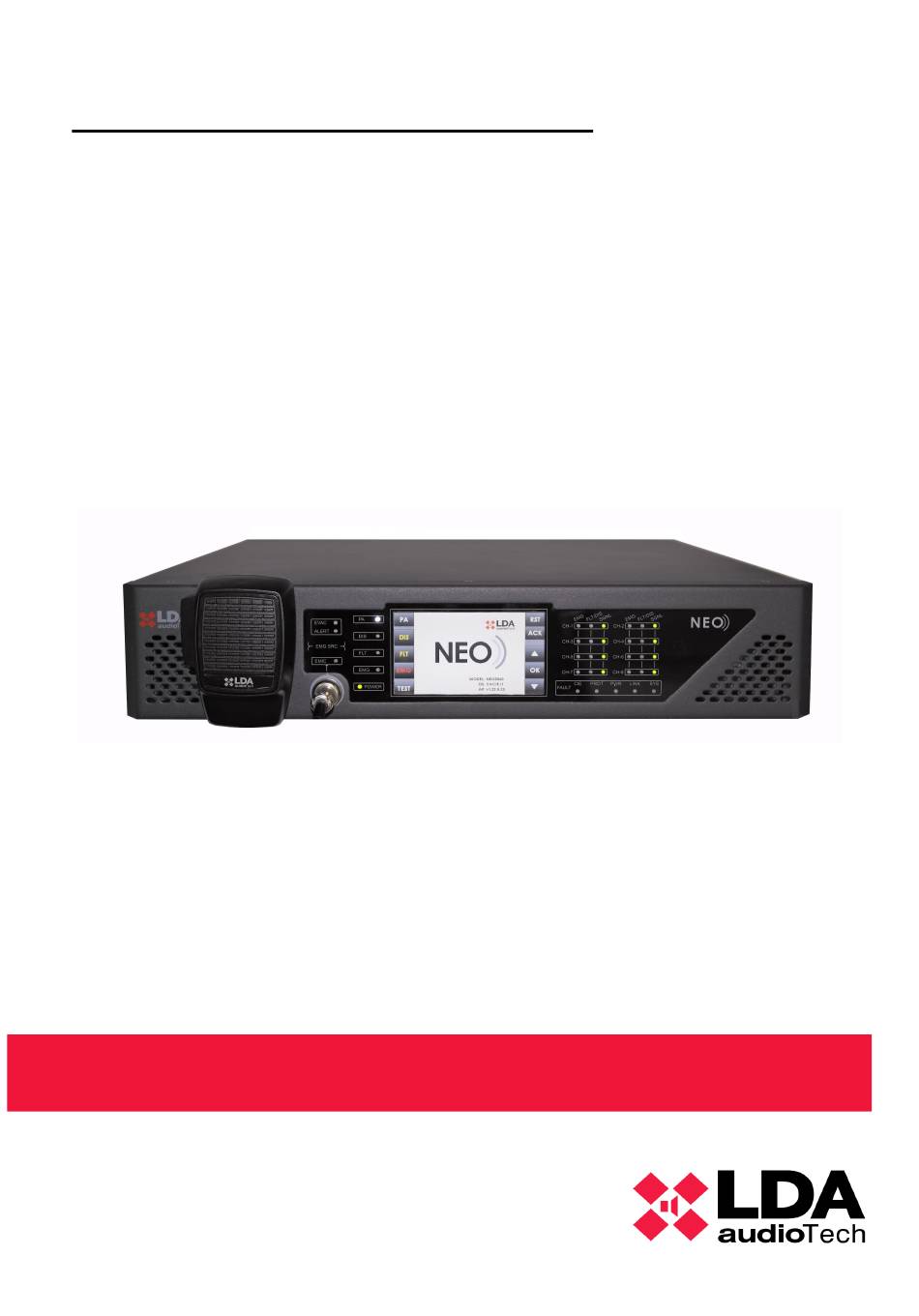

- Page 1 Support Handbook Repair procedure of NEO serie devices Spare part: NEOPBV02P01...
-
Page 2: Security Instructions
1 SECURITY INSTRUCTIONS 1. Please read these safety instructions carefully. 2. Save this user's manual for future use. 3. Unplug the device from the power adapter (AC) befre cleaning it. 4. Do not use liquid or spary detergent to clean the device. 5. - Page 3 2 REPLACEMENT BOARD Picture. Find below an image of board NEOPBV02P01. Ilustration 1: NEOPBV02P01 Description. NEO motherboard, with line level input and ACSI bus connection. Connections for input and output card modules as well as line sensibilities. 3 FAULT DETECTION (INSPECTION POINTS) The device has errors in inputs/outputs and/or level sensibility.
-
Page 4: Repair Procedure
Ilustration 2: Locating srews tin the NEO cover Ilustration 3: Location screws on the cover, left side LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805... - Page 5 Ilustration 4: Location screws in the cover, right side 2º Remove the ETX module from the rear by removing its two fixing screws. Ilustration 5: Location of the Base Plate module on the device LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805...
- Page 6 Ilustration 6: Location of the Motherboard Plate module in the device, once the ETX module has been removed. 3º Disconnect the connections and remove the indicated screws. Ilustration 7: Location of connections and screws to be extracted LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805...
- Page 7 4º Lift the cover from the back-panel connection to ETX module. Extract it. Ilustration 8: Removing the back panel Ilustration 9: Back panel already extracted LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805...
-
Page 8: Verification Of Operation
5 VERIFICATION OF OPERATION Check if power LEDs ligths work correctly. Check if device run noramlly and check all functions of inputs/outputs and sensibility of channels. LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805... - Page 9 LDA Audio Tech - Severo Ochoa Nº 31- 29590 MÁLAGA, ESPAÑA. Tlf: +34 952028805...
