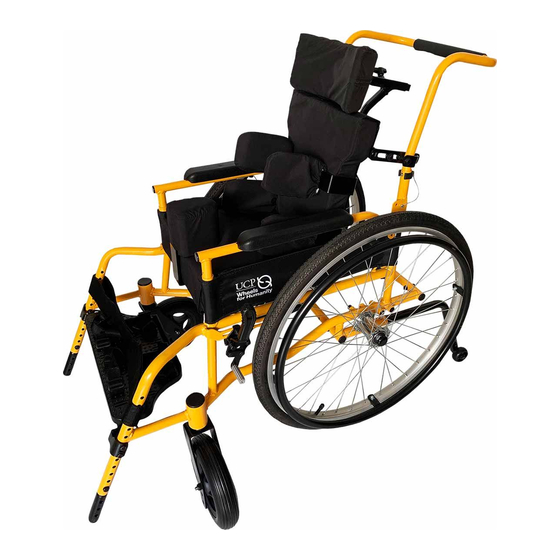

Liberty II Wheelchair
Assembly Quick Guide
—
Frame Assembly Quick Guide

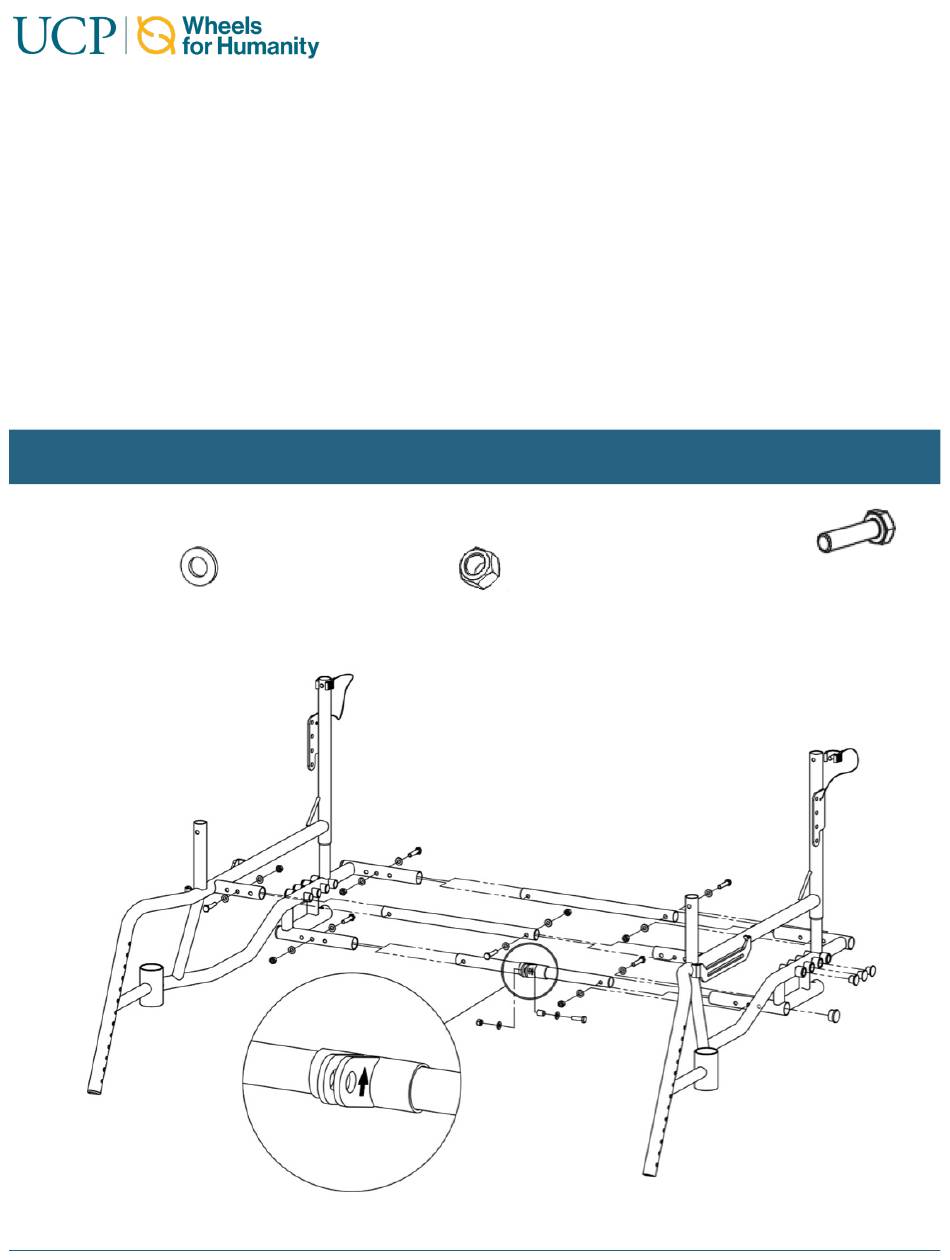

Step 1:
Assemble the right and left frame tubes. Use six M6 hex head cap screws 30-mm long
,
twelve M6 washers
and six M6 nylon lock nuts
. Make sure the tilt-in-space mechanism is
positioned correctly as shown in the picture below.
Advertisement
Related Manuals for UCP Liberty II
Summary of Contents for UCP Liberty II
- Page 1 Liberty II Wheelchair Assembly Quick Guide — Frame Assembly Quick Guide Step 1: Assemble the right and left frame tubes. Use six M6 hex head cap screws 30-mm long twelve M6 washers and six M6 nylon lock nuts . Make sure the tilt-in-space mechanism is...
- Page 2 Step 2: Step 3: Step 6: Assemble the armrests. Use two M6 hex Assemble the front casters and push Attach the rear wheels. Use two quick-release rear wheel axle pins and two bearing covers head cap screws 30-mm long , two M6 handle.
- Page 3 Step 9 (Optional): Assemble the anti-tippers. Step 10: Assemble the tray. Use four M6 Philips Seat Unit Assembly Quick Guide head pan screws 10-mm long and two M6 knobs Step 1: Attach the seat pan and the tilt mechanism to the frame. Seat pan front: Use two seat pan clamps two bolts for seat pan clamps , two M6 washers, and two M6 nylon lock nuts.
- Page 4 Step 2: Attach the backrest pan to the seat pan and the back-frame posts. Step 3: Attach backrest cushion and the lateral sup- Step 4: Attach the headrest to the backrest pan. ports (4) to the backrest pan. Use eight M6 Philips Use three M6 hex head cap screws 30-mm long Seat pan to backrest pan: Use an attachment bracket , four M6 hex head cap screws 10-mm...
- Page 5 Step 7 (optional): To adjust the pre-seat bone shelf: Attach the abductor. Use two M6 Philips head pan screws 10-mm long 1. Adjust the seat depth according to the attach the abductor pad to the bracket. Use an user’s needs. attachment bracket , two M6 knobs 2.
