TOYOTA 86
Preparation

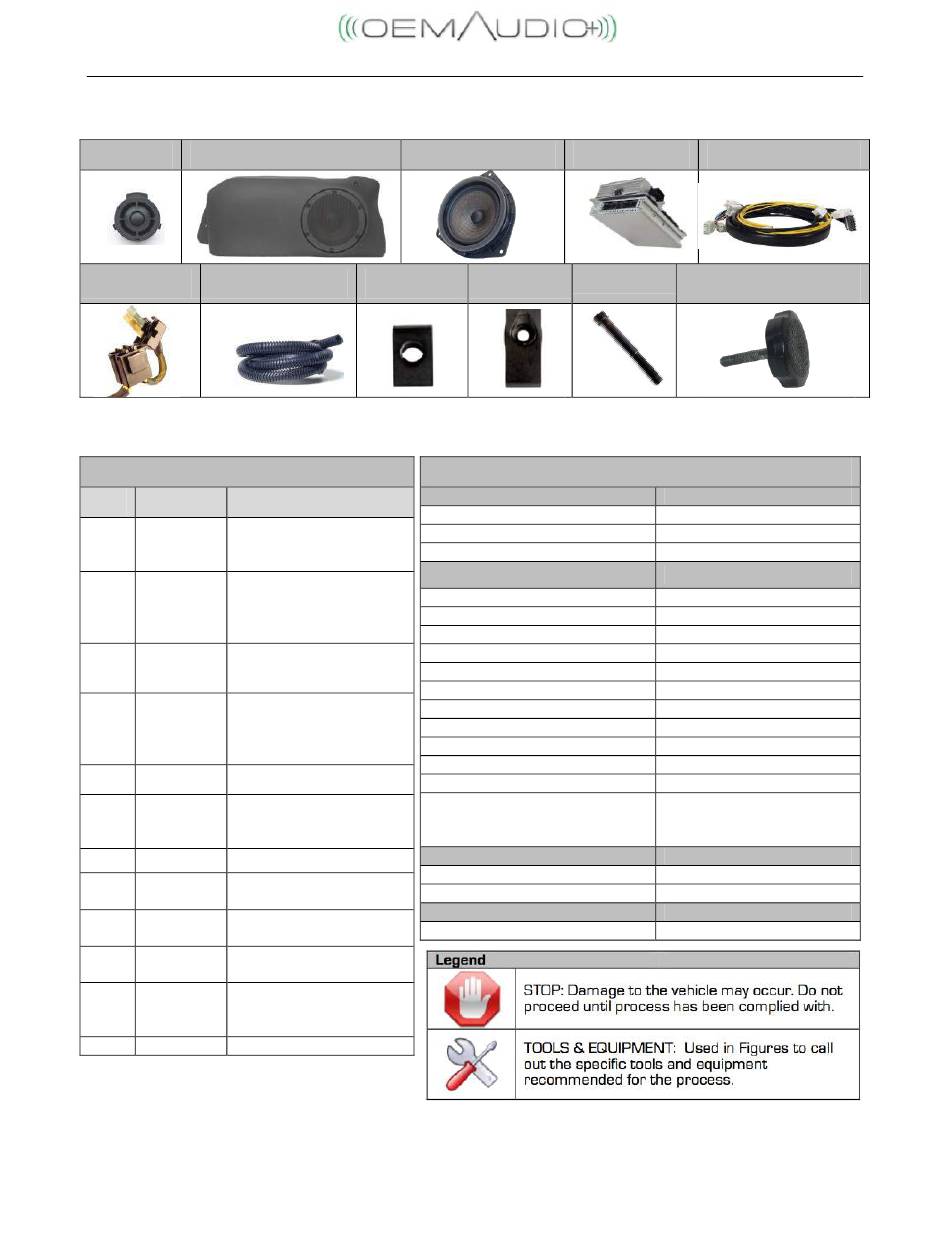

Kit Contents: OEM Audio Plus 86 Reference 400CF (RHD)
Item 1
Item 2
Item 6
Item 7
Hardware Content
Item
Quantity
Description
1" Soft Dome Tweeter
1
2
with Neodymium
8" Carbon Fiber
Subwoofer in Custom Fit
2
1
Sealed Enclosure (with
Amps Attached)
6.5" Carbon Fiber Cone
3
2
Amplifier Module
4
1
(1) DSP Amplifier
(1) Subwoofer Amplifier
5
1
Quick-Sync Harness
Fuse Holder Assembly,
6
1
(1) 30-Amp Fuse, (1) 20-
7
1
Corrugated Split Loom
1.0x13.5mm Speed Nut
8
1
(Attached to Enclosure)
1.0x19.5mm Speed Nut
9
1
(Attached to Enclosure)
M6 1.0x60mm Screw
10
1
(Attached to Enclosure)
Quick Release M6
11
1
1.0x35mm Knob
(Attached to Enclosure)
12
6
Cable Ties (Not Pictured)
Table of Contents
I. Preparation......................................................................................................................................................................1-2
Issue A 06/08/12
Item 8
Tools Recommended
Personal & Vehicle Protection
Safety Goggles
Protective Blanket
Safety Gloves
Magnet
Special Tools
Panel Clip Removal
Socket Wrench
Socket
Socket Extension
Wrench
Front Woofer
Screwdriver
Pliers
(See Item 2)
Allen Wrench
Utility Blade
Pick Tool
Wire Strippers/Crimpers
Heat Gun / Or Handheld Torch
Amp Fuse
Installation Tools
Electrical Tape
Cable Ties
Special Chemicals
Silicone Sealant
Item 3
Item 4
Item 10
Item 9
Reference 400CF
Item 5
Item 11
Notes
Notes
SST # 00002-06001-01
10mm, 12mm
10mm, 12mm
6"
10mm
#2 Phillips
4mm (Included)
Optional for speaker grill
Needed for 12g & 14g
Butt Sealed-Crimp-Solder
Connectors
Notes
10 Piece bundle Included
Notes
For Sealing Grommet
Page | 1
