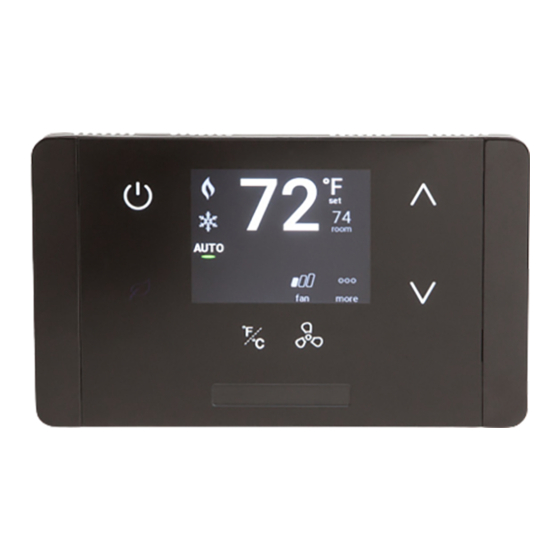

EcoTouch+
Installation, Operation & Maintenance Guide
Use this guide along with the IOM for EcoSource+ or EcoSource VRF Controller.
EcoTouch+ IO&M Guide
Telkonet, Inc.
For Use with Firmware Version 2.x
20800 Swenson Drive, Suite 175
Installation Process Overview
Waukesha, WI 53186
Revision 5
(414) 302-2299
Page i
www.telkonet.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ecosmart EcoTouch+ and is the answer not in the manual?

Questions and answers

Related Manuals for Telkonet ecosmart EcoTouch+

Summary of Contents for Telkonet ecosmart EcoTouch+

  • Page 1 EcoTouch+ Installation, Operation & Maintenance Guide Use this guide along with the IOM for EcoSource+ or EcoSource VRF Controller. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Installation Process Overview Waukesha, WI 53186...

  • Page 2: Table Of Contents

    Added testing Lutron lighting scenes (page 14). Added testing Saflok lighting scenes (page16). Added Commissioning EcoTouch+ (page 16). EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Installation Process Overview Waukesha, WI 53186...

  • Page 3: Installation Process Overview

    6. Associate devices: join, pair, bind (page 13). 7. Test Lutron lighting scenes-if applicable (page 14). 8. Commission EcoTouch+ (page 16). Company Headquarters: Customer Support: EcoSmart Sales: Telkonet, Inc. (800) 380-9640 (888) 703-9398 20800 Swenson Drive Email: Email Suite 175 ecosmartsupport@telkonet.com...

  • Page 4: The Ecosmart Energy Management System

    Regulatory Compliance with any other antenna or transmitter. FCC ID: XV6SS6560 EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 The EcoSmart Energy Management System Waukesha, WI 53186...

  • Page 5: Overview: Ecowave Remote Thermostat/Controller Package

    HVAC units in a single large space and eliminating the potential of opposing modes forcing equipment to compete against each other. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 The EcoSmart Energy Management System...
  • Page 6 Multiple EcoTouch+ devices can control one HVAC system, equipped with one EcoSource+. The wiring interface conforms to industry standards. Telkonet can develop specific wiring diagrams, if a complete specification is provided for the HVAC unit(s) in use at the site.

  • Page 7: Plan Ecotouch+ Location

    If no door contacts or remote occupancy sensors are used in the guest room then the bed should always be positioned within a 12’ radius from the front of the thermostat If a suitable location without a heat or cold source is not available, contact a Telkonet Project Manager.
  • Page 8 EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Plan EcoTouch+ Location Waukesha, WI 53186...

  • Page 9: About Wiring Options

    Common Usage WA-P156900A00AK Pigtail SS6560 for J2 24V power WA-P156900A01AK Pigtail SS6560 for J3 3.3V power (& Telkonet use only-programming) EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 About Wiring Options Waukesha, WI 53186...
  • Page 10 PIN # SIGNAL COLOR VBAT BLACK ORANGE WHITE EXTSIG YELLOW BLACK EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 About Wiring Options Waukesha, WI 53186 Revision 5 (414) 302-2299 Page 7 www.telkonet.com...

  • Page 11: Equipment Needed

    Concrete mounting: 4 self-tapping concrete screws   Figure 2-Battery Pack Bracket and jbox are NOT required. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Equipment Needed Waukesha, WI 53186 Revision 5...

  • Page 12: Install The Ecotouch

    One way to resolve the problem is to tie the 12 VDC ground to the j-box ground. Use wire harnesses with red and black stripped wires and JARD J4021F transformers, both provided by Telkonet. (Exceptions may apply in certain circumstances.) 1. Review table on page 4 to determine where the EcoTouch+ will be mounted.
  • Page 13 6. Remove all applicable punch outs from the EcoTouch+ backplate. Battery version: be sure remove the battery pack punch out from the EcoTouch+ backplate (Figure 6). EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175...
  • Page 14 13. Battery version: slide battery pack through the punch out and into the wall (see Figure 7). (Neither a mounting bracket nor jbox are required.) Figure 7: Installed Battery Pack (Hidden from View) EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Install the EcoTouch+...
  • Page 15 19. Screw in the security screw. Your EcoTouch+ is now installed. Next, associate your devices (join to network, bind, pair). EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Install the EcoTouch+ Waukesha, WI 53186...

  • Page 16: Device Assn. Procedures Must Be Performed In Order

    7. Join/bind EcoSense+ to EcoSource+ (if applicable). 8. Bind third party devices (such as Control4, Saflok, etc.) in the room. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Device Assn. Procedures Must Be Performed in Order...

  • Page 17: Test Lutron Lighting Scenes (If Applicable)

    3) Password C57A Enter 4) Lutron Back Back Continued on next page. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Test Lutron Lighting Scenes (if applicable) Waukesha, WI 53186 Revision 5 (414) 302-2299 Page 14 www.telkonet.com...
  • Page 18 EcoSource+ are 4. Guest first entry powered up. *How do I know what action the lights should take? Your property previously determined which lights should turn on/off for each “scene”.  Check with your  property’s DOE or other representative for their Lutron lighting “profiles”. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Test Lutron Lighting Scenes (if applicable) Waukesha, WI 53186 Revision 5 (414) 302-2299 Page 15 www.telkonet.com...

  • Page 19: Test Ecosmart/Saflok Communication (If Applicable)

    1. Ensure the EcoSource+ and Saflok are joined. 2. Ensure the Saflok batteries work. 3. Rejoin Saflok to the EcoSource+ EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Test EcoSmart/Saflok Communication (if applicable)

  • Page 20: Commission Ecotouch

    2) Config Back Continued on next page. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Commission EcoTouch+ Waukesha, WI 53186 Revision 5 (414) 302-2299 Page 17 www.telkonet.com...
  • Page 21 8) Do not enter the room for 15 minutes while commissioning is in progress. Abort Continued on next page. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Waukesha, WI 53186 Revision 5...
  • Page 22 Pass or Fail. 10) Look for “Pass” next to each line (N/A for HVAC systems  without heat). In this example, everything passes. Touch Back, then proceed to  back all the way out of the Config Menu.  Commissioning is complete. If FAIL message appears, see next page. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Waukesha, WI 53186 Revision 5 (414) 302-2299 Page 19 www.telkonet.com...

  • Page 23: If Commissioning Test Fails

    1. Look at the message displaying which mode and/or fan speed is malfunctioning. 2. Repair the HVAC malfunction. 3. Run commissioning test again (touch Retest). EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Waukesha, WI 53186...

  • Page 24: Regular Maintenance

    3. Verify that the AC power is being supplied to the HVAC system. 4. Verify that the power/data wiring between the EcoSource+ and the EcoTouch+ are intact and connected. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Appendix ARegular Maintenance...
  • Page 25 However, in this state energy savings will be lost. If in doubt whether the sensors are associated, re-associate all Sensors. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Appendix ARegular Maintenance...

  • Page 26: Ecotouch+ Configuration Changes

    1. On the EcoTouch+, “three-finger tap” anywhere on the screen. 2. The System Status screen appears. 3. Touch Exit when done. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Appendix AEcoTouch+ Configuration Changes...

  • Page 27: Ecotouch+ Faq's

    The EcoTouch+ screen “wakes up” when it senses someone approaching the EcoTouch+.  The EcoTouch+ screen will go dark when there is no interaction with the screen for 15 seconds. EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Appendix AEcoTouch+ FAQ’s...

  • Page 28: Troubleshooting

    HVAC unit does not operate. Replace the EcoSource with a known- good unit as a comparison-check. If the replacement unit functions properly, contact Telkonet and begin EcoSource has failed. the RMA process. If the replacement unit does not function properly, consult a local HVAC technician to inspect your HVAC unit.

  • Page 29: Troubleshooting

    Advise the occupant to wait 8 – 20 Occupant returns to room and finds it Telkonet’s RecoveryTime technology is minutes. (This is the typical range of too hot or too cold. enabled to return the room to the defined recovery times requested by occupants’...

  • Page 30: Troubleshooting

    The most common cause is that the Contact Telkonet Customer Support. EcoSmart system is designed to recover Telkonet will research the deployment the temperature within a Comfort history, and determine whether a Zone. The Comfort Zone is completed Settings Sheet was provided programmable by Telkonet, and is to us prior to thermostat shipment.

  • Page 31: Ecotouch+ Guest Screen Controls & User Interface

    Currently this is the 3-finger tap as shown in Figure 11: 3-Finger Tap. Figure 11: 3-Finger Tap EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Appendix AEcoTouch+ Guest Screen Controls & User...
  • Page 32 Touch Gear icon > Select Language > Press up/down arrows to select English, Spanish, French or Portuguese > Back Arrow twice to exit EcoTouch+ IO&M Guide Telkonet, Inc. For Use with Firmware Version 2.x 20800 Swenson Drive, Suite 175 Appendix AEcoTouch+ Guest Screen Controls & User...
