MODEL W1667

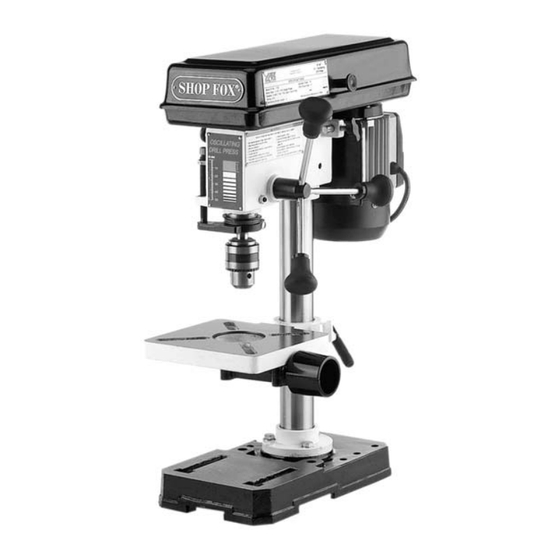

Oscillating Drill Press
8
"
1
2
INSTRUCTION MANUAL
Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@shopfox.biz
COPYRIGHT © 2000 BY WOODSTOCK INTERNATIONAL, INC. REVISED FEBRUARY, 2004.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHOP FOX W1667 and is the answer not in the manual?

Questions and answers

Summary of Contents for Woodstock SHOP FOX W1667

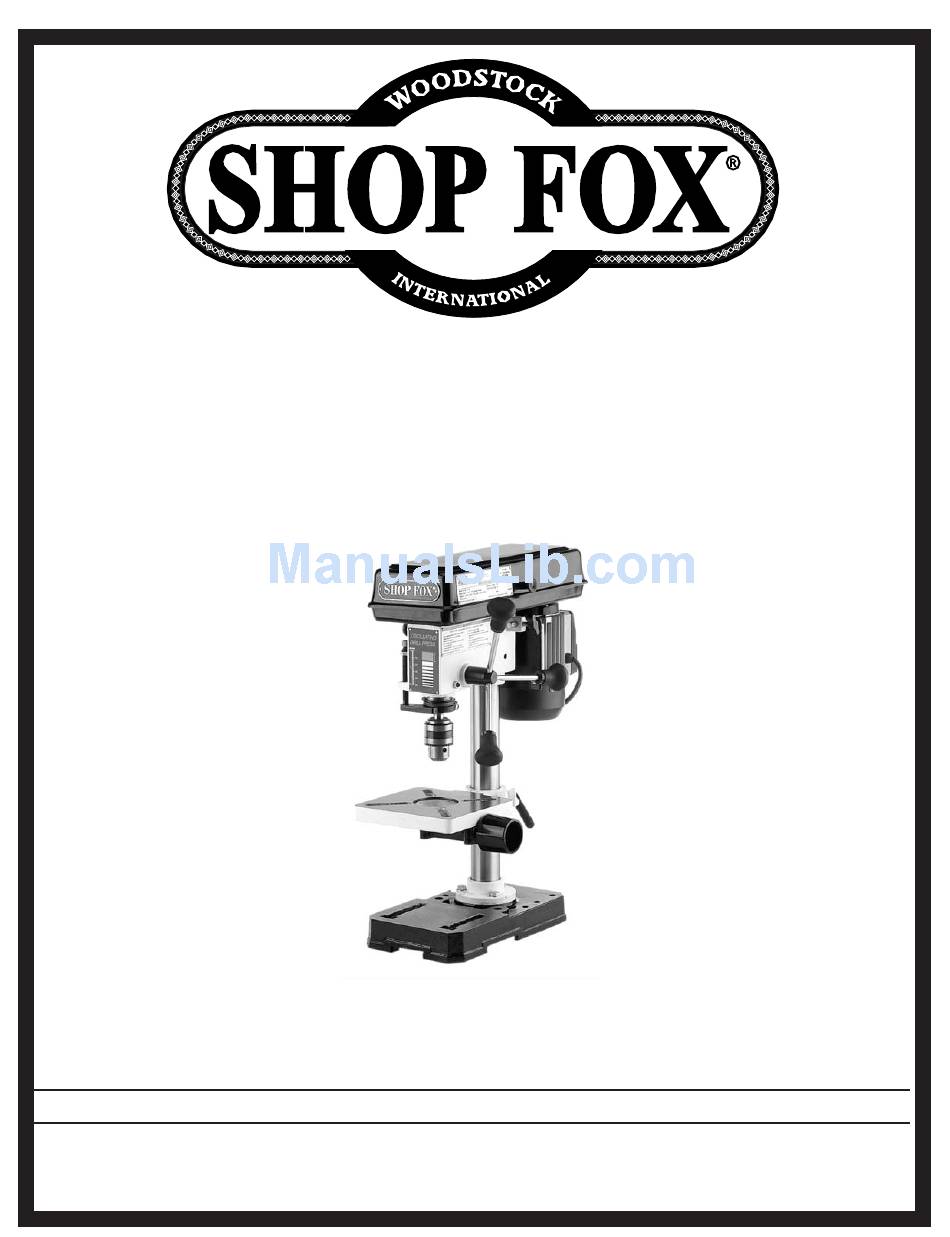

  • Page 1 INSTRUCTION MANUAL Phone: 1-360-734-3482 • On-Line Technical Support: tech-support@shopfox.biz COPYRIGHT © 2000 BY WOODSTOCK INTERNATIONAL, INC. REVISED FEBRUARY, 2004. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
  • Page 2 WARNING Some dust created by power sanding, sawing, grind- ing, drilling, and other construction activities con- tains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: • Lead from lead-based paints. •...
  • Page 3: Table Of Contents

    INTRODUCTION ...2 About Your W1667 8 1⁄2'' Oscillating Drill Press ...2 Woodstock Service and Support ...2 Warranty and Returns ...3 Specifications ...3 SAFETY ...4 Standard Safety Instructions ...4 Additional Safety Instructions for Drill Presses ...5 Avoiding Potential Injuries ...6 ELECTRICAL ...7 110V Operation...7...
  • Page 4: Introduction

    ® This new Model W1667 8 Woodstock International, Inc. to provide many years of trouble free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation. The Model W1667 8 ⁄...
  • Page 5: Warranty And Returns

    We do not warrant that with the provisions of any law or acts. In no event shall Woodstock International, Inc.'s liability under this warranty exceed the purchase price paid for the product, and any legal actions brought against Woodstock International, Inc.
  • Page 6: Safety

    READ MANUAL BEFORE OPERATING MACHINE FAILURE TO FOLLOW INSTRUCTIONS BELOW WILL RESULT IN PERSONAL INJURY Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.
  • Page 7: Additional Safety Instructions For Drill Presses

    12. DO NOT force tool. The machine will do a safer and better job at the rate for which it was designed. 13. Use correct tool. DO NOT force machine or attachment to do a job for which it was not designed. 14.
  • Page 8: Avoiding Potential Injuries

    Avoiding Potential Injuries Figure 2. Keep fingers away from spinning drill Figure 1. Never drill while holding the bits, cutters, and sanding surfaces. workpiece by hand. Figure 3. Remove switch safety key when Figure 4. Remove handles when using the not in use.
  • Page 9: Electrical

    110V Operation SHOP FOX ® W1667 8 ⁄ '' Oscillating Drill Press can only be operated at 110 volts (see Figure 5). The motor draws approximately 5 amps. Choose an outlet with a 10 amp circuit breaker or fuse protection. Remember circuits being used by other machines at the same time add to the total electrical load being applied by this machine.
  • Page 10: Assembly

    Inventory the components in a similar fashion as shown in Figure 6, and assembly will be quicker and easier. If any part is missing, examine the packaging carefully and check under the belt guard. If any parts are still missing, contact Woodstock International, Inc. at 1-360-734-3482 or tech-support@shop- fox.biz.
  • Page 11: Base And Column

    Base and Column The base and column must be securely mount- ed, so if drilling an odd-shaped workpiece the machine will not fall over. To install the base and column, do these steps: 1. Position the drill press base on a flat and stable surface.
  • Page 12: Table

    Table When installed correctly, the table should lock in position with firm lever torque. To install the table, do these steps: 1. Thread the table lock handle 3 turns into the table support bracket. 2. Insert the lock shoe into the pocket locat- ed inside the hole of the table support bracket.
  • Page 13: Headstock

    Headstock The headstock must be tightened in position with the setscrew so the headstock is aligned with the drill press base for balance and weight distribution. DO NOT over tighten the set screw and strip the threads or bend the column.
  • Page 14: Drill Chuck

    Drill Chuck The drill chuck is seated to the spindle with a JT-33 tapered surface and a screw. To install the drill chuck, do these steps: 1. Clean the drill chuck and spindle with min- eral spirits and follow all safety warnings on the container.
  • Page 15: Adjustments

    Belt Tension The drill press drive belt lasts a long time; however, during its life the belt may stretch slightly, which can cause the pulleys to slip under a load. You will then need to adjust the drive belt tension. NOTICE The oscillator belt is not adjustable.
  • Page 16: Feed Shaft Spring Tension

    Feed Shaft Spring Tension The feed shaft return spring is adjusted at the fac- tory; however, during the life of the drill press you may want to adjust the feed shaft return spring at a stronger return pressure. MAKE SURE your machine is unplugged assembly, adjustments, or maintenance procedures.
  • Page 17: Quill-Shaft Screw

    7. Engage the next available spring-cover lock slot with the locking lug, and hold the spring lock cover tightly against the side of the headstock. See Figure 21. 8. Snug the cover nut against the spring cover just until the nut stops, and then back-off the nut approximately ⁄...
  • Page 18: Table Height / Tilt

    Table Height / Tilt You can adjust the table height and angle to accommodate for workpiece height or achieve special drilling/sanding angles. You can also move the table out of the way and use the drill press base as a table for drilling/sanding. SUPPORT table before loosening lock knob.
  • Page 19: Drilling Speed

    Drilling Speed The Model W1667 8 ⁄ '' Oscillating Drill Press has 5 speeds ranging from 620 to 3100 RPM. Refer to the speed charts located under the belt guard while following the instructions below. UNPLUG the drill press before changing speeds to avoid accidental start up.
  • Page 20: Drill Press Rpm Chart

    Drill Press RPM Chart Use Figure 30 to select the optimum motor-to-spindle pulley ratio for drilling, cutting, and sanding operations. Refer to the Drill, Cutter, and Saw RPM Chart on Page 19 for suggested tool RPMs. Drilling Depth Your new drill press comes fitted with a depth stop that allows drilling holes at a preset depth.
  • Page 21: Drill, Cutter, And Hole Saw Suggested Rpm Chart

    -19-...
  • Page 22 -20-...
  • Page 23: Operations

    Starting the Drill Press Once assembly is complete and adjustments are done to your satisfaction, you are ready to start the drill press. Every time you start the drill press, you should follow these basic instructions. WEAR safety glasses and respirator drilling or sanding oper- ations.
  • Page 24: Drill/Drum Changes

    Drill/Drum Changes NEVER troubleshoot or adjust the machine while it is running. Wait until the machine is turned off, unplugged and all working parts have come to a stop before proceeding! To change drill bits and sanding drums, do these steps: 1.
  • Page 25: Using The Oscillator

    Using the Oscillator One of the great features of the Model W1667 ⁄ '' Oscillating Drill Press is its sanding capa- bility. The drill press can be converted from drilling operations to sanding operations in just a few steps. UNPLUG the machine and remove all handles before using the oscillating fea- ture.
  • Page 26 7. Choose the insert that has an opening which is slightly bigger than the sanding drum chosen. See Figure 39. 8. Insert the sanding drum mandrel into the chuck and set the chosen table insert into the pocket in the top of the table. See Figure 40.
  • Page 27: Table And Base

    General Periodic maintenance on your Model W1667 ⁄ '' Oscillating Drill Press will ensure its opti- mum performance. Make a habit of inspecting your drill press after each use. NEVER adjust or service the machine while it is running. Wait until the machine is turned off, unplugged and all working parts have come to a stop...
  • Page 28: Troubleshooting

    Troubleshooting Use this table to isolate and correct any problems with your drill press. If you cannot correct a problem, contact Woodstock International, Inc. at 1-360-734-3482 or tech-support@shopfox.biz. -26-...
  • Page 29: Parts Diagram

    Parts Diagram...
  • Page 30: Parts List

    PART # DESCRIPTION X1667001 BASE X1667002 COLUMN XPB09M HEX BOLT M8-1.25 X 20 X1667004 TABLE BRACKET X1667005 TABLE XPB25M HEX BOLT M12-1.75 X 25 X1667007 LOCK HANDLE M10 X1667008 HEAD CASTING X1667009 SPECIAL DEFLECTION SCREW XPN01M HEX NUT M6-1.0 X1667011 FEED SHAFT X1667012 HANDLE BAR...
  • Page 31: Drill Press Accessories

    Dealer. If you do not have a dealer in your area, these products are also available through online deal- ers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of deal- ers at: 1-800 840-8420 or at sales@woodstockint.com.
  • Page 32 Cutters, Countersink Bits, and Stubby Drill Bits to satisfy every need. Whether for do-it-yourselfers or professional woodworkers, you can depend on Woodstock International Inc. to manufacture a useful selection of drilling and cutting tools. Refer to http://www.woodstockint.com/drilling.cfm for a complete product line available through your dealer.
  • Page 33: Warranty Card

    ___12" Table Saw ___12" Jointer ___Combination Planer/Jointer ___Paint & Finnish Supplies ___Contractor’s Supplies _____other________________________________________________ What new accessories would you like Woodstock International to carry? _________________________________________________________ _________________________________________________________ Do you think your purchase represents good value? ___Yes Would you recommend SHOP FOX...
  • Page 34 FOLD ALONG DOTTED LINE FOLD ALONG DOTTED LINE WOODSTOCK INTERNATIONAL, INC. P.O. BOX 2309 BELLINGHAM, WA 98227-2309 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
