OM-07264-07
February 14, 2020
INSTALLATION, OPERATION,
AND MAINTENANCE MANUAL
WITH PARTS LIST
S SERIES

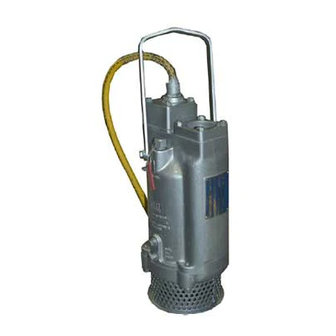

SUBMERSIBLE PUMP
MODEL
S3A1 230V 1P
GORMAN‐RUPP PUMPS
www.grpumps.com
e
2020 Gorman‐Rupp Pumps
Printed in U.S.A.
