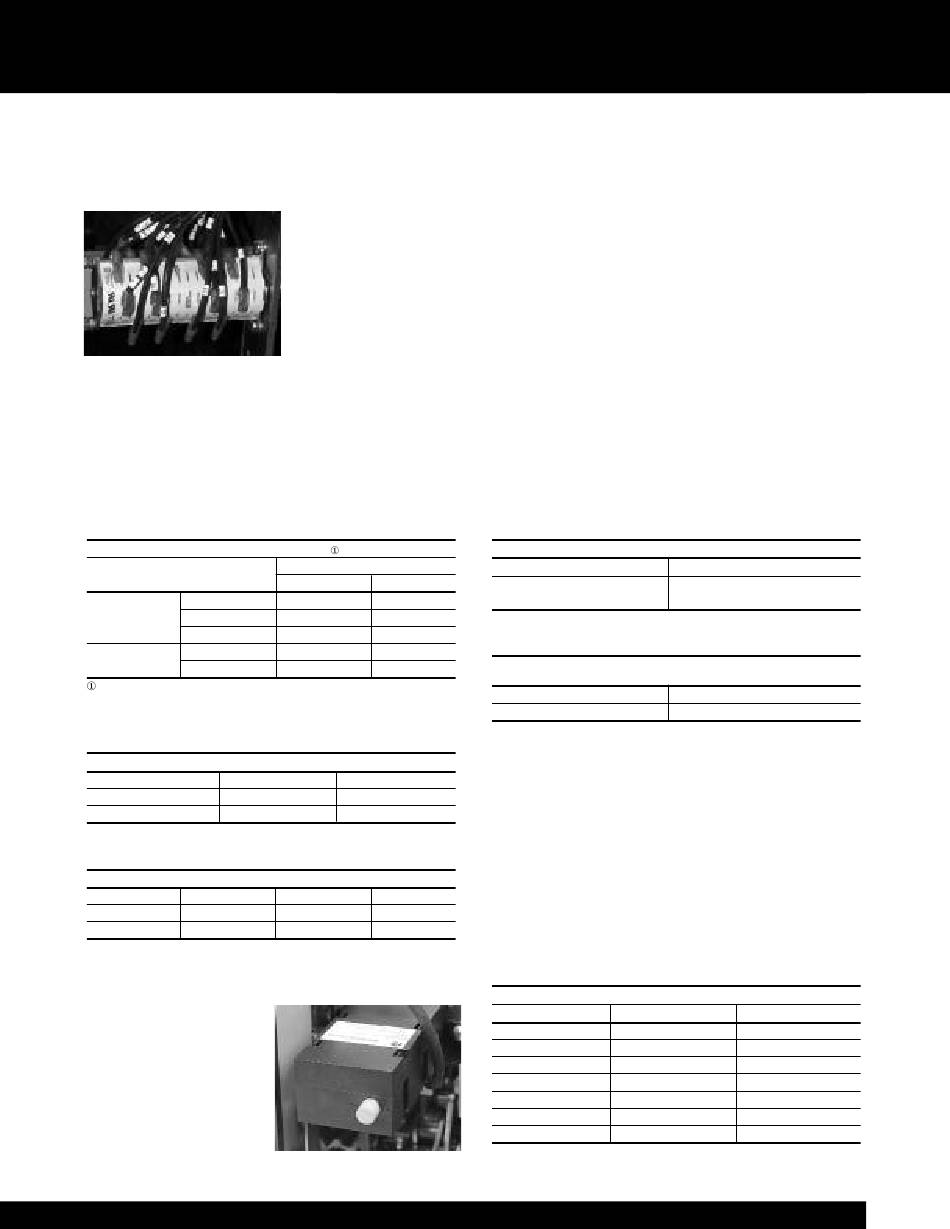

Auxiliary Switch (Field installable kit available)
The auxiliary switch is used for indication of breaker main
contact position. It is available on manually and electrically
breaker primary contact position while normally closed
(NC) contacts operate opposite the breaker primary con-
tacts. All auxiliary switch contacts feature rugged double-
break construction. Refer to breaker wiring diagram
10057403P1 for contact configurations and secondary dis-
connect terminations. Ratings of the auxiliary switch con-
tacts are shown in Table 7.1.
Table 7.1 Auxiliary switch ratings and contact operation
Auxiliary Switch Ratings
Control Voltage
24
DC 125
250
120
AC - 60Hz
240
20A continuous rating of switch limited to 15A continuous
rating of #16AWG wire on drawout breakers
Table 7.2
Auxiliary switch contact operation
Breaker primary contacts "a"-contact (NO)
Open or tripped Open
Closed Closed
Table 7.3
Field installable auxiliary switch kit catalog numbers
Auxiliary switch WP-08 / 16 / 20
Four stage WPAUXSF4STG
Seven stage WPAUXSF7STG
Bell Alarm with/without Lockout (Field installable kit available)
The bell alarm device is provided with two C-form contacts
— each C-form contact is
1NO and 1NC contact with
a common connection. The
bell alarm device operates
whenever the breaker trips
due to a protective function
of the trip unit. It can be
used to provide remote indi-
operated breakers in either
a 4-stage or 7-stage config-
uration. The 4-stage switch
yields 3NO and 3NC con-
tacts while the 7-stage
switch yields 6NO and 6NC
contacts. Normally open
(NO) contacts follow the
Rating (Amperes)
Non-inductive Inductive
15 10
10 5
5 5
15 15
10 10
"b"-contact (NC)
Closed
Open
WP-32 / 40 WP-50
WPAUXLF4STG WPAUXXF4STG
WPAUXLF7STG WPAUXXF7STG

Accessories for Drawout Breakers

cation of a fault trip and/or disable electrical operation of
breakers that may have automatic control.
For Power+™ and MicroVersaTrip Plus™ trip units, the bell
alarm will operate for overload, short circuit and ground
fault trips. For MicroVersaTrip PM™ trip units, the bell
alarm will operate for the same overcurrent trips plus any
of the protective relay trips that are enabled in the trip unit.
Tripping via the manual trip button, shunt trip, undervoltage
device or open fuse lockout will not operate the bell alarm.
The bell alarm can be furnished with a mechanical lockout
feature that will prevent the breaker from being manually
closed until the lockout is reset. Reset of the contacts and lock-
out feature is accomplished by pushing the yellow "reset" but-
ton on the breaker escutcheon. The reset button also serves as
a target indicator that the bell alarm has been operated.
Ratings of the bell alarm contacts are shown in Table 7.4.
Table 7.4 Bell alarm contact ratings
Bell Alarm Contact Ratings
AC Ratings
6A @ 240Vac
Table 7.5
Field installable bell alarm kit catalog numbers
(Kit provides choice of with or without lockout)
WP-08 / 16 / 20
WPBASF
Electrical Lockout (Field installable kit available)
The electrical lockout device provides a means to electrically
enable or disable manual closing of a circuit breaker. This
device must be energized prior to attempting to manually
close the breaker. Once the breaker is closed, loss of voltage
will not trip the breaker. A manual bypass interlock is pro-
vided for initial startup. Refer to the undervoltage device for
ratings and coil characteristics. (Note: Interlocking of elec-
trically operated breakers does not require an electrical
lockout device.)
Table 7.6
Field installable electrical lockout kit catalog numbers
Control voltage WP-08 / 16 / 20
120Vac 50/60Hz WPELSF56120
240 Vac 50/60Hz WPELSF56240
24Vdc WPELSFDC024
48Vdc WPELSFDC048
110Vdc WPELSFDC110
125Vdc WPELSFDC125
250Vdc WPELSFDC250
DC Ratings
0.5A @ 125Vdc
0.25A @ 250Vdc
WP-32 / 40 / 50
WPBALF
WP-32 / 40 / 50
WPELLF56120
WPELLF56240
WPELLFDC024
WPELLFDC048
WPELLFDC110
WPELLFDC125
WPELLFDC250
