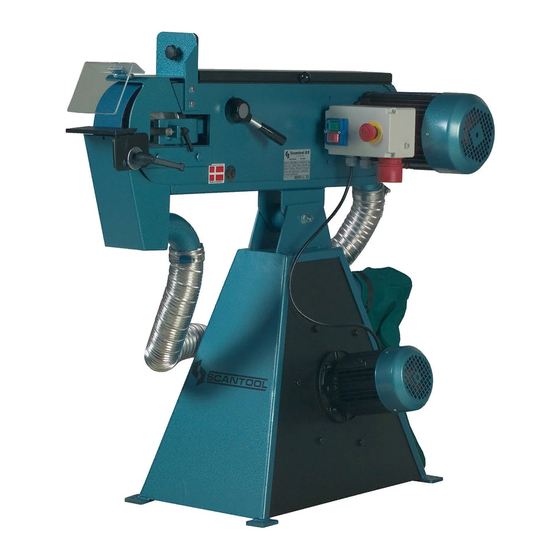

- Page 1 Industrivej 3-9 DK-9460 Brovst Tlf.: +45 98 23 60 88 Fax:+45 98 23 61 44 User Manual for Centerless Grinding Attachment CG/CGX 75...
- Page 2 Ph.: +45 98 23 60 88 Fax.: +45 98 23 61 44 hereby declares that SCANTOOL Centerless Grinding Attachment CG/CGX 75 are manufactured in accordance with the provisions of the European Parliament and Council Directive 2006/42 / EC of 17 May 2006 And also in accordance with: •...
-
Page 3: Table Of Contents
Table of contents TRANSPORT 1.1 T RANSPORT 1.2 C ENTERLESS RINDING TTACHMENT CONSISTS OF HOW TO MOUNT THE CENTERLESS GRINDING ATTACHMENT 2.1 DISMOUNTING 2.2 M OUNTING OF ENTERLESS GRINDING ATTACHMENT 2.3 C HECK FOLLOWING BEFORE USE OF THE ATTACHMENT OPERATION INSTRUCTION 3.1 H OW TO OPERATE THE MACHINE 3.2 S... -
Page 4: Transport
1.0 Transport 1.1 Transport The Centerless Grinding Attachment is packed in a cardboard box with the measurements LxWxH = 886x330x290mm / 35x13x11 inch. 1.2 Centerless Grinding Attachment consists of 1. Support table 2. Cover for the motor with nylon surface 3. -
Page 5: How To Mount The Centerless Grinding Attachment
2.0 How to mount the Centerless Grinding Attachment 2.1 DISMOUNTING Following parts are necessary to dismount on the belt grinder before the Centerless grinding attachment can be mounted to the machine. Disconnect from power supply and take the parts off the belt grinder in following order: 1. -
Page 6: Mounting Ofc
2.2 Mounting of Centerless grinding attachment See fig. 2.3 below. 1. Mount the new aluminium drive wheel with hard rubber surface (D) on the motor. 2. Fit the grinding belt. 3. Mount the blue side plate without tightening the bolts completely. 4. -
Page 7: Check Following Before Use Of The Attachment
Fig 2.3 Black Top Cover Centerless Grinding attachment Support Wheel Vertical centreline for drive wheel Handle for adjustment of centreline Vertical centreline for grinding object Top cover for motor with Nylon Cover for Exhaust Spigot Support Table Fan cover on motor 2.3 Check following before use of the attachment 1. - Page 8 opposite direction of the driving wheel of the Centerless grinding attachment. The feeding speed can be adjusted by turning the driving part to the right or to the left. Running direction for tube/pipe Running direction for drive wheel Fig.: 3.1 Direction of rotation for grinding belt...
-
Page 9: Safety Instructions
3.2 Safety instructions When using the Centerless grinding attachment the existing safety rules must be kept in order to avoid personal or material injury when working with the belt grinder. User Do not wear loose clothing, gloves, rings, bracelets, or other jewellery to get caught in moving parts. -
Page 10: Spare Parts
4.0 Spare parts 4.1 Drawing of Centerless Grinder without Exhaust system (CG) Fig.: 4.1... - Page 11 When ordering of spare parts please state the machine type and serial number together with item number and a description of the part according to the list below. Pos. Nr. Description CG 75 Base frame for Centerless grinder 1055909 Spring holder...
- Page 12 4.3 Drawing of Centerless Grinder with Exhaust (CGX) Fig.: 4.2...
- Page 13 4.4 Spare part list for Centerless Grinder with Exhaust (CGX) When ordering of spare parts please state machine type and serial number together with item number and description of the part according to this list. Order No. Pos. Nr. Description CGX 75 Base frame for Centerless grinder 1055909...
- Page 14 5.0 Technical data 5.1 Technical specifications MODEL CG 75 / CGX 75 Motor 3x230/400V 0,25 kW r/min. 2800 1,15/0,66 Drive wheel ø150x 50xø19 Support wheel ø35x90xø22 Gear Las 30 i=30:1 Capacity min./max. Ø20/Ø100 Weight 25 kg 5.2 Wiring diagram The Centerless Grinder can be connected to 3 x 400/440 V, 50/60 cycles and to 3 x 230 V 50/60 cycles.
- Page 15 5.3 Guarantee If within 2 years of purchase this Centerless Grinder becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided that: 1. The product is returned complete to one of our Service Branches or Official Service Agents.
