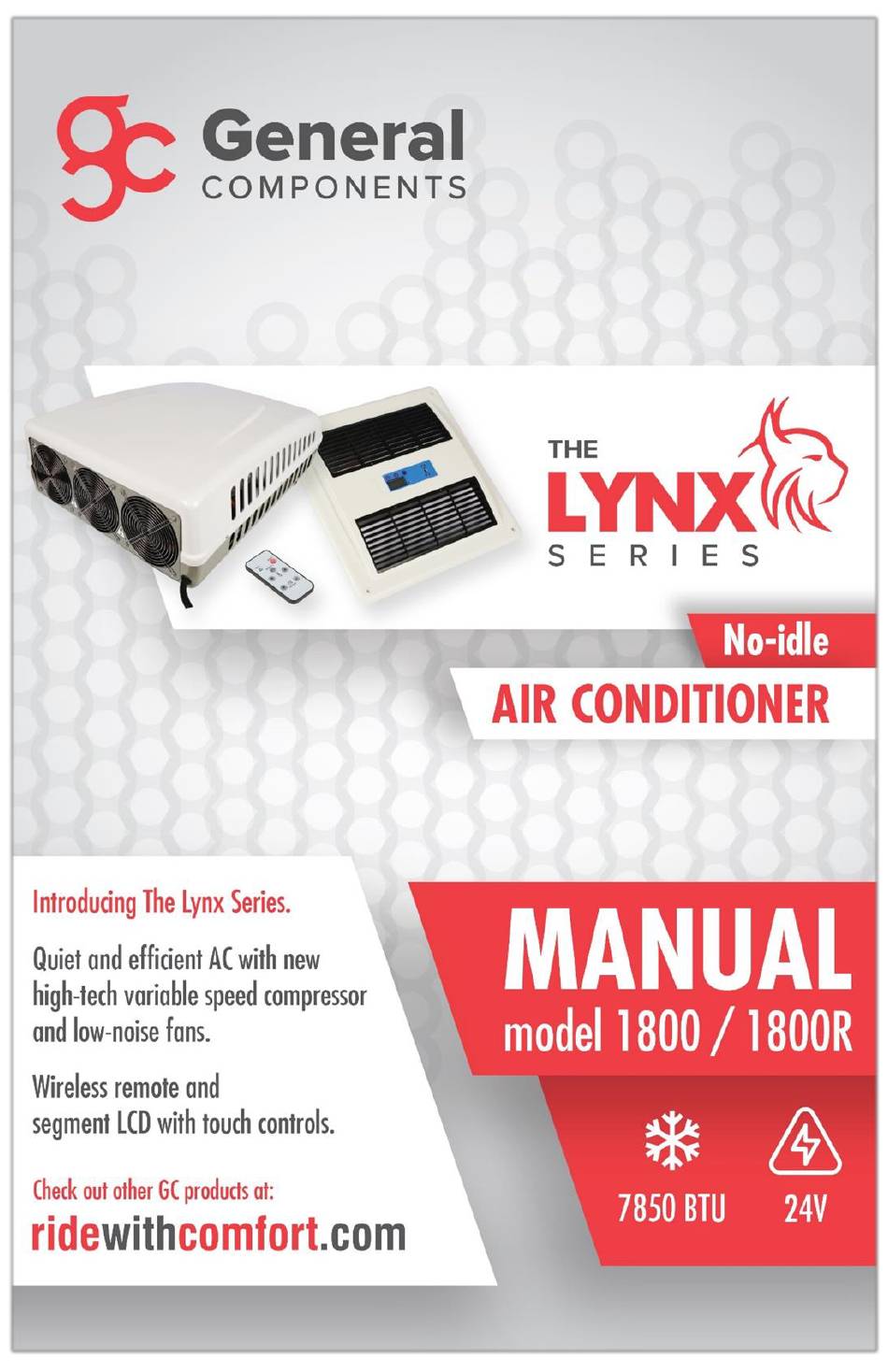

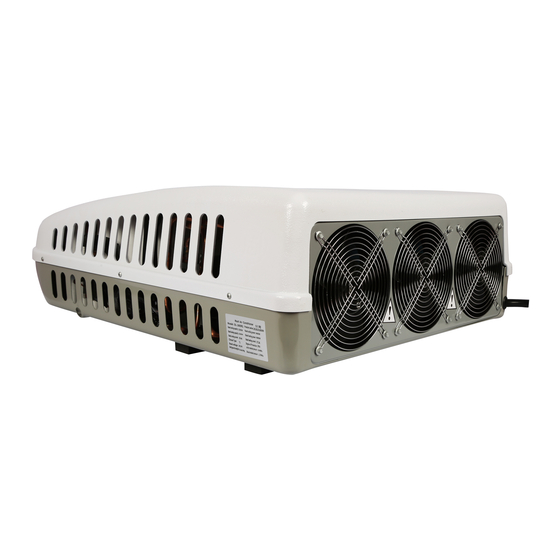

General Components LYNX Series Manual

No-idle, 7850 btu, 24v
Hide thumbs Also See for LYNX Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LYNX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General Components LYNX Series

Summary of Contents for General Components LYNX Series

  • Page 2: Table Of Contents

    Lynx Rooftop 1800 AC User Manual TABLE OF CONTENTS PREFACE ..................2 PRODUCT INFORMATION ............ 3 Ordering Information ..........3 Areas of Application ............ 3 Technical Specifications ..........4 Product Features ............5 PRINCIPLE OF OPERATION ........... 6 Electrical Diagram ............6 Plumbing Diagram ............

  • Page 3: Preface

    PREFACE Thank you for purchasing Lynx No-idle DC rooftop air conditioner. This service manual describes installation and operation procedures, maintenance recommendations and troubleshooting tips. Please read carefully before using the product to enjoy your cool comfort in a safe and efficient manner. info@generalcomponents.ca +1 (800) 517-7740...

  • Page 4: Product Information

    GC6181 24VDC 2300W 7800BTU, ROOFTOP, HEAT AND COOL 1.2 Areas of Application Lynx series rooftop air conditioner is designed for use in a wide variety of automotive applications, such as mobile homes and RV’s, utility vehicles, ambulance, construction vehicles, cargo trucks and heavy-duty equipment.

  • Page 5: Technical Specifications

    1.3 Technical Specifications Model Specification 1800 1800R Electrical Characteristics Rated Voltage, V Rated Current, A 39.4 39.4 Rated Power, W Cooling Characteristics Air Flow, M Cooling Capacity, W 2300 2300 Cooling Capacity, BTU 7800 7800 EER W/W 2.45 2.45 Heating Characteristics –...

  • Page 6: Product Features

    Lynx Rooftop 1800 AC User Manual 1.4 Product Features Lynx series rooftop air conditioner can provide up to 8 hours of no-idle cooling with standard capacity APU, and delivers high cooling performance, ultra-low vibration and noise and high energy efficiency thanks to the following features: ...

  • Page 7: Principle Of Operation

    2. PRINCIPLE OF OPERATION 2.1 Electrical Diagram info@generalcomponents.ca +1 (800) 517-7740...

  • Page 8: Plumbing Diagram

    Lynx Rooftop 1800 AC User Manual 2.2 Plumbing Diagram...

  • Page 9: Installation And Commissioning

    3. INSTALLATION AND COMMISSIONING 3.1 Before the Install Ease of install is one of the main pros of Lynx series AC. All refrigerant-carrying components of this kit are factory-tested for leaks and proven safe. Every kit comes pre-charged with refrigerant and contains all parts and hardware required for installation: ...
  • Page 10 Lynx Rooftop 1800 AC User Manual WARNING Do not install this product in places where combustible gas or vapor may be present. Do not shorten, extend or in other ways modify factory- provided refrigerant-carrying parts. Doing so will void the warranty and will cause equipment malfunctions.

  • Page 11: Installation

    3.2 Installation Before mounting the rooftop unit, following points should be considered:  Unit placement: fans facing back of the vehicle.  Roof composition: wiring, plumbing, moving (sun roof) or load-bearing parts (cross-beams) that cannot be disturbed or obstructed.  Unit should be installed horizontally, ±8° max., onto a flat, even surface.
  • Page 12 Lynx Rooftop 1800 AC User Manual...

  • Page 13: Mounting The Unit

    3.2.1 Mounting the Unit 1. Make a 360*360mm ( 14 3/16” * 14 3/16”) cut-out in the desired location. Keep in mind that the cut-out is not in the middle of the AC unit, but is closer to the front of the vehicle: info@generalcomponents.ca +1 (800) 517-7740...
  • Page 14 Lynx Rooftop 1800 AC User Manual 2. Place the rooftop unit into position on top of the vehicle. 3. Place flange on the inside and secure it with the bolts provided with the kit. Install the sleeve, if provided. 4. Make electrical connection between the rooftop unit and indoor panel, then secure indoor panel to the flange with screws provided with the kit.
  • Page 15 Front of the vehicle  info@generalcomponents.ca +1 (800) 517-7740...

  • Page 16: Making Electrical Connection

    Lynx Rooftop 1800 AC User Manual 3.2.2 Making electrical connection Connect positive and negative supply conductors to the APU. Total length of supply conductors should not exceed 5 meters (15 feet). Adequate support, mechanical and thermal protection should be provided to prevent friction and consequent insulation damage.

  • Page 17: Commissioning

    3.2.3 Commissioning After the power is applied, simply run the unit as described in operating instructions. Look for abnormal noise, vibration or smell. Let the unit run continuously at full power for at least twenty minutes. If no faults came up on the operator panel and the unit runs smooth –...

  • Page 18: Troubleshooting

    Lynx Rooftop 1800 AC User Manual 4. TROUBLESHOOTING All work on the unit should be carried out by qualified and certified individual. If unit is not performing as expected, or display is showing a fault code – stop using the unit and refer to a professional.

  • Page 19: Operating Instructions

    5. OPERATING INSTRUCTIONS Operation of the unit is very simple and self-explanatory. It could be done via remote control or control panel on the unit itself. When a button pressed on the remote, the unit should beep once to acknowledge the command. ...
  • Page 20 Lynx Rooftop 1800 AC User Manual  The unit should not be used at temperatures below +5℃ (41℉) or above +43℃ (110℉).

  • Page 21: Maintenance

    6. MAINTENANCE Regular yearly maintenance of the unit should be carried out before warm season and should consist of the following items:  Clean condensate drain hose;  Clean condenser coil and fan from dust;  Clean evaporator coil and fan from dust; ...

  • Page 22: Parts List

    Lynx Rooftop 1800 AC User Manual 7. PARTS LIST Part name Q’ty Condenser fan GC1059 Evaporator Fan GC1060 24VDC Rotary Compressor GC1061 Evaporator GC1062 Condenser GC1063 Compressor driver GC1064...
  • Page 23 info@generalcomponents.ca +1 (800) 517-7740...
  • Page 24 Lynx Rooftop 1800 AC User Manual...
  • Page 25 info@generalcomponents.ca +1 (800) 517-7740...
  • Page 26 Lynx Rooftop 1800 AC User Manual...
  • Page 27 info@generalcomponents.ca +1 (800) 517-7740...
  • Page 28 Lynx Rooftop 1800 AC User Manual 203 – 1515 Broadway St Port Coquitlam, BC Canada, V3C 6M2 +1.800.517.7740 | +1.604.677.6210 info@generalcomponents.ca June 2020...
