Summary of Contents for General Components Lynx Series
-
Page 2: Table Of Contents
Lynx No-Idle Split AC User Manual TABLE OF CONTENTS PREFACE ......................2 PRODUCT INFORMATION ................ 3 Ordering Information ..............3 Areas of Application ............... 3 Technical Specifications ..............4 Product Features................5 PRINCIPLE OF OPERATION ............... 6 Electrical Diagram ................6 Plumbing Diagram................ -
Page 3: Preface
PREFACE Thank you for purchasing Lynx No-idle DC split type air conditioner. This service manual describes installation and operation procedures, maintenance recommendations and troubleshooting tips. Please read carefully before using the product to enjoy your cool comfort in a safe and efficient manner. info@generalcomponents.ca +1 (800) 517-7740... -
Page 4: Product Information

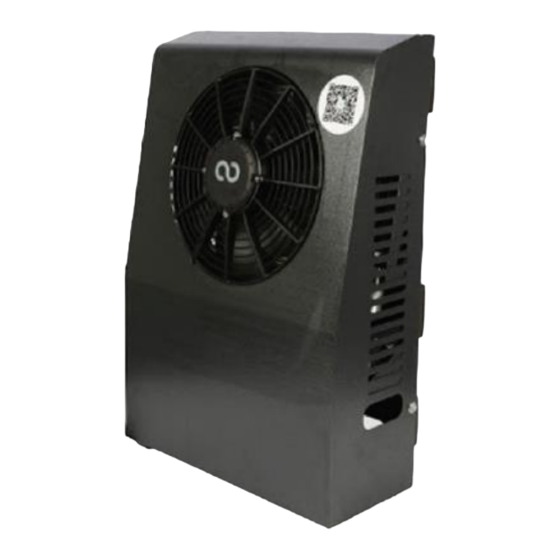

GC6181 12VDC 2000W 6800BTU SPLIT AIR CONDITIONER KIT 1.2 Areas of Application Lynx series split type air conditioner is designed for use in a wide variety of automotive applications, such as utility vehicles, ambulance, armored vehicles, construction vehicles, cargo trucks and heavy-duty equipment. -
Page 5: Technical Specifications
1.3 Technical Specifications 12VDC Version 24VDC Version Parameter (GC6181) (GC6180) Voltage range, V 11.5~15.5 12.5~32 Rated power, kW/BTU 2/6800 2.6/8800 Current rating, A Current draw, A 25-70 10-45 Airflow, m3/hr 16-32 ℃ Setpoint range Refrigerant type 610±20g R-134a Working pressure 0.4/1.8 Mpa Compressor type 3-phase variable speed, hermetic... -
Page 6: Product Features
Lynx No-Idle Split AC User Manual 1.4 Product Features Lynx series split air conditioner can provide up to 8 hours of no-idle cooling with standard capacity APU, and delivers high cooling performance, ultra-low vibration and noise and high energy efficiency thanks to the following features: ... -
Page 7: Principle Of Operation
2. PRINCIPLE OF OPERATION 2.1 Electrical Diagram info@generalcomponents.ca +1 (800) 517-7740... -
Page 8: Plumbing Diagram
Lynx No-Idle Split AC User Manual 2.2 Plumbing Diagram... -
Page 9: Installation And Commissioning
3. INSTALLATION AND COMMISSIONING 3.1 Before the Install Ease of install is one of the main pros of Lynx series AC. All refrigerant-carrying components of this kit are factory-tested for leaks and proven safe. Every kit comes pre-charged with refrigerant and contains all parts and hardware required for installation: ➢... - Page 10 Lynx No-Idle Split AC User Manual WARNING Installation of this type of equipment requires special skills in refrigeration and electrical fields, requires special tools and instruments and should be carried out only by qualified and certified personnel. Do not install this product in places where combustible gas or vapor may be present.
-
Page 11: Installation
3.2 Installation Before mounting indoor and outdoor units, following points should be considered: ➢ Refrigerant line length: lines should reach both units comfortably, with some slack. Avoid strain tension on the fittings. ➢ Proximity to APU or other power source: outdoor unit should be located as close as practicable to the power source. - Page 12 Lynx No-Idle Split AC User Manual...
-
Page 13: Mounting The Indoor Unit (Evaporator)
3.2.2 Mounting the Indoor Unit (evaporator) The indoor unit needs to be installed upright on the interior wall of the cabin, away from direct sunlight or cross breeze; unit controls should be easily accessible by the end user, unit should not obstruct walkways. Adequate clearance should be maintained around the unit. -
Page 14: Wiring
Lynx No-Idle Split AC User Manual WARNING Compressor is pre-charged with the right amounts of oil and refrigerant. Do not overfill. When adding refrigerant to the system, do not open the high-pressure manual valve, otherwise, the AC system would force the refrigerant into refrigerant container, and push the lubricating oil out, which will damage the system. -
Page 15: Commissioning
3.2.5 Commissioning After power is applied, simply run the unit as described in operating instructions. Look for abnormal noise, vibration or smell. Use manifold gauge to check refrigerant pressure throughout the cooling cycles of the unit. Let the unit run continuously at full power for at least twenty minutes. -
Page 16: Troubleshooting
Lynx No-Idle Split AC User Manual 4. TROUBLESHOOTING All work on the unit should be carried out by qualified and certified individual. If unit is not performing as expected, or display is showing a fault code – stop using the unit and refer to a professional. -
Page 17: Error Codes And Descriptions
4.2 Error Codes and Descriptions Error Code Error Description No error Common software error Pointer error App control data exception Logic error AT Command cache full No signal detected TCP Analysis busy Server reported data error AT Incomplete instructions Connection server error Command sending error Command sending is busy Initializing network failed... - Page 18 Lynx No-Idle Split AC User Manual Over Temperature Protection of Compressor Low Pressure Protection Error finding at AT instruction in data link Indoor temperature sensing error Abnormal compressor shutdown Over Input Voltage Protection, Above 15.5V Low Input Voltage Protection, Below 11V The evaporator temp is below freezing.
-
Page 19: Operating Instructions
5. OPERATING INSTRUCTIONS Operation of the unit is very simple and self-explanatory. It could be done via remote control or control panel on the unit itself. When a button pressed on the remote, the unit should beep once to acknowledge the command. ➢... - Page 20 Lynx No-Idle Split AC User Manual The unit should not be used at temperatures below +5℃ (41℉) or above +43℃ (110℉).
-
Page 21: Maintenance
6. MAINTENANCE Regular yearly maintenance of the unit should be carried out before warm season and should consist of the following items: ✓ Clean condenser coil and fan from dust; ✓ Clean evaporator coil and fan from dust; ✓ Clean evaporator condensate drain from clogs; ✓... -
Page 22: Parts List
Lynx No-Idle Split AC User Manual 7. PARTS LIST... - Page 23 info@generalcomponents.ca +1 (800) 517-7740...
- Page 24 Lynx No-Idle Split AC User Manual...
- Page 25 info@generalcomponents.ca +1 (800) 517-7740...
- Page 26 Lynx No-Idle Split AC User Manual...
- Page 27 info@generalcomponents.ca +1 (800) 517-7740...
- Page 28 Lynx No-Idle Split AC User Manual 203 – 1515 Broadway St Port Coquitlam, BC Canada, V3C 6M2 +1.800.517.7740 | +1.604.677.6210 info@generalcomponents.ca April 2020...
