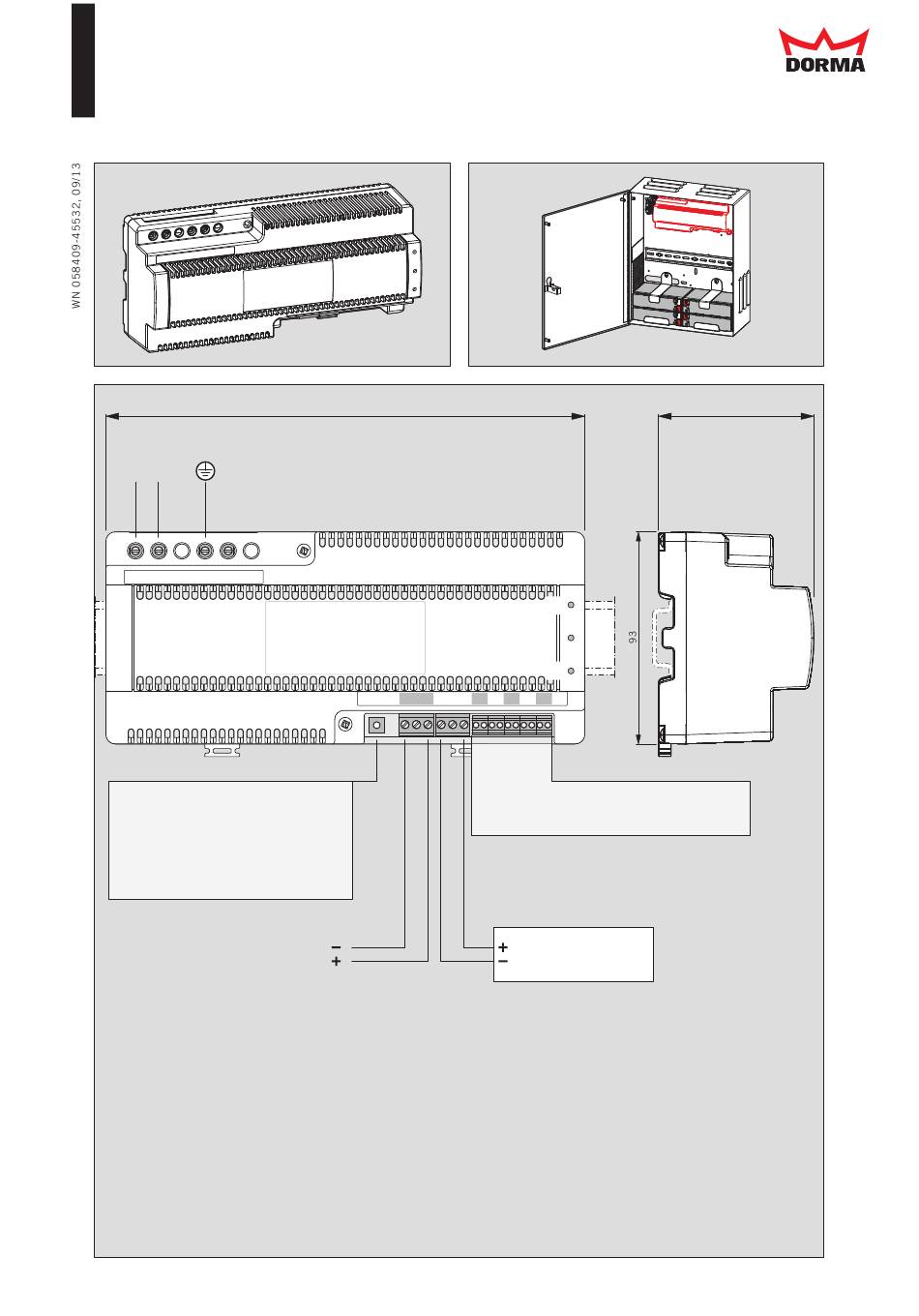

USV-12V DC, USV-24V DC
100 - 240V AC
L
N
Einstellung der Ausgangsspannung
von 12,5V bis 13,8V (USV-12V DC)
von 24,8V bis 27,6V (USV-24V DC)
Output voltage adjustment
from 12.5V up to 13.8V (USV-12V DC)
from 24.8V up to 27.6V (USV-24V DC)
12V DC / 24V DC
Betriebsanzeige LED L1 und L2:
L1:
rot blinkend = Vorladung
rot
= Ladung
grün
= Erhaltungsladung
L2:
orange
= korrekter Betriebszustand
oder Überlast am Ausgang
rot
= Netzspannungsausfall
210
OUT
BAT CH OGBUMAPG
Signalausgänge für das Fernmanagement.
Auxiliary Ouput for the distance management.
Operation mode LED L1 and L2:
L1:
flashing red = Pre charge qualification
red
green
L2:
orange
red
L1
L2
DORMA Akku-Pack
12V DC / 24V DC
= Charging
= Maintenance charging
= Normal operation
or output overload
= Input power fail
68,5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USV-12V DC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dorma USV-12V DC

  • Page 1 12,5V bis 13,8V (USV-12V DC) von 24,8V bis 27,6V (USV-24V DC) Auxiliary Ouput for the distance management. Output voltage adjustment from 12.5V up to 13.8V (USV-12V DC) from 24.8V up to 27.6V (USV-24V DC) DORMA Akku-Pack 12V DC / 24V DC...
  • Page 2 Das Netzteil und die Speiseleitungen müssen von Kondenswasser und Staub ferngehalten werden. Testschaltung CH OG BU MA PG 12V / 24V Belastbarkeit 30V / 50mA Ausgang Zustände USV-12V DC USV-24V DC Wert CH = Batterie in Ladung Vorladung Flash (ca. 2,4Hz) Ladungsphase Low (L) Endladung...
  • Page 3 Outdoors or in the rain. Test circuit CH OG BU MA PG 12V / 24V Rating 30V / 50mA Output Conditions USV-12V DC USV-24V DC Value CH = Battery charging Pre-charge qualification Flash (approx. 2,4Hz) Charge phase Low (L) End charge...
  • Page 4 USV-12V DC, USV-24V DC — DORMA GmbH + Co. KG DORMA Platz 1 58256 ENNEPETAL Tel. +49 2333 793-0 Fax +49 2333 793-4950 www.dorma.com...
