Ikelite 46075 Installation And Use

DL5 DS Link Canon TTL Converter Ikelite
CT1 Hotshoe Kit
Product # 46075
Included in the Box
•
DL5 DS Link Canon TTL Converter # 46074
•
CT1 Canon TTL Hotshoe # 46073
Limited Warranty
This Ikelite product is warranted against any manufacturing
defects for a period of one (1) year from the original date
of purchase. To obtain warranty service, the product must
be returned to Ikelite postage paid. Ikelite will, at its sole
discretion, repair or replace such products, and will return
to customer postage paid. All other claims of any nature are
not covered. Except as mentioned above, no other warranty
expressed or implied applies to this Ikelite product.
Important Notices
The DL5 DS Link is not compatible with other
»
manufacturers' strobes.
Use of two strobes requires a dual sync cord. Two
»
strobes cannot be controlled by individual converters
even if the housing is equipped with two bulkheads.
Compatible Strobes
•
Ikelite DS160, DS161
•
Ikelite DS125 above serial number 5000
•
Ikelite DS51
•
Ikelite DS50 above serial number 70000
•
Ikelite DS200 above serial number 7163
SEA&SEA, INON, Nikonos, and other Ikelite non-DS
»
strobes are not capable of powering the DL5 DS Link
TTL Converter and are not compatible with this product.
Installation and Use

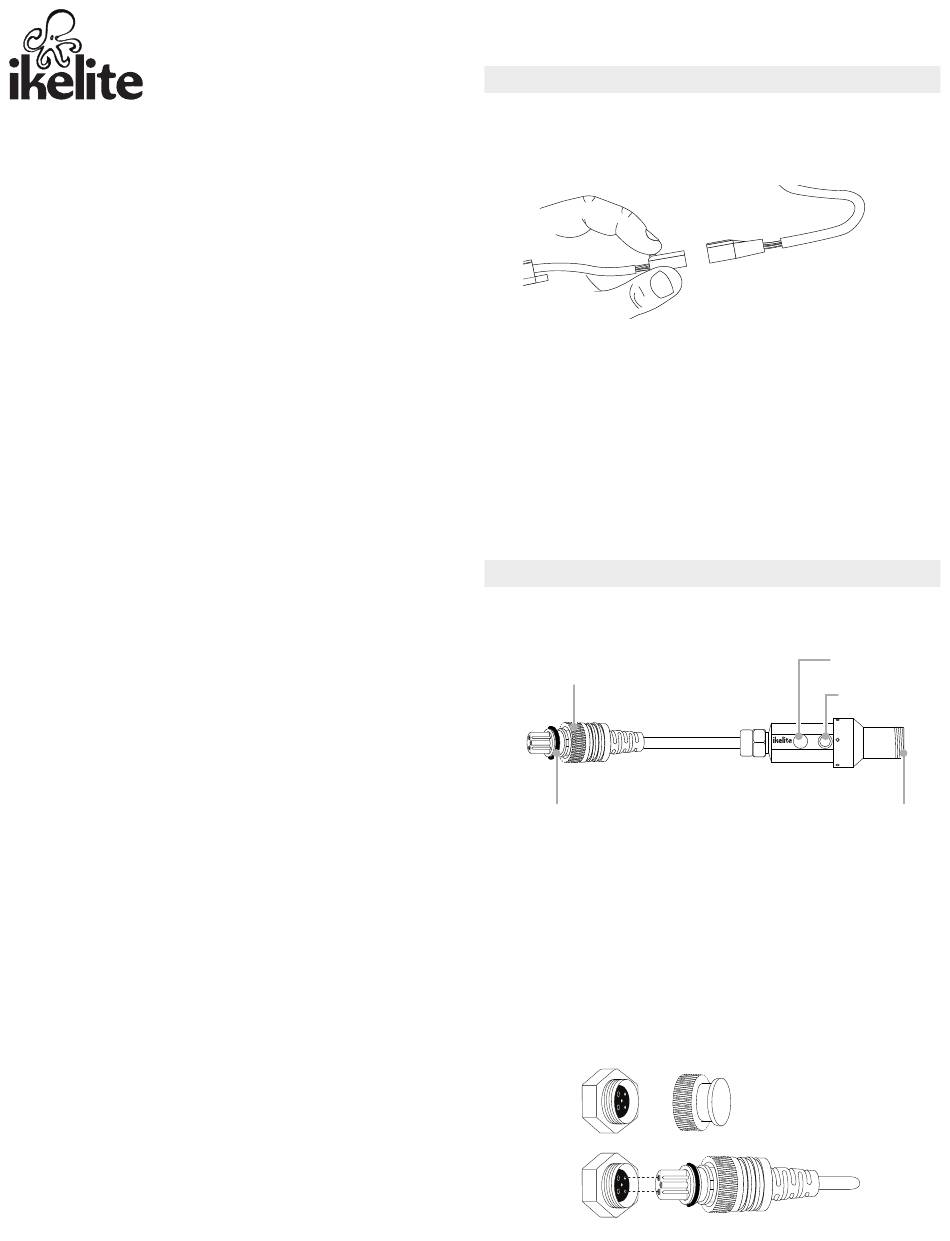

Installing the CT1 TTL Hotshoe
1. Depress the tab on the manual hotshoe connector and
gently pull connector ends apart to remove the housing's
manual hotshoe.
2. Align TTL hotshoe and bulkhead connector ends and
push together until tab clicks into place.
3. Push hotshoe forward into camera's hotshoe mount.
Make sure that the hotshoe is all the way forward to
ensure proper connection.
The CT1 TTL Hotshoe is only intended for use with
»
compatible Ikelite brand housings.
Attaching the Converter
Remove connector protectors and bulkhead caps from
1.
each connection.
Retaining ring
Plug o-ring
2. Apply a very thin, even layer of lubricant on all threads,
sealing surfaces, and the exposed portion of the plug
o-ring. Do not allow lubricant to get into the pins and
receptacles of the plug or bulkheads.
3. Align plug and insert into the housing bulkhead. Each
male pin mates with a female receptacle. Failing to line up
the contacts properly before tightening may result in
damage to the converter plug and/or housing bulkhead.
Mode button
LED indicator
MADE
IN USA
DL1 DS LINK
Bulkhead
