DL5 DS Link Canon TTL Converter Ikelite
CT1 Hotshoe B1A Bulkhead Kit
Product # 46076
Included in the Box
•
DL5 DS Link Canon TTL Converter # 46074
•
CT1 Canon TTL Hotshoe # 46073
•
B1A Bulkhead # 46002
Limited Warranty
This Ikelite product is warranted against any manufacturing
defects for a period of one (1) year from the original date
of purchase. To obtain warranty service, the product must
be returned to Ikelite postage paid. Ikelite will, at its sole
discretion, repair or replace such products, and will return
to customer postage paid. All other claims of any nature are
not covered. Except as mentioned above, no other warranty
expressed or implied applies to this Ikelite product.
Important Notices
The DL5 DS Link is not compatible with other
»
manufacturers' strobes.
Use of two strobes requires a dual sync cord. Two
»
strobes cannot be controlled by individual converters
even if the housing is equipped with two bulkheads.
Compatible Strobes
•
Ikelite DS160, DS161
•
Ikelite DS125 above serial number 5000
•
Ikelite DS51
•
Ikelite DS50 above serial number 70000
•
Ikelite DS200 above serial number 7163
SEA&SEA, INON, Nikonos, and other Ikelite non-DS
»
strobes are not capable of powering the DL5 DS Link
TTL Converter and are not compatible with this product.
Installation and Use
Installing the B1A Bulkhead
1.
Carefully remove the accessory port plug using an 11/16"
wrench.
Remove the nut from the end of the bulkhead with
2.
the cord coming out. Check that the sealing surface
and o-ring on the bulkhead are clean. No lubricant is
necessary.
3.
Thread the bulkhead into the 1/2-20 hole in the top of the
housing being careful not to cross-thread.
Use an 11/16" wrench to carefully tighten down the
4.
bulkhead just until it touches the case. Do not over-
tighten.
5.
Re-attach the nut on the inside of the case. Tighten snug
with a 5/8" wrench.
Installing the CT1 TTL Hotshoe
1.

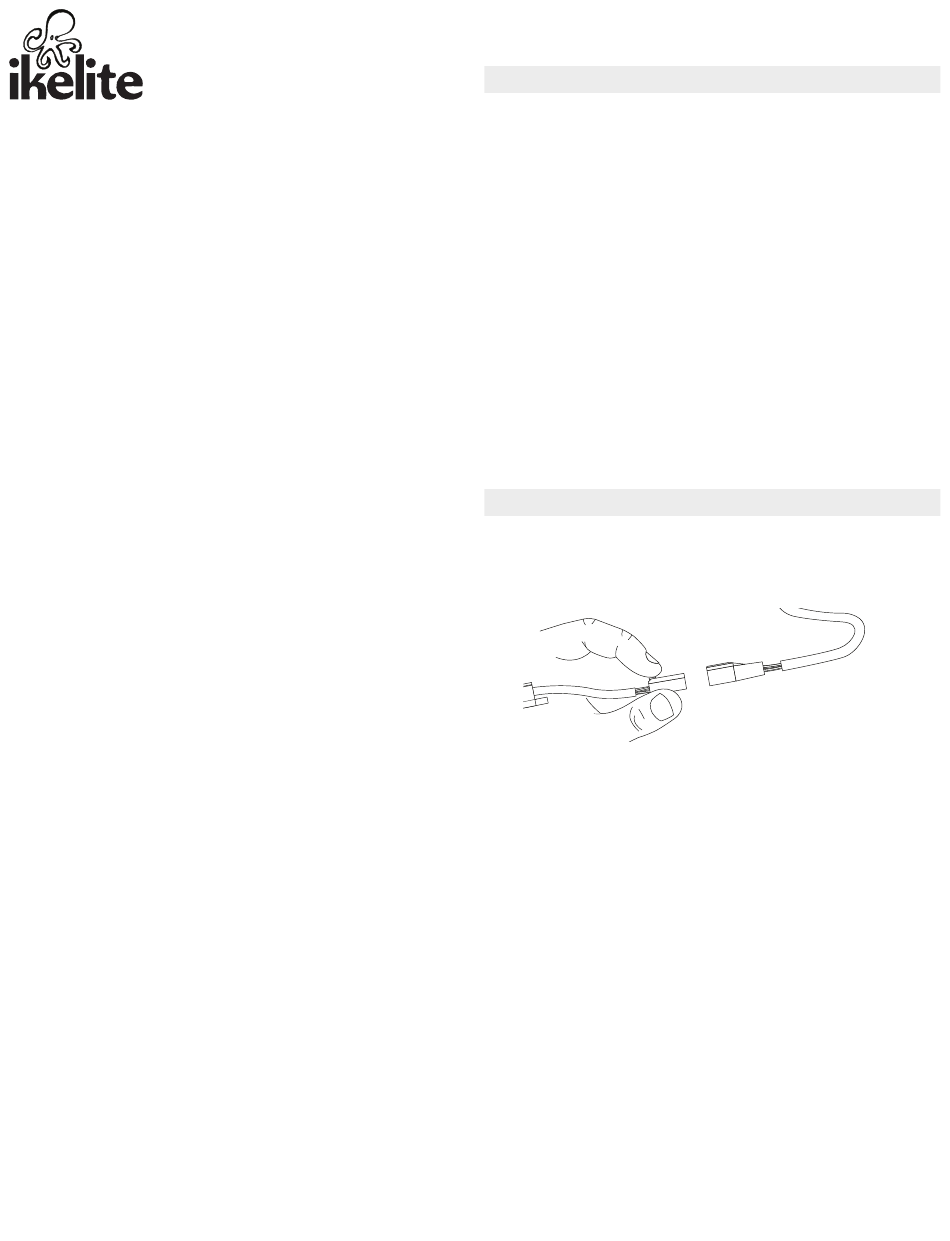

Depress the tab on the manual hotshoe connector and
gently pull connector ends apart to remove the housing's
manual hotshoe.
2.
Align TTL hotshoe and bulkhead connector ends and
push together until tab clicks into place.
3.
Push hotshoe forward into camera's hotshoe mount.
Make sure that the hotshoe is all the way forward to
ensure proper connection.
The CT1 TTL Hotshoe is only intended for use with
»
compatible Ikelite brand housings.
