Summary of Contents for Vibe BlackAir V12

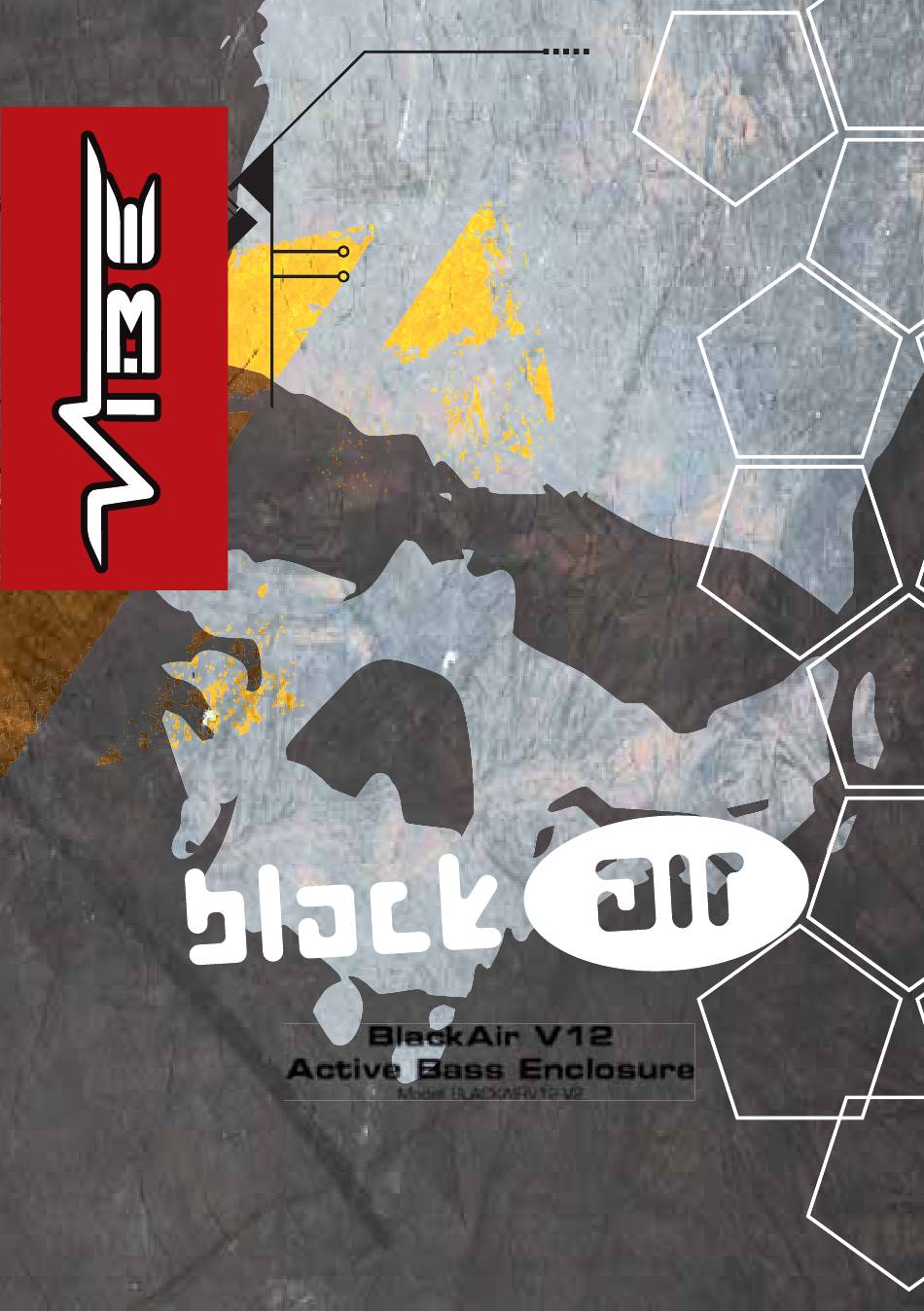

- Page 1 BlackAir V12 Active Bass Enclosure Model: BLACKAIRV12-V2...
- Page 2 Thank you for buying VIBE, we hope you enjoy listening to your product as much as we enjoyed creating it.
-
Page 3: Limited Warranty
COPYRIGHT trade dress may not be used in connection with any product or service that is not VIBE’s, in any manner that is likely to cause confusion among customers or in any manner that disparages or discredits VIBE. All other trademarks not owned by VIBE or its subsidiaries that appear in this manual are the property sentatives will be liable for damages arising out of or in connection with the use of this manual or the information, content, materials or products included. -
Page 4: Mounting Guidelines
MOUNTING GUIDELINES Please mount the enclosure in a dry location on a solid surface. POWER CONNECTIONS 25A Fuse close to battery Battery Chassis ground POWER CABLE passing through any bulkheads to prevent the cable from becoming chaffed or cut. placed inline with the power cable and is no further than eighteen inches away from the battery. -
Page 5: Ground Cable
CONNECTIONS Length of Run Current demand 0 – 4 Ft 4 – 7 Ft 7 – 10 Ft 10 – 13 Ft 13 – 16 F 16 – 19 Ft 19 – 22 Ft 22 – 28 Ft 0–20 amp p s 20–35 amp p s 35–50 amp p s 50–65 amp p s... - Page 6 TERMINALS AND CONNECTIONS 1. Low level input / RCA Cables unit. are placed away from all items that can generate any interference, such as wiring harnesses etc. installed power cables if possible, to avoid the cable picking up interference. 2. High level input 3.
-
Page 7: Installation
INSTALLATION The most common place to mount a bass enclosure is in the luggage compartment of the vehicle. the user to tailor the sound to suit their musical tastes. in sound. NOTE: mounted and cannot move or come into contact with objects in the luggage area. Damage to the enclosure or subwoofer caused by these objects will not be covered under warranty. -
Page 8: Set Up Section
The crossover is now set. RUN IN PROCEDURE VIBE recommends that you follow the run in procedure for the subwoofer detailed below. rigid. It will take time for the moving parts of the subwoofer to loosen up before the subwoofer is ready to deliver it’s full potential. -
Page 9: Troubleshooting
TROUBLESHOOTING AMPLIFIER WILL NOT POWER UP Check for good ground connections. Ensure that the ground cable is connected directly to bare metal and not a painted surface short period of time and then turn back on. PROTECTION LED IS ILLUMINATED Check for shorts on all cables failure to follow the advice in this manual. - Page 10 UK TECHNICAL ENQUIRIES Call 09067031420 All calls are recorded for training purposes. INTERNATIONAL TECHNICAL ENQUIRIES www.vibeaudio.co.uk/contact Please visit for more details.
-
Page 11: Specification
SPECIFICATION ACTIVE SUBWOOFER ENCLOSURE BLACKAIRV12-V2 550 Watts 1600 Watts Fuse rating 25 Amp Height 371mm (14.6”) Width 633mm (24.9”) Depth 430mm (16.9”) © 2013 All Rights Reserved...
