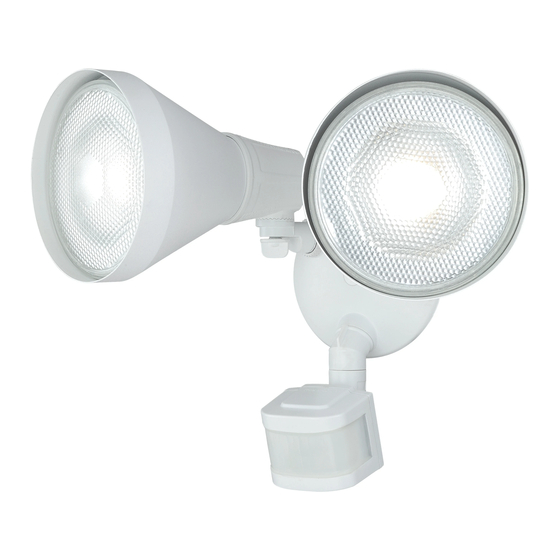

Vaxcel T0175 Assembly And Installation Instructions

ASSEMBLY AND INSTALLATION
T0175 / T0176
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
Mounting Screw X2 Mounting Screw X2
#8/32X1/2 in #6/32 X1/2 in
Important to Know:
1. If you are not familiar with state and local electrical
codes, it is recommended that you consult with a
qualified electrician.
2. This fixture requires a 120 VAC, 60 Hz power
source.
3. For general safety and to avoid any possible
damage to the sensor, be sure the power is
switched "off" before adjustment.
Maximum Wattage: 2-150 W (bulb not included)
Working Temperature Range: -
Note: Fixture can be wall mounted or eave mounted.
Wall Mounted
Read notes section on page 4 for additional information about mounting location of fixture.
Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)
Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for
proper operation and to avoid the risk of electrical shock.
For eave mounted only:
Rotate the sensor head towards the back plate.
Back Plate
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Screw X2
Mounting Strap
#10/24 X1/4 in
4°F ~ 113°F
Controls
Page 1 / 5
Decorative cover Fixture Mounting Screw
Features:
1. Motion sensor: turns light ON automatically when
motion is detected and turns light OFF automatically
when motion stops.
2. Photocell keeps the light OFF during daylight hours.
Eave Mounted
Rotate the sensor head clockwise 180˚ so the controls face down.
Controls
Wire Nut X3 Gasket
Controls
