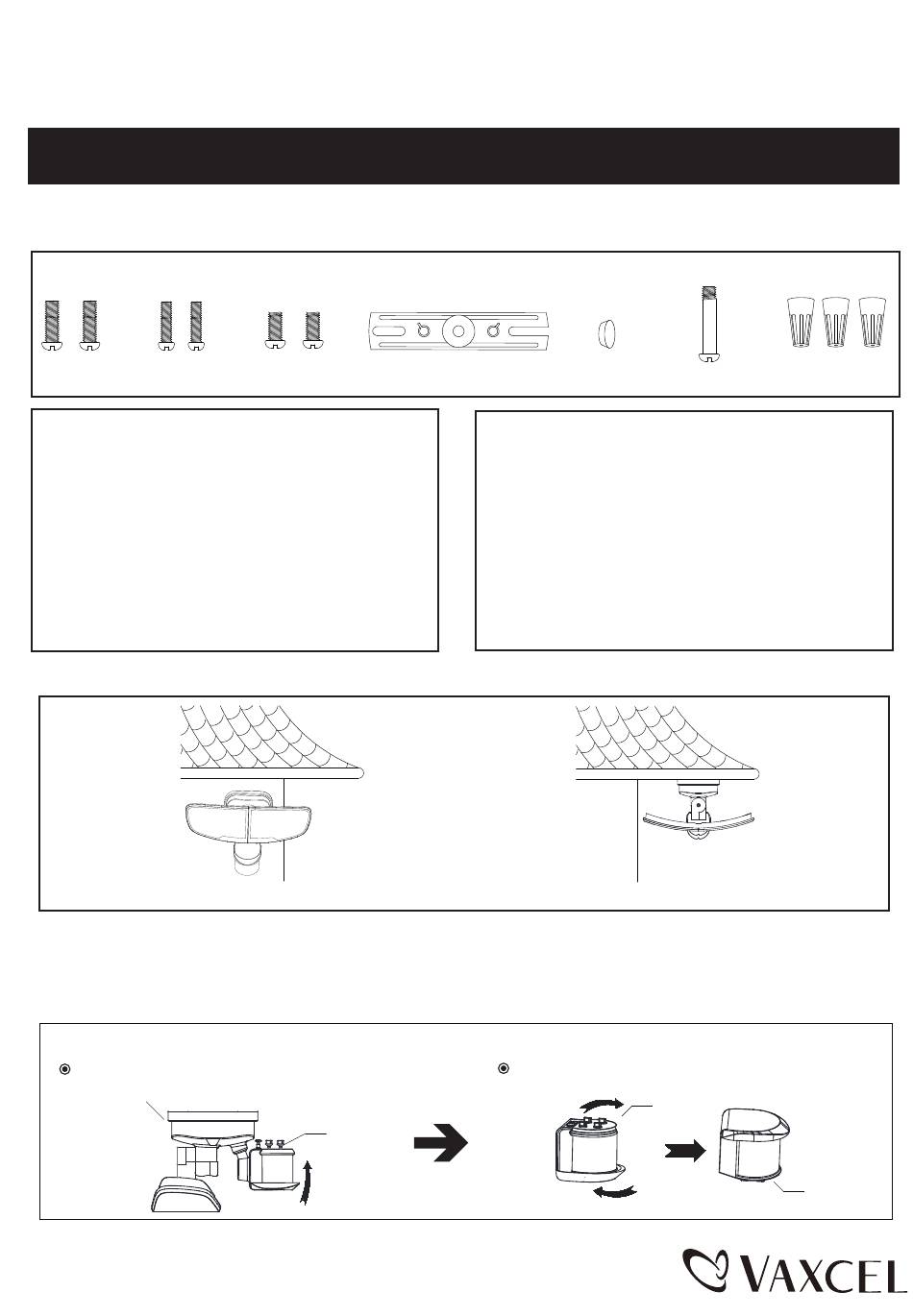

ASSEMBLY AND INSTALLATION
T0412 / T0413
WARNING:
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
Mounting Screw X2
Mounting Screw X2
#6/32 X1/2 in
#8/32X1/2 in
Important to Know:
1. If you are not familiar with state and local electrical
codes, it is recommended that you consult with a
qualified electrician.
2. This fixture requires a 120 VAC, 60 Hz power
source.
3. For general safety and to avoid any possible
damage to the sensor, be sure the power is
switched "off" before adjustment.
Maximum Wattage: 42 W
Working Temperature Range:
Note: Fixture can be wall mounted or eave mounted.
Wall Mounted
Read notes section on page.4 for additional information about mounting location of fixture.
Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation)
Before installing the light fixture under an eave, the sensor head must be rotated as shown in the next two steps for
proper operation and to avoid the risk of electrical shock.
For eave mounted only:
Swing the sensor head towards the mounting bracket.
Back Plate
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Mounting Screw X2
Mounting Strap
#10/24 X1/4 in
- 4°F ~ 113°F
Controls
Decorative cover
Features:
1. Energy saving LED fixture.
2. Motion sensor: turns light ON automatically when
motion is detected and turns light OFF automatically
when motion stops.
3. Photocell keeps the light OFF during daylight hours.
4. When in manual override mode, use wall switch
to change the function and perform the function
conversion.
Rotate the sensor head clockwise 180˚ so the controls face down.
Page 1 / 5
Fixture Mounting Screw
Eave Mounted
Controls
180412
Wire Connector X3
Controls

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T0412 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vaxcel T0412

Summary of Contents for Vaxcel T0412

  • Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS T0412 / T0413 WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.

  • Page 2: Installation Steps

    Back Plate Light Head FRONT Wire Connector(G) Decorative cover Outlet Box Mounting Strap Sensor Installation Steps Turn off the power at fuse or circuit box. 1. Install the mounting strap to the outlet box with the stamped word “FRONT” facing away from the outlet box, using two mounting screws that best fit the outlet box.

  • Page 3: Adjusting The Light Head

    Fig. 2 Fig. 3 Sensor Adjustment Lower For Short Coverage Sensitivity of Motion Sensor ● You can adjust the sensitivity of the motion sensor by using the “SENSITIVITY” selector located on the right side of the bottom surface of the sensor. (See Fig. 4) ●...

  • Page 4: Troubleshooting

    CUSTOM SETTING MODE (nighttime operation only): 1) Do not use power switch/wall switch ( photocell mode), the light to turn on at dusk and off at dawn automatically. Set motion-sensor operation to go on at a specified time. Turn the wall switch “OFF”, and turn it “ON” twice within 3 seconds.

  • Page 5: Year Limited Warranty

    #10/24 X1/4 in #6/32 X1/2 in Assembly Kit 5852MM (1 SET) For T0412 5853MM (1 SET) For T0413 5-YEAR LIMITED WARRANTY: All products are warranted to be free of defects in material and workmanship for five (5) years from date of purchase.
