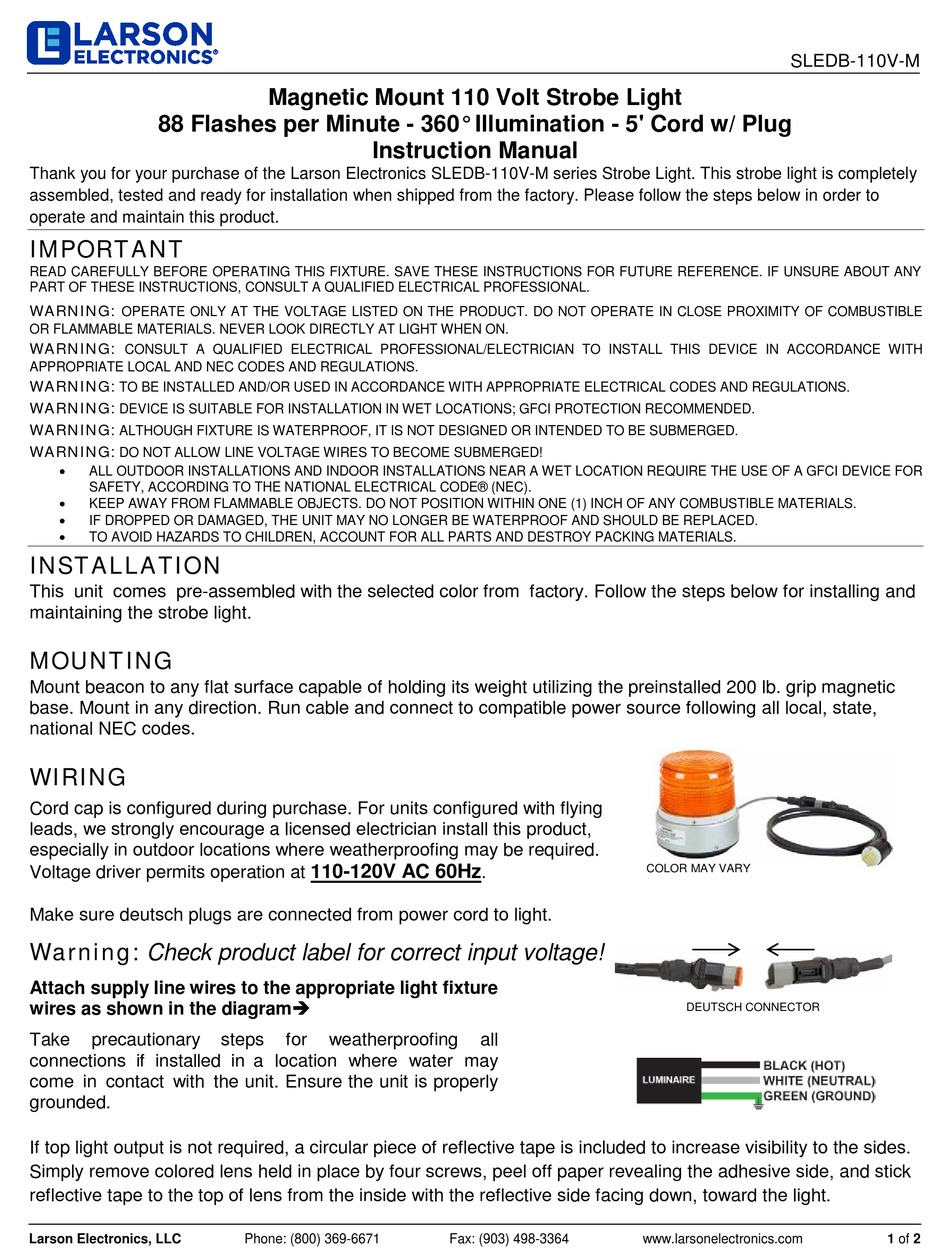

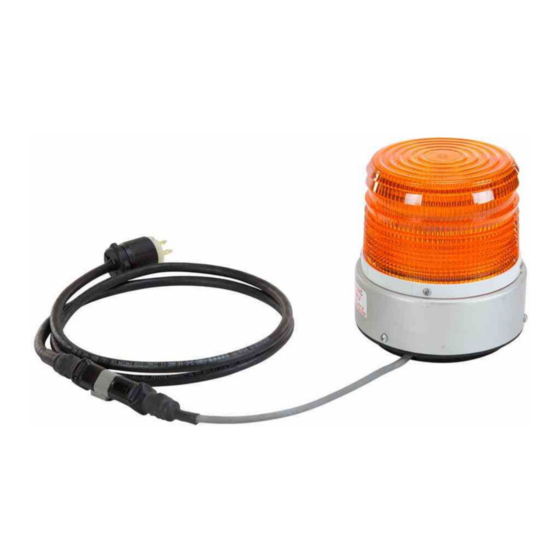

Larson Electronics SLEDB-110V-M Instruction Manual

88 Flashes per Minute - 360° Illumination - 5' Cord w/ Plug
Thank you for your purchase of the Larson Electronics SLEDB-110V-M series Strobe Light. This strobe light is completely
assembled, tested and ready for installation when shipped from the factory. Please follow the steps below in order to
operate and maintain this product.

IMPORTANT

READ CAREFULLY BEFORE OPERATING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF UNSURE ABOUT ANY
PART OF THESE INSTRUCTIONS, CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL.
WARNING:
OPERATE ONLY AT THE VOLTAGE LISTED ON THE PRODUCT. DO NOT OPERATE IN CLOSE PROXIMITY OF COMBUSTIBLE
OR FLAMMABLE MATERIALS. NEVER LOOK DIRECTLY AT LIGHT WHEN ON.
WARNING:
CONSULT A QUALIFIED ELECTRICAL PROFESSIONAL/ELECTRICIAN TO INSTALL THIS DEVICE IN ACCORDANCE WITH
APPROPRIATE LOCAL AND NEC CODES AND REGULATIONS.
WARNING:
TO BE INSTALLED AND/OR USED IN ACCORDANCE WITH APPROPRIATE ELECTRICAL CODES AND REGULATIONS.
WARNING:
DEVICE IS SUITABLE FOR INSTALLATION IN WET LOCATIONS; GFCI PROTECTION RECOMMENDED.
WARNING:
ALTHOUGH FIXTURE IS WATERPROOF, IT IS NOT DESIGNED OR INTENDED TO BE SUBMERGED.
WARNING:
DO NOT ALLOW LINE VOLTAGE WIRES TO BECOME SUBMERGED!
•
ALL OUTDOOR INSTALLATIONS AND INDOOR INSTALLATIONS NEAR A WET LOCATION REQUIRE THE USE OF A GFCI DEVICE FOR
SAFETY, ACCORDING TO THE NATIONAL ELECTRICAL CODE® (NEC).
•
KEEP AWAY FROM FLAMMABLE OBJECTS. DO NOT POSITION WITHIN ONE (1) INCH OF ANY COMBUSTIBLE MATERIALS.
•
IF DROPPED OR DAMAGED, THE UNIT MAY NO LONGER BE WATERPROOF AND SHOULD BE REPLACED.
•
TO AVOID HAZARDS TO CHILDREN, ACCOUNT FOR ALL PARTS AND DESTROY PACKING MATERIALS.

INSTALLATION

This unit comes pre-assembled with the selected color from factory. Follow the steps below for installing and
maintaining the strobe light.

MOUNTING

Mount beacon to any flat surface capable of holding its weight utilizing the preinstalled 200 lb. grip magnetic
base. Mount in any direction. Run cable and connect to compatible power source following all local, state,
national NEC codes.

WIRING

Cord cap is configured during purchase. For units configured with flying
leads, we strongly encourage a licensed electrician install this product,
especially in outdoor locations where weatherproofing may be required.
Voltage driver permits operation at
Make sure deutsch plugs are connected from power cord to light.
Warning: Check product label for correct input voltage!
Attach supply line wires to the appropriate light fixture
wires as shown in the diagram
Take precautionary
connections if installed in a location where water may
come in contact with the unit. Ensure the unit is properly
grounded.
If top light output is not required, a circular piece of reflective tape is included to increase visibility to the sides.
Simply remove colored lens held in place by four screws, peel off paper revealing the adhesive side, and stick
reflective tape to the top of lens from the inside with the reflective side facing down, toward the light.
Larson Electronics, LLC
Magnetic Mount 110 Volt Strobe Light
Instruction Manual
110-120V AC 60Hz
steps for weatherproofing
Phone: (800) 369-6671
.
all
Fax: (903) 498-3364
SLEDB-110V-M
COLOR MAY VARY
DEUTSCH CONNECTOR
www.larsonelectronics.com 1 of 2
