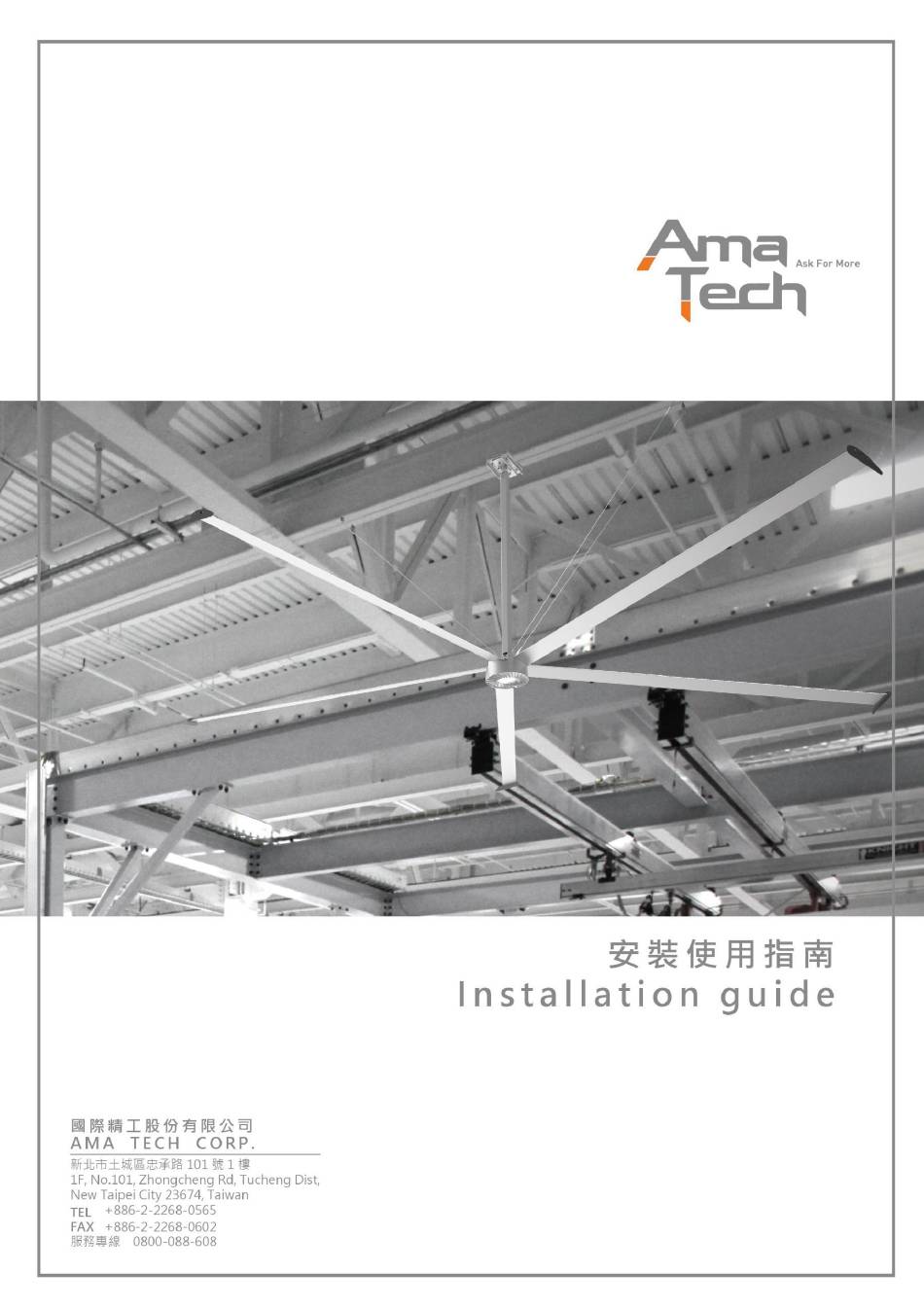

- Page 2 Installation Guide Type/Model to be installed: Helicopter Fan AH-5 Helicopter Fan AH-6 Helicopter Fan AH-7...
-
Page 3: Table Of Contents
Contents Important Safety Instruction: Please read and save this instruction .......... 3 Specifications of Helicopter Fan ....................5 Pre-Installation Components Inspection (1) ................6 Pre-Installation Components Inspection(2) ................7 Pre-Installation Components Inspection (3) ................8 Pre-Installation Components Inspection (4) ................9 Required Tools: ......................... -
Page 4: Important Safety Instruction: Please Read And Save This Instruction
Important Safety Instruction: Please read and save this instruction For reducing the risk of fire, electric shock or personal injury, please abide by the following points: ATTENTION: Installation and wire connection must be operated by qualified personnel in accordance with all proper regulations and standards. ATTENTION: When cutting or drilling ceiling, please do not damage wire and other hidden water piping and circuits of appliance. - Page 5 installation. ATTENTION: When fan is installed on GFCI (Ground Fault Circuit Interrupter) protective branch circuit, the fan can be used under humid environment. WARNING: This circuit is not suitable for persons (including children) with reduced physical, sensory or mental capabilities or lack of relevant experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way by those who are responsible for their safety.
-
Page 6: Specifications Of Helicopter Fan
Specifications of Helicopter Fan Fan Specifications: Specifications Parameters Model AH-7 AH-6 AH-5 7.15 6.15 5.15 Fan Diameter (M) 25/55 25/60 25/75 Min/Max Speed (RPM) 0.5/3.8A 0.46/2.8A 0.43/2.0A Load Current (A) 3-Phase Voltage (V) 1300 1000 Max Affected Area (m 14900... -
Page 7: Pre-Installation Components Inspection (1)
Pre-Installation Components Inspection (1) Inspect Components: ATTENTION: Before hanging fan, please do not dismantle protection package of fan unit. ATTENTION: If you ordered multiple fans, please ensure that the all components of every fan are put together! The following diagram is not zoomed in/out according to scale. All boxes should have stickers, in order to show the packed contents. -
Page 8: Pre-Installation Components Inspection(2)
Pre-Installation Components Inspection(2) 3.Other Components Box-1 Mounting Clamp*2 Universal Mount*1 Extension*1 Guy Wire Plate*2 Water-proof Cap*1 Winglet*5... -
Page 9: Pre-Installation Components Inspection (3)
Pre-Installation Components Inspection (3) 3.Other Components Box-2 Hex Bolt: M12*60 (4 pieces);M12*100 (2 pieces) Hex Socket Head Bolt Hex Bolt (Nylok): Self-tapping Screw Hex Socket Head Bolt (M12): (M4): M12*60 (10 pieces) (M12): M12*100 (2 pieces) M4*20 (10 pieces) M12*110 (2 pieces) Nylon Hex Lock Nut: Wire Rope Clamp: Turn Buckle: 3/8 (4 pieces) -
Page 10: Pre-Installation Components Inspection (4)
Pre-Installation Components Inspection (4) 4. Controller Units Box Total Weight: 45 kg (Gross Weight: Fan Unit + Components) Required Tools: Mechanical Installation Appliance Installation Standard and Metric Wrench Kit Phillips Screwdriver and Flathead Screwdriver Standard and Metric Screw and Ratchet Kit 10- 14 AWG Wire Stripper Standard and Metric General Wrench Kit Medium Pliers... -
Page 11: Installation Structure: I-Beam (Standard)
(1) Installation Structure: I-Beam (Standard) Required Components: Mounting Clamp*2, Universal Mount*1, Extension*1, Hex Bolt (M12*60*4 pieces), Hex Bolt (M12*100*2 pieces), Nylon Hex Lock Nuts, Flat Washers, Spring Washers (Select according to site specification) Installing Steps: (1)Attach the Extension to the bottom of the Universal Mount, then pre-tighten the Hex Bolts (M12*100*2 pieces). -
Page 12: Installation Structure: Square Steel Beam (Optional)
(1) Installation Structure: Square Steel Beam (Optional) Required Components: 2-Piece Type Mounting Clamp*1, Universal Mount*1, Extension*1, Threaded Rods, Flat Washers, Spring Washers, Nylon Hex Lock Nuts. (Select according to site specification) Installing Steps: (1) Attach the Extension to the bottom of the Universal Mount, then pre-tighten the Hex Socket Head Bolts (M12*100*2 pieces). -
Page 13: Installation Structure: Cement Beam (Optional)
(1) Installation Structure: Cement Beam (Optional) Required Components: L Type Bracket*2, Universal Mount*1, Extension*1, Expansion Bolts, Flat Washers, Spring Washers, Nylon HexLock Nuts, Hex Bolts. (Select according to site specification) Installing Steps: (1) Attach the Extension to the bottom of the Universal Mount, then pre-tighten the Hex Socket Head Bolts (M12*100*2 pieces). -
Page 14: Installation Structure: Round Steel Beam (Optional)
(1) Installation Structure: Round Steel Beam (Optional) Required Components: U Type Fixing Ring*3, Universal Mount*1, Extension*1, Flat Washers, Spring Washers, Nylon HexLock Nuts. (Select according to site specification) Installing Steps: (1) Attach the Extension to the bottom of the Universal Mount, then pre-tighten the Hex Socket Head Bolts (M12*100*2 pieces). -
Page 15: Installing Main Machine: Extension, Fan Unit
(2) Installing Main Machine: Extension, Fan Unit Required Components: Extension*1, Guy Wire Plate*2, Fan Unit*1, Hex Socket Head Bolt (M12*80*4 pieces), (M8*16*4 pieces), Hex Nut(M12*10*4 pieces), Turn Buckle(3/8*4 pieces), Wire Rope Clamp (3/16*18 pieces), I-Beam Clamp (4 pieces). Installing Steps: (1) Position the Universal Mount under I-Beam, Square Steel Beam, Cement Beam and Round Steel Beam. (Overhead operation) (2) Position the Extension to bottom of the Universal Mount, put washers on both sides, insert Hex Socket Head Bolts and tighten Hex Nuts. -
Page 16: Installing Fan Blades: Installation Of Fan Blades
(3) Installing Fan Blades: Installation of Fan Blades Required Components: Fan Blade*5, winglet*5, Aluminum Mounting Clamp*5, Clamp Washer*5, Self-Tapping Screw (M4*20*10 pieces) Installing Steps: Tighten fan blades to airfoils with screws, torque to 3.5 NM, (A). Assemble them with fan unit by overhead operation (B). -
Page 17: Installing Cables: Connect To Main Machine, Lay Out Control System Circuit
(4) Installing Cables: Connect to Main Machine, Lay out Control System Circuit Required Components: Cables, Cable Clamps, Electrical Tape, European Style Male/Female Terminals Installing Steps: When stripping cable, do not cut the copper wire, connect European Style Male/Female Terminals based on corresponding cable colors on the Main Machine. -
Page 18: Installing Control System: Preparation, Installation And Test
(5) Installing Control System: Preparation, Installation and Test Required Components: Controller Box, Level, Electrical Driller, Multimeter Installing Steps: (1) Use key to open control system, install assembled components, fix control system on the wall, use level to measure levelness, mark the hole positions, use driller to make holes. (2) Fix control system on the wall, cables shall be stripped and connected to control system, and connect cables to control system according to corresponding circuit colors. - Page 19 ✓ Description Description of Main Circuit Terminal Connect to Working Frequency Power Supply Connect to Motor Connect to Braking Resistor (Built-in Braking Unit in B Frame ) Grounding Terminal Notes: There are no built-in braking units in Frame A, and no “+/P” and “PR” terminals. ✓...
- Page 20 Trouble Codes of Variable Frequency Drive: Code Displayed Content Symptoms Solution on the Screen Power supply voltage is Supply with normal power Cut off reset switch Reset function RES“on” Confirm to connect operator to ERROR Operator loose contact Main Machine with Main Machine Replace variable frequency Trouble of internal circuit...
-
Page 21: Arranging The Site Environment: Clean Environment
When this abnormal warning often happens, please sent it to ROM trouble ROM abnormality manufacture for inspecting and repairing 1. Capacity of variable Replace with variable frequency drive and motor frequency drive and motor is not enough with big capacity 2. -
Page 22: Operation Instruction
Operation Instruction Before operating equipment, please carefully read product manual, and remove obstruction in operation zone to ensure there is enough safe distance for fan running. WARNING: Before maintaining and repairing any appliance and fan, please ensure to turn off power, and operate by professional personnel to avoid injury caused by electrical shock. -
Page 23: Warranty And Maintenance Terms Of New Product
Warranty and Maintenance Terms of New Product 10 years warranty for motor, installation fee is extra 2 years warranty for entire machine, permanent maintenance Maintenance fee would be collected at discretion This Warranty only covers maintenance or replacement of defective Products within Warranty Period. AmaTeck has rights to modify and re-explain following policies. - Page 24 Maintenance Service 1.1 Package of Returned Products: Please ensure package of all equipment and components is correct. 1.2 Maintenance and Repair: AmaTech shall not collect any fee for Products within New Products Warranty Period (1 year). 1.3.1 AmaTech will repair Products at the end of Warranty Period or under conditions of damage not covered by the Warranty.
