Connect the speakers and Lifestyle
Once you have selected locations for your speakers and music center, connect the system.
Connecting the Jewel Cube
1. Insert the connector of each speaker cable fully into the jack on the rear of each speaker
(Figure 4). Match the ridge of the connector to the notch at the top of the jack.
2. Connect each 20-foot (6.1 m) cable to the corresponding left or right green jack on the
Acoustimass module. Speaker cables have green connectors at one end, with L (left)
and R (right) molded into the connectors.
To lengthen the cable, connect speaker wire with male phono (RCA) plugs on each end to
your supplied speaker cable. Use a female-to-female adapter ("barrel" connector). Or, splice
2
in 18-gauge (.75 mm ) or thicker cord (connecting + to + and – to –). To purchase extension
wire, see your dealer, electronics store, or call Bose
Connecting the Acoustimass module to the Lifestyle
Connect the Acoustimass module to the music center with the audio input cable (Figure 5).
1. Plug the small black multi-pin connector into the jack marked SPEAKER ZONE 1 on the
back of the music center.
2. Insert the right-angle multi-pin connector on the other end of the audio input cable into
the AUDIO INPUT jack on the Acoustimass module. Align the connector at the angle
shown in Figure 5.
Note: Be sure that each connector is inserted completely into each jack.
3. Extend the audio input cable as much as possible, since it includes an antenna for the
remote control.
For information on connecting zone 2, see "Using two listening zones" on pages 19-20.
Black connector into
SPEAKER ZONE 1
Power pack
AM178934_09_V.pdf
speakers to the Acoustimass
TM
®
customer service.
Right
Right-angle connector speaker
into AUDIO INPUT
AUDIO
INPUT
RIGHT
OUTPUTS
TO
CUBE
SPEAKERS
LEFT
OFF
POWER
ON
Audio input cable
L R L
TAPE IN TAPE OUT
Power jack
music center
®
®
music center
®
Left
speaker
R
L
Power
switch
Power jack
R
October 29, 2001
Setting Up
CAUTION:
Make sure all components of
your system are unplugged
from the AC power (mains)
module
source before you begin
connecting them.

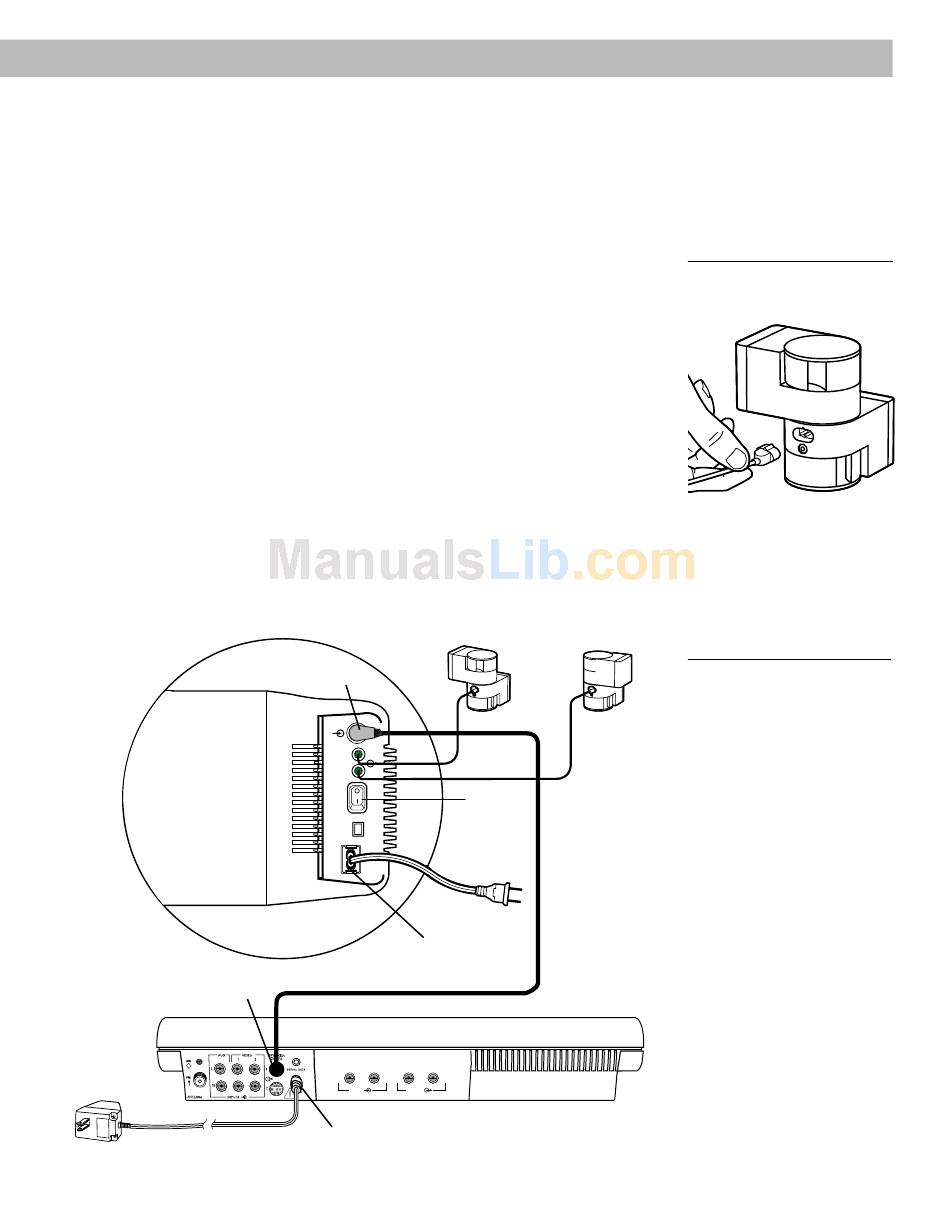

Figure 4
Speaker cable connection to the
Jewel Cube speaker
Figure 5
Connecting the speakers and the
music center
7
