Summary of Contents for Sun Gold Power ARC-200

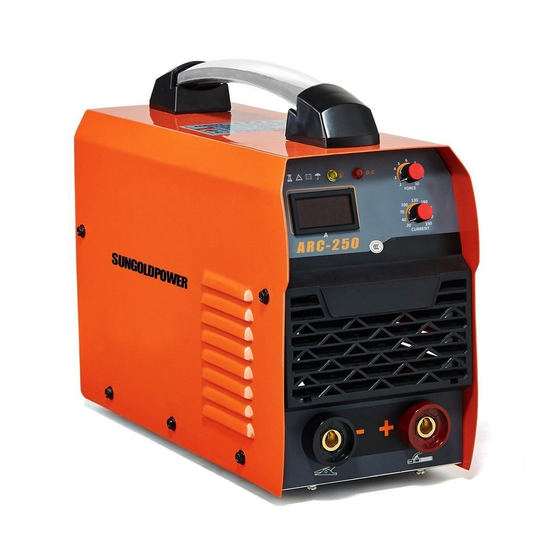

- Page 1 Sun Gold Power Co.,Ltd www.sungoldpower.com USER’S MANUAL MODEL: ARC-/200/250...
-
Page 2: Table Of Contents
Sun Gold Power Co.,Ltd www.sungoldpower.com 1. Safety warning ………………………………………………………………………………. 1 2．Advantage …………………………………………………………………………………….. 2 3. Main technique data …………………………………………………………………………… 2 4. Electric block diagram ..………………………………………………………………………… 3 5. Operation control and description …………………………………………………………….. 3 6. Installation and operation ………………………………………………………………………. 4 7. Caution …………………………………………………………………………………………… 5 8. -
Page 3: Safety Warning
Sun Gold Power Co.,Ltd www.sungoldpower.com 1．Safety warning ! Welding is dangerous, and may cause damage to you and others, so take good protection while welding. For details, please refer to the operator safety guidelines in conformity with the accident prevention requirements of the manufacturer. -
Page 4: 2．Advantage
Sun Gold Power Co.,Ltd www.sungoldpower.com Hot workpiece may cause serious scald ! ● Do no touch hot workpiece with bare hands ● Cooling is needed during continuous use of the welding torch. Magnetic field influence heart pacemaker ! ● The user of heart pacemaker should keep away from the welding spot before going to consult the doctor. -
Page 5: Electric Block Diagram
Sun Gold Power Co.,Ltd www.sungoldpower.com 3． Main technique data: ARC-200 ARC-250 Rated input voltage（V） AC110V±5%， Two phase AC220V±5%,50/60Hz 110V 220V 110V 220V Rated input power（KVA） Rated input current（A） Output current（A） 20-200 20-250 No-load voltage（V） Rated duty cycle（%） Efficiency（%） Power factor 0.93... -
Page 6: Operation Control And Description
Sun Gold Power Co.,Ltd www.sungoldpower.com 5. Operation control and description: Front panel (picture 1): (1) output anode: output anode is connected with the electrode holder (2) output cathode: output cathode is connected with the workpiece (3) current adjustment: user could adjust the output current by it... -
Page 7: Installation And Operation
Sun Gold Power Co.,Ltd www.sungoldpower.com 6. Installation and operation: Attention: Please install the machine strictly according to the following steps ! The installation must be operated when the power is switched off ! The protection grade of the machine is IP21, so avoid to use the machine in the rain ! 6.1 Installation:... -
Page 8: Maintenance
Sun Gold Power Co.,Ltd www.sungoldpower.com 7.1 Working environment (1) Welding should be carried out in dry environment with its humidity of 90% or less. (2) The temperature of working environment should be between -10℃ and +40℃. (3) Avoid working in the open air unless sheltered from sunlight and rain. Keep it dry anytime and do not place it on wet ground or in puddles. -
Page 9: Trouble Shooting
Sun Gold Power Co.,Ltd www.sungoldpower.com (1) Check the circuit connection inside the machine regularly, if the wire joint or components is rusty or loose, sand the rust and tighten the joint. (2) Keep hand, hair, and tools away from the live parts, for example fan, to avoid injury. - Page 10 Sun Gold Power Co.,Ltd www.sungoldpower.com polarity of output cable. Note: we are improving the products all the time, some parts of this manual may be changed in future except the function and operation, please be understanding.
