MIG-200

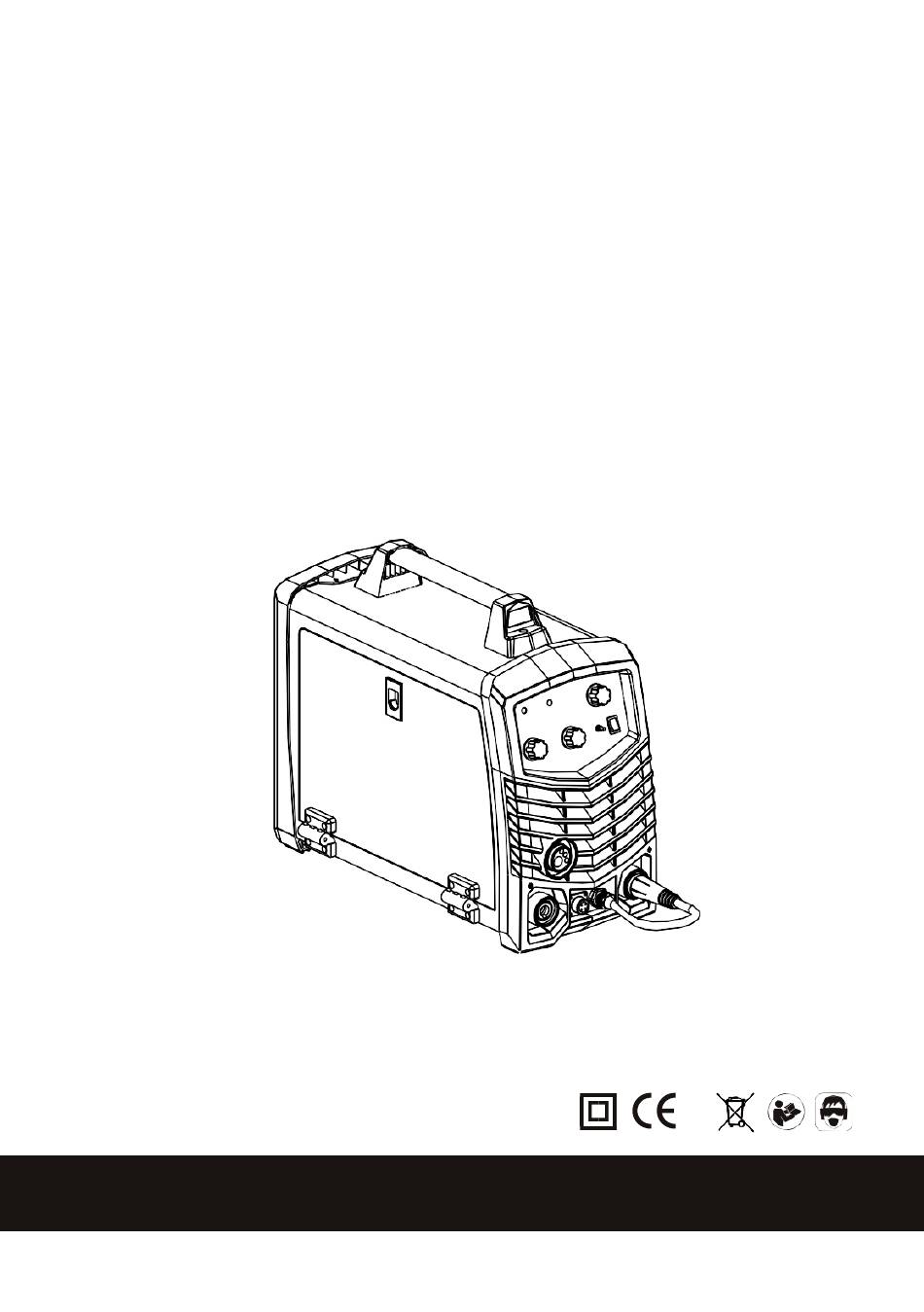

OWNER'S MANUAL
AK-MIG/MMA 200A BIVOLT
Please read instruction manual carefully and retain for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AK-MIG/MMA 200A BIVOLT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sun Gold Power AK-MIG/MMA 200A BIVOLT

  • Page 1 MIG-200 OWNER’S MANUAL AK-MIG/MMA 200A BIVOLT Please read instruction manual carefully and retain for future reference...
  • Page 2: Table Of Contents

    www.sungoldpower.com MIG-200 Table of Contents Safety .................................. 2 General Description ............................. 4 Main Parameters ..............................5 Operation Control and Description ........................6 Installation Debugging and Operation ......................7 Caution ................................9 Maintenance ..............................10 Troubleshooting ..............................11 Exploded Drawing ............................13...
  • Page 3: Safety

    www.sungoldpower.com MIG-200 1. Safety Welding is dangerous, and may cause damage to you and others, so take good protection when welding. For details, please refer to the operator safety guidelines in conformity with the accident prevention requirements of the manufacturer. Professional training is needed before operating the machine.
  • Page 4 www.sungoldpower.com MIG-200 Hot work piece may cause severe scalding. ● Do not contact hot work piece with bare hands. ● Cooling is needed during continuous use of the welding torch. Magnetic fields affect cardiac pacemaker. ● Pacemaker users should be away from the welding spot before medical consultation. Moving parts may lead to personal injury.
  • Page 5: General Description

    www.sungoldpower.com MIG-200 2. General Description The MIG is a new inverter-based portable MIG welding machine with added MMA function. The MIG function allows you to weld with both Gas Shielded and Gas-less wire applications. Easy step-less adjustment of voltage and wire feed make for easy setting of welding parameters giving excel- lent welding results.
  • Page 6: Main Parameters

    MIG-200 3. Main Parameters Model AK-MIG/MMA 200A BIVOLT 1P AC 110V / 220V, 50/60Hz Rated Input Voltage (V) 110V 220V Rated Input Power (KVA) Rated Input Current (A) Rated Output Current & Voltage 120A/20V 100A/24V 200A/24V 160A/27.2V Output Current (A)
  • Page 7: Operation Control And Description

    www.sungoldpower.com MIG-200 4. Operation Control and Description ● ● Front panel Back panel 1. MMA welding current adjustment knob 12. Power switch 2. MIG Voltage adjustment knob 13. Power cable 3. Power LED 14. Gas in 4. Overheat LED 15. Ground screw 5.
  • Page 8: Installation Debugging And Operation

    www.sungoldpower.com MIG-200 5. Installation Debugging and Operation Warning Please install the machine strictly according to the following steps. The protection class of this machine is IP21S, so avoid using it in rain. Before using, please make sure the input voltage is in voltage range (200V-240V).
  • Page 9 www.sungoldpower.com MIG-200 5.3. MIG Installation 1) Select the MIG function with the MMA/MIG switch. 2) Connect the electrode holder to the Negative socket and tighten it. 3) Connect the earth clamp into the Positive socket and tighten it. 4) Plug the welding torch into the Torch socket on the front panel, and tighten it. IMPORTANT When connecting the torch, be sure to tighten the connection.
  • Page 10: Caution

    www.sungoldpower.com MIG-200 6. Caution 6.1 Working environment 1) The product shall be operated under dry environment with normal humidity under 90%. 2) The temperature of working environment should be between -10℃ and 40℃. 3) Avoid welding in the open air unless sheltered from sunlight and rain. Keep it dry anytime and do not place it on wet ground or in puddles.
  • Page 11: Maintenance

    www.sungoldpower.com MIG-200 7. Maintenance Warning This machine will produce electric and magnetic fields, so the operator should ensure proper protection and screening while using it. ● Earth leakage-circuit breaker should be used with this machine. ● During operation, DO NOT pull out or insert any plugs or cables. It can lead to fatal danger and cause dam- age to the machine.
  • Page 12: Troubleshooting

    www.sungoldpower.com MIG-200 8. Troubleshooting Warning Experimentation and careless maintenance may lead to more problems to the machine. This will make pro- fessional diagnosis and repair more difficult. When the machine is open, there may be exposed connections containing life-threatening voltages. Any direct or indirect touch will cause electric shock, and severe electric shock will lead to death.
  • Page 13 www.sungoldpower.com MIG-200 Malfunction Cause and Solution 1. Check the pressure arm on the wire feeder for proper pressure. 2. Check if the drive roll matches the wire size being used. 3. Check the contact tip of the welding torch for wear. Replace it and Welding current is unstable.
  • Page 14: Exploded Drawing

    www.sungoldpower.com MIG-200 9. Exploded Drawing 29 28 1. Plastic handle 13. Relay 25. Euro socket 2. Cover 14. Main PCB 26. Screwed union 3. Side door 15. Silicon bridge 27. Base 4. Hinge 16. Transformer 28. Fan 5. Hinge 17. Potentiometer 29.Grounding screw 6.
