Arlight BL-RF5B Manual

Контроллер BL-RF5B
(12/24V, 216/432W, ПДУ сенсор)

Brief Introduction:

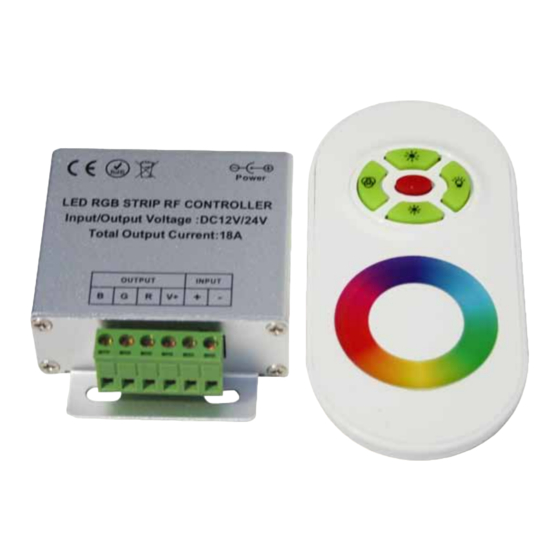

BL-RF5B is a multi-function Touching RGB LED
Controller. It adopts the most advanced PWM re-
omte control technology, can control all the full color
LED lighting with four lines three circuits (common
anode), with more than 640 000 combination colors
and 15 auto light changing modes. It widely applies
to RGB LED strip light, LED Module, etc.

Technical Parameters (remote control):

• Power supply:
• Cover Material:
• Fabrication processing:

Technical Parameters (controller):

• Working voltage:
• Output control:
• Control current:
• Connecting mathod:
• Wireless frequency:
• Receiving range:

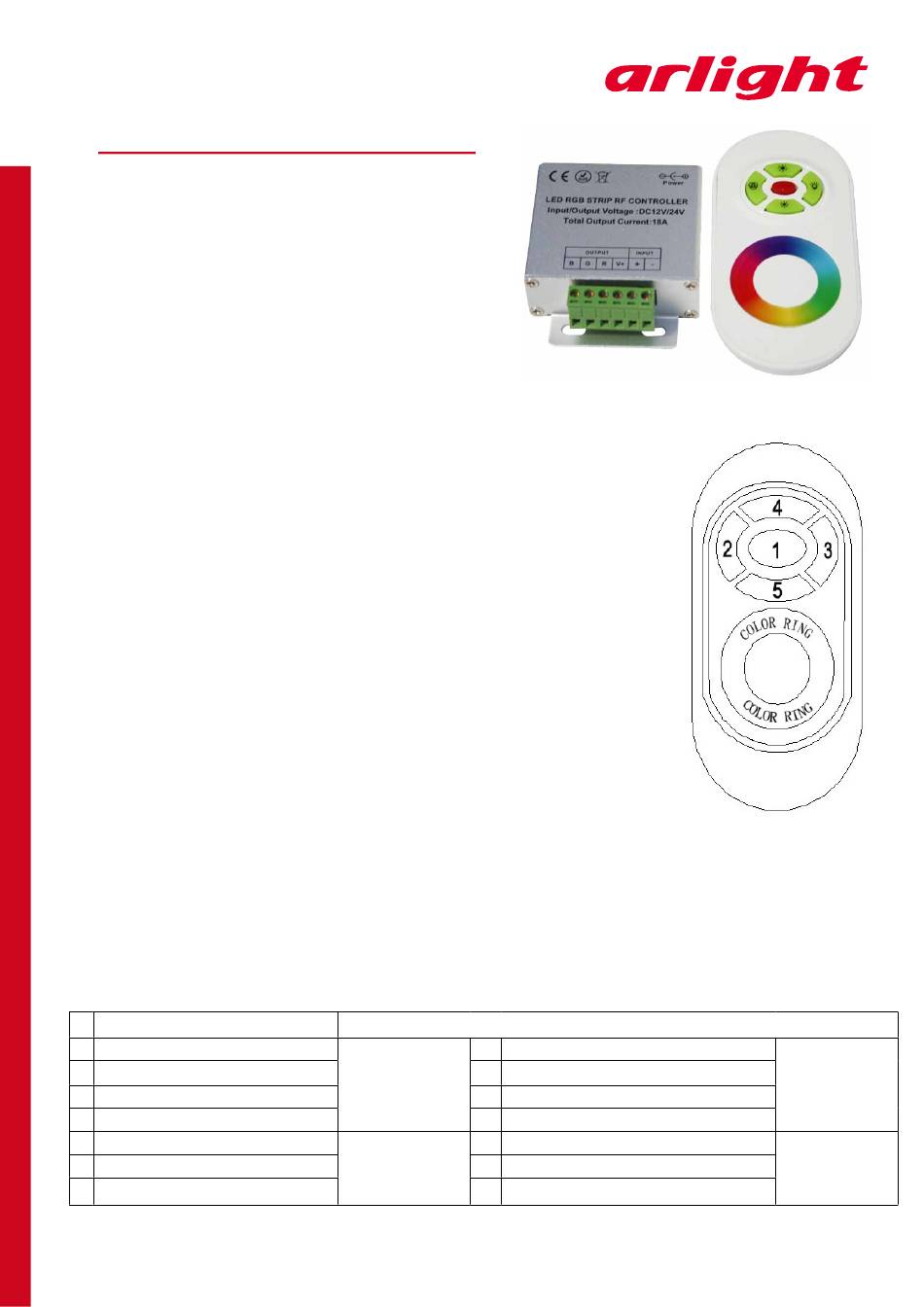

Functions of Keys:

Key 1: on/off
Key 2: light changing mode (15 modes)
Key 3: color light/white light switching mode
Key 4: turn up (brightness/speed)
Key 5: turn down (brightness/speed)

How to Use:

1. Press Key 1 to turn on/off in any state.
2. Press Key 2 to activate light changing mode, a new mode each press,15 modes in total.
3. Press Key 3 once to activate white light mode, changing brightness by pressing Key 4/Key 5.
Press Key 3 twice to activate color light mode, changing brightness by pressing Key 4/Key 5 or
changing light color by touching the color ring.
4. Resume fuction: The previous settings will be resumed while power on again
Feature chart for Key 2:
1 Auto Color Changing
2 3 colors jump to change
3 7 colors jump to change
4 3 colors jump to gradual change
5 7 colors jump to gradual change
6 red colors jumps to change
7 blue colors jumps to change
8 purple colors jumps to change
5. Matching code: Press Key 4 once within 3 seconds when power on again. The light will blink
3 times if matching is successful. Clearing Code Press Key 4 five times within 3 seconds when
power on again,.the light will blink 6 times if clearing is successful.
AAA battery x 3pcs
ABS
multicolour printing & UV varnish
DC12V/24V
3 circuits (R/G/B)
6A/circuit
common anode
433.92MHz
20meters
8 grades of brightness to adjust by pressing Key 4 or Key 5.
8 grades of
speed to adjust
by pressing Key4
or Key5
8 grades of
brightness to ad-
just by pressing
Key4 or Key5.
9 Green color jumps to change
10 Yellow color jumps to change
11 Cyan color jumps to change
12 White color jumps to change
13 Red/blue light twinkles alternately
14 Green/blue light twinkles alternately
15 Red/green light twinkles alternately
8 grades of
brightness
to adjust by
pressing Key4
or Key5.
8 grades of
speed to adjust
by pressing
Key4 or Key5.
