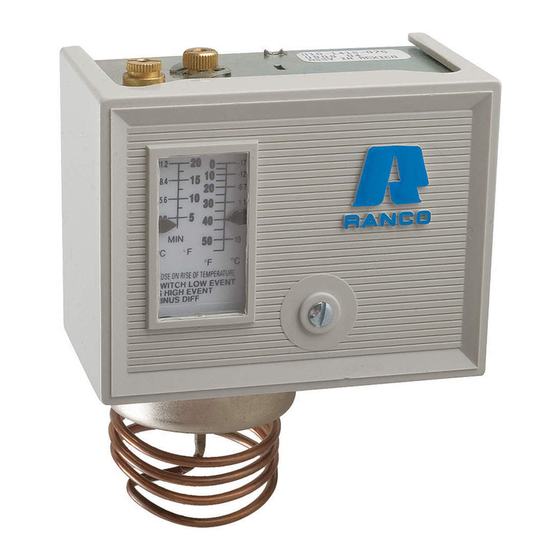

Single pressure control

Advertisement

Quick Links

DESCRIPTION/APPLICATION

RANCO commercial pressure controls are used for either
operating
or
protecting
conditioning systems. They are suitable for R12, R22, and R502
refrigerants and are available with either male flare or capillary flare
nut connections. Both low pressure (suction sensing) and high
pressure (discharge sensing) versions are available.
These controls, with NEMA 1 enclosures and snap action switches,
may be used in a variety of applications: direct control of motors
or compressors; with a contactor for pilot duty control; to control
solenoid valves. The electrical ratings inside the control cover must
not be exceeded.
O10 Single pole, single throw (SPST)
close (cut-in) on rise
open (cut-out) on drop
O11 Single pole, single throw (SPST)
open (cut-out) on rise
close (cut-in) on drop
O16 Single pole, double throw (SPDT)
2-3 close on rise, open on drop
2-1 close on drop, open on rise
O20 Double pole, single throw (DPST)
close (cut-in) on rise
open (cut-out) on drop
All O series are available in the automatic reset/cycling version.
Manual reset versions of the O16 are available.
3
DIFF
HIGH EVENT
35
12"
0
0
2
25
10
1
15
20
2
30
1
5
40
bar
PSI.
3
50
PSI.
bar
CLOSES ON PRESSURE RISE.
SWITCH LOW EVENT
IS HIGH EVENT
MINUS DIFF
NO!
commercial
refrigeration
2
L
L
3
DIFF
HIGH EVENT
35
12"
0
0
2
25
10
1
15
20
2
30
1
5
40
bar
PSI.
3
50
PSI.
bar
CLOSES ON PRESSURE RISE.
SWITCH LOW EVENT
IS HIGH EVENT
MINUS DIFF
NO!
SINGLE PRESSURE CONTROL
DIFFERENTIAL
ADJUSTMENT
SCREW
or
air
CW increases
CCW decreases
See p. 3

INSTALLATION

3
CAUTION:
To prevent possible electrical shock or equipment damage,
1
disconnect electrical power to unit before and during installation.
DO NOT restore electrical power to unit until the control is properly
T
installed and grounded. DO NOT locate the control in an explosive
atmosphere as a safety hazard can result due to possible spark
generation in the control.
T
Controls are not to be located in areas of extreme moisture,
dirt or dust, or in a corrosive or explosive atmosphere. These envi-
ronments can shorten control life.
MANUAL OPERATION (tripping switch)
3
DIFF
HIGH EVENT
35
12"
0
0
2
25
10
1
15
20
2
30
1
5
40
bar
PSI.
3
The switch can be manually operated by lifting
50
PSI.
bar
CLOSES ON PRESSURE RISE.
SWITCH LOW EVENT
IS HIGH EVENT
MINUS DIFF
DO NOT REMOVE the protective switch cover.
YES!
1
INSTALLATION DATA
O10/011/O16/O20
IMPORTANT NOTICE
the bellows to tabs as shown. Operating the
control at any other point WILL CAUSE
CONTROL DAMAGE AND VOID THE
WARRANTY.
RANGE
ADJUSTMENT
SCREW
CW lowers
CCW raises
See p. 3
COVER
SCREW

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the O10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ranco O10

  • Page 1 INSTALLATION DATA O10/011/O16/O20 SINGLE PRESSURE CONTROL DESCRIPTION/APPLICATION DIFFERENTIAL ADJUSTMENT RANCO commercial pressure controls are used for either SCREW operating protecting commercial refrigeration CW increases conditioning systems. They are suitable for R12, R22, and R502 RANGE CCW decreases refrigerants and are available with either male flare or capillary flare ADJUSTMENT See p.
  • Page 2 If the capillary or control is shaking or calibration may result. vibrating against the compressor vibration, work-hardening RANCO pressure controls can be mounted in any position, either vertically or horizontally, without affecting performance. The COMPRESSOR MOUNTING control can be mounted on an existing bracket, on the bracket Compressor provided, or can be flush-mounted without a bracket.
  • Page 3 CONTROL SETTINGS AND ADJUSTMENTS 8. Coil and secure any excess capillary to avoid possible ALL CONTROL SETTINGS are to be as specified by the equip- damage due to vibration. Capillary coils should be no less ment manufacturer and as required for the application. DO NOT than 2 inches in diameter (3 inches is recommended).
  • Page 4 Vacuum) Flare Flare Flare Nut Flare Nut Flare Nut Flare Nut Flare Flare Nut Flare Nut (12”) to 50 5 to 35 (20”) O10-1401 O10-1402 O10-1842 O16-557 Use O16 O16-120 O20-7002 O10-1831 10 to 40 (20”) O11-1799 O11-3099 O10-1483 O10-1093...
